Eaton

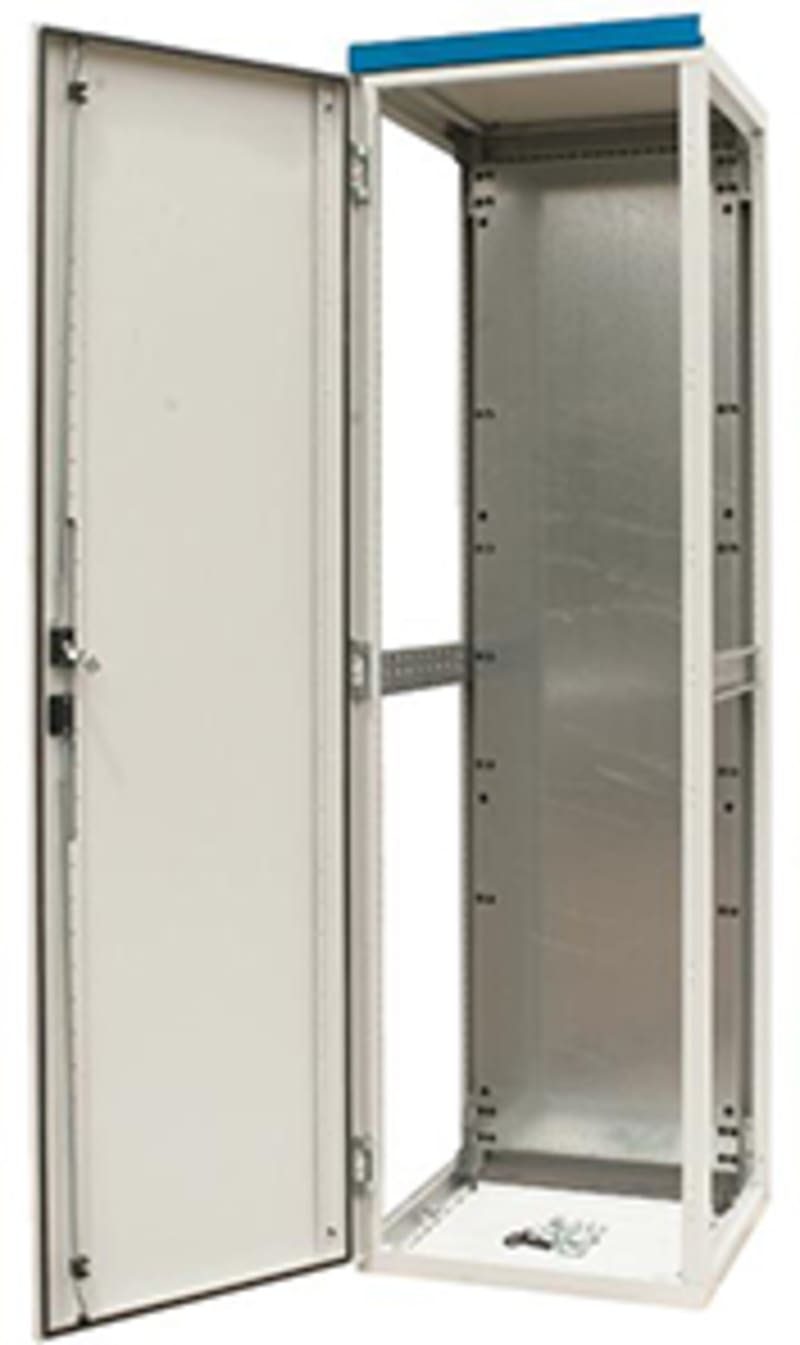

Cabinet H×W×D=1800X1000X300MM (XVTL-MP/BX/IC-10/3/18)
Part numberXVTL-MP/BX/IC-10/3/18EAN / GTIN4015081139729HS code8538.10
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton XVTL-MP/BX/IC-10/3/18 XVTL-MP/BX/IC-10/3/18.
Technical Specifications
- Manufacturer part number (MPN)
- XVTL-MP/BX/IC-10/3/18
- EAN / GTIN
- 4015081139729
- Sales unit
- pcs
- Eaton catalogue number
- 114572
- Depth
- 1000 mm
- Height
- 1800 mm
- Width
- 308.5 mm
- Weight
- 121 kg
- Compliances
- RoHS conform
- Certifications
- IEC/EN 60439-1; IEC/EN 62208; IEC/EN 60439-3
- Type
- Control centres XVTL
- Features
- Connectable; EMC-version
- Fitted with
- Screw M10: 50 x 106 A²s (base frame, main earthing); Mounting plate; M6 weld stud: 50 × 106 A²s (door); Taptite screw M6: 3.9 × 106 A²s (enclosure side plate, back plate)
- Frequency rating
- 50 Hz
- Pollution degree
- 3
- Surface finishing
- Phosphated; Painting, phosphated and polyester powder coating; Polyester powder coating; RAL 7035, light gray; Powder coating
- Degree of protection
- IP55; IP55 (with door and flange); IK10; 4X (NEMA)
- Rated impulse withstand voltage (Uimp)
- 6 kV
- Cable entry postion
- Various covers allow cable entry from above and/or below
- Grade material
- Sheet steel 2 mm
- Unit type
- Complete housing
- Voltage rating
- 415 V
- Admissible heat dissipation (ambient air temperature +35 °C) - max
- 484 W
- Admissible heat dissipation (NH-SE) - max
- 484 W
- Material quality
- Other
- Rated short-time withstand current (Icw)
- 65 kA
- Color
- Gray
- Cover/door type
- Folding handle with espagnolette lock; Three-point interlock; From width 1000 mm two doors; Door interlock can be fitted with profile cylinder; Outside-supported doors with hidden hinges; Can be removed from 90°
- Permissible load of the mounting plate according to IEC 62208 - max
- 4000 N
- Number of locks
- 1
- RAL-number
- 7035
- Rated insulation voltage (Ui)
- 690 V
- Rated peak withstand current
- 143 kA
- Material
- Sheet steel 2 mm; Steel
- Mounting method
- Wall fastening
- Overvoltage category
- IV
- Frequency rating of contacts
- 50 Hz (AC)
- Functions
- Combination enclosure
- Installation type
- Floor standing wall model
- Rated operation current (Ie)
- 2500 A
- Cover/door angle
- 120° door opening angle (single mounting); 120° door opening angle (combination mounting)
- Protection class
- I
- Installation site
- Indoor installation
- Relative humidity
- 50 % (at 40 °C)
- Surface treatment
- Painting, phosphated and polyester powder coating
- Number of covers/doors
- 2
- Suitable for
- Metrical mounting
- Permissible load of the enclosure according to IEC 62208 - max
- 5000 N
- Permissible load of the door(s) according to IEC 62208 - max
- 1000 N
- Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
- 415.808 W
- Number of connector holes
- 0
- Dimensions
- 1800×1000×300 mm
- Colour
- Grey
- With mounting plate
- Yes
- Number of doors
- 2
- Suitable for wall mounting
- Yes
- Pre-stamping
- No
- EMC-version
- Yes
- With glazed door
- No
- Couplable
- Yes
- Impact strength
- IK10
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- Yes
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- No
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 5000 N
- Max. permitted load of the door(s) according to IEC 62208
- 1000 N
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081139729
- SAP 1200283898
- Code 82252714
Product Documentation
Document preview: Cabinet HxBxD=1800x1000x300mm (XVTL-MP/BX/IC-10/3/18) — Specification Data Sheet (OEM)
