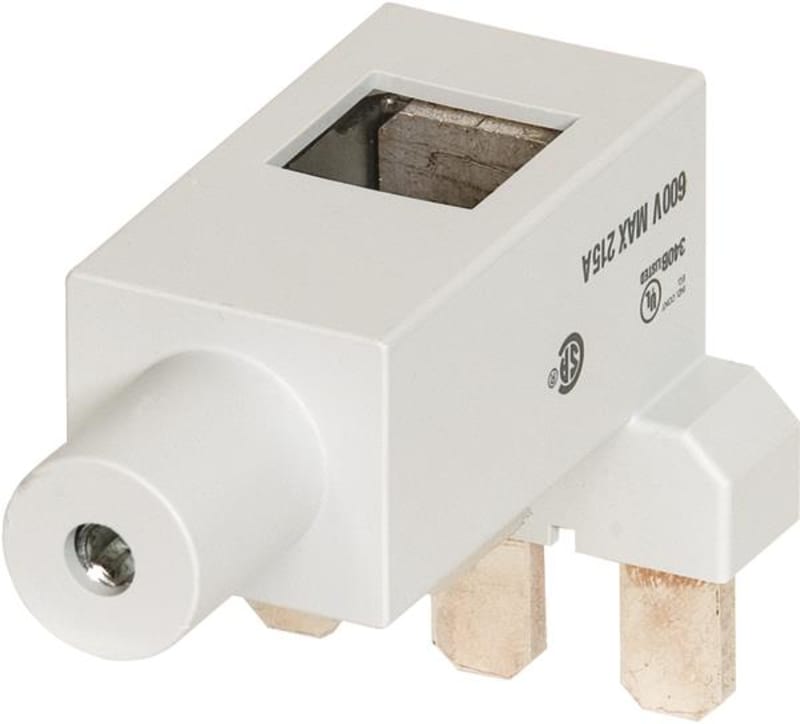

Parallellconnection DILM150-XP1

Eaton DILM150-XP1 Parallellkobling, DILM80 to DILM150.

Manufacturer part number (MPN)

DILM150-XP1

EAN / GTIN

4015082847692

Sales unit

pcs

Eaton catalogue number

284769

Depth

102 mm

Height

76 mm

Width

83 mm

Weight

0.957 kg

Certifications

CSA File No.: 012528; UL; CSA-C22.2 No. 14-05; UL File No.: E29096; CSA Class No.: 3211-03; CE; CSA; UL 508; IEC/EN 60947-4-1; UL Category Control No.: NLDX

Catalog Notes

AC1 current carrying capacity of the open contactor increases by a factor of 2.5

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Conventional thermal current Ith of main contacts (1-pole, open)

400 A

Equipment heat dissipation, current-dependent Pvid

37.8 W

Heat dissipation per pole, current-dependent Pvid

12.6 W

Rated operational current for specified heat dissipation (In)

400 A

Accessory/spare part type

Connecting bridge

Product category

Accessories

Protection

Protected against accidental contact in accordance to VDE 0106 part 100

Screw size

5 mm AF, Hexagon socket-head spanner, Terminal screw, Main cables

Terminal capacity

1 x (35 - 300) mm², stranded; 2 x (35 - 120) mm², stranded; 2 x (11 x 21 x 1) mm (Number of segments x width x thickness), Flat conductor

Tightening torque

14 Nm, Screw terminal

Type of accessory/spare part

Connecting bridge

Accessory

Yes

Spare part

No

Country of origin

Germany

HS Code

8538.90

• EAN 4015082847692
• SAP 1200236514
• Code 82234382
