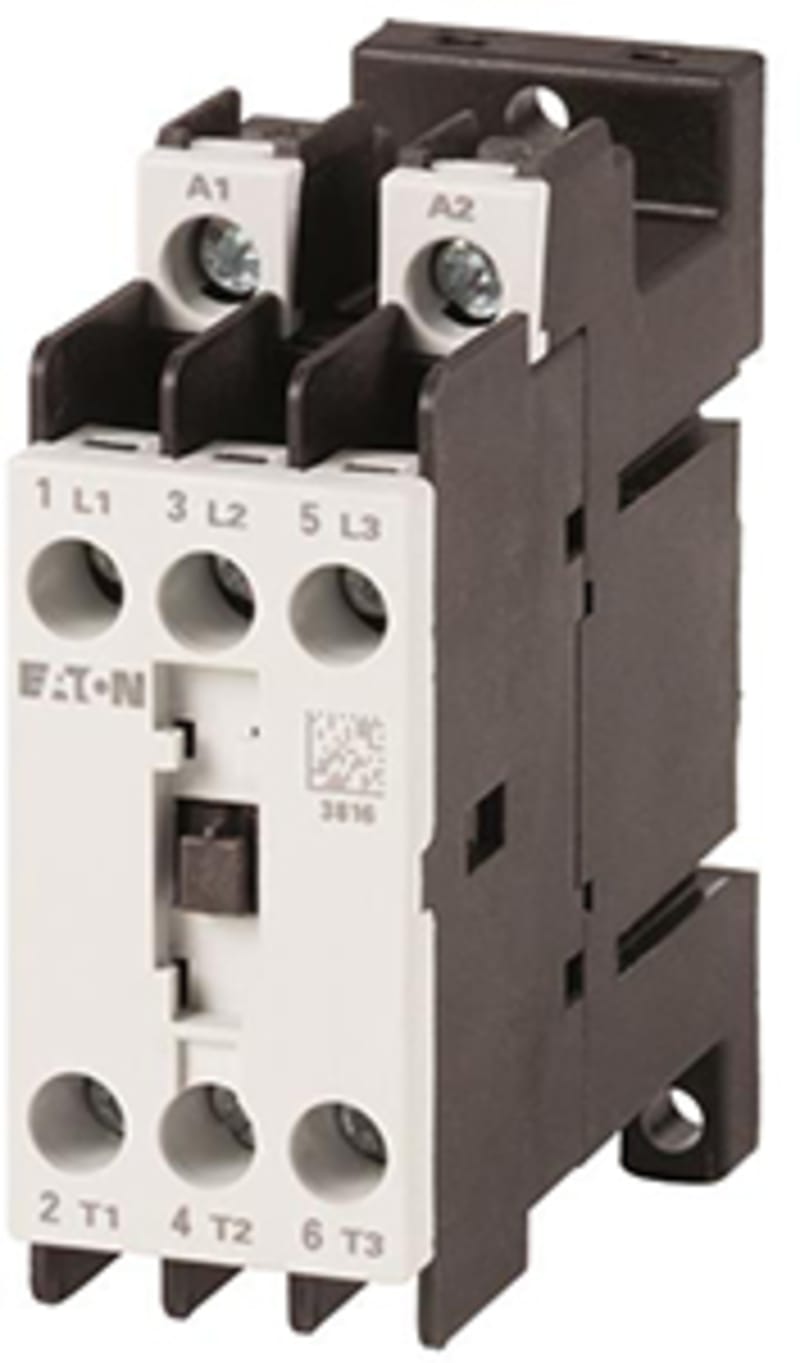

Auxiliary contactor DILAT-30(24V50/60HZ)

Eaton DILAT-30(24V50/60HZ) Auxiliary contactor, 3 N/O, AC.

Manufacturer part number (MPN)

DILAT-30(24V50/60HZ)

EAN / GTIN

4015081945030

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

197624

Depth

77.5 mm

Height

70.1 mm

Width

27 mm

Weight

0.175 kg

Certifications

IEC/EN 60947; VDE 0660

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

3

Number of contacts (normally open contacts)

3

Rated insulation voltage (Ui)

690 V

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

4 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

1.9 A

Rated operational current (Ie) at AC-15, 500 V

1.4 A

Rated operational voltage (Ue) at AC - max

690 V

Application

Contactor relays

Connection

Screw terminals

Connection to SmartWire-DT

No

Degree of protection

IP20

Lifespan, mechanical

10,000,000 Operations (AC operated)

Mounting method

DIN-rail/screw

Operating frequency

3600 Operations/h

Overvoltage category

III

Pollution degree

3

Product category

DILAT Contactor relays

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

6000 V AC

Voltage type

AC

Pick-up voltage

0.85 - 1.1 V AC x Uc; 0.85 - 1.1 V AC x Uc (voltage tolerance - dual frequency coil 50/60 Hz)

Power consumption, pick-up, 60 Hz

30 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Power consumption, sealing, 50 Hz

2 W, Dual-frequency coil in a cold state and 1.0 x Us; 6 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, sealing, 60 Hz

2 W, Dual-frequency coil in a cold state and 1.0 x Us; 6 VA, Dual-frequency coil in a cold state and 1.0 x Us

Rated control supply voltage (Us) at AC, 50 Hz - max

24 V

Rated control supply voltage (Us) at AC, 50 Hz - min

24 V

Rated control supply voltage (Us) at AC, 60 Hz - max

24 V

Rated control supply voltage (Us) at AC, 60 Hz - min

24 V

Switching time (AC operated, make contacts, closing delay) - max

25 ms

Switching time (AC operated, make contacts, closing delay) - min

20 ms

Switching time (AC operated, make contacts, opening delay) - max

13 ms

Switching time (AC operated, make contacts, opening delay) - min

9 ms

Screwdriver size

2, Terminal screw, Pozidriv screwdriver

Stripping length (main cable)

14 mm

Terminal capacity (flexible with ferrule)

2 x (0.75 - 2.5) mm²; 1 x (0.75 - 2.5) mm²

Terminal capacity (solid)

2 x (0.75 - 2.5) mm²; 1 x (0.75 - 2.5) mm²

Tightening torque

0.8 Nm, Screw terminals

HS Code

8536.90
