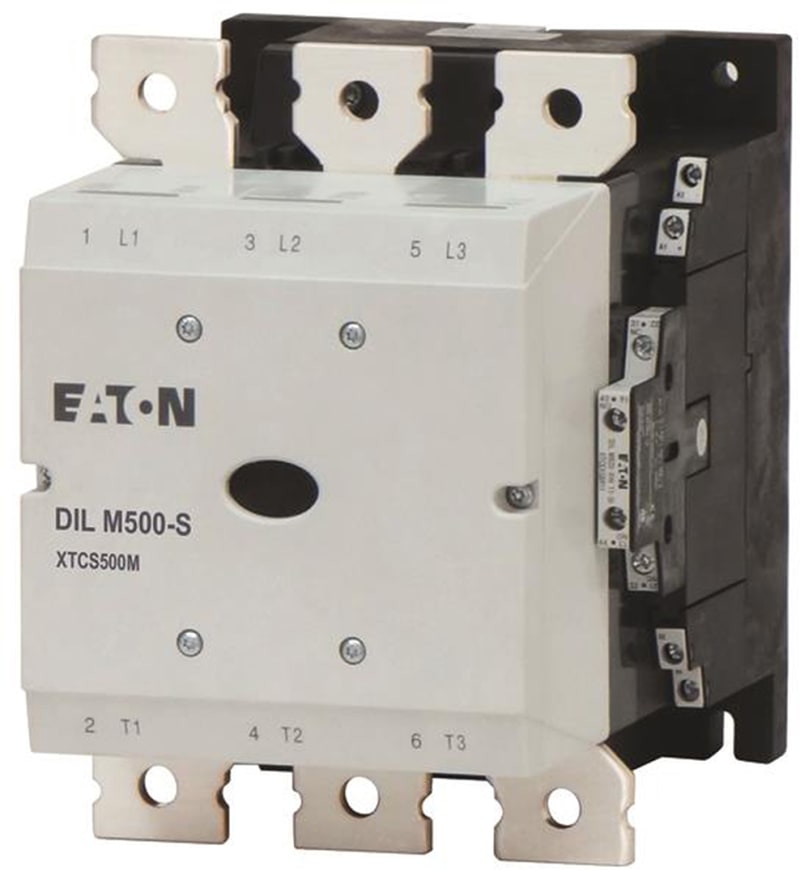

Contactor, DILM500-SIZE S/22 (DILM500-S/22(110-120V50/60HZ))

Eaton DILM500-S/22(110-120V50/60HZ) Contactor, 380 V 400 V 265 kW, 2 N/O, 2 NC, 110 - 120 V 50/60 Hz.

Manufacturer part number (MPN)

DILM500-S/22(110-120V50/60HZ)

EAN / GTIN

4015082741983

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

274198

Depth

216 mm

Height

219 mm

Width

160 mm

Weight

8.58 kg

Compliances

CE Marked

Conventional thermal current Ith (1-pole, enclosed)

1500 A

Conventional thermal current Ith (3-pole, enclosed)

600 A

Conventional thermal current Ith at 40°C (3-pole, open)

800 A

Conventional thermal current Ith at 50°C (3-pole, open)

715 A

Conventional thermal current Ith at 55°C (3-pole, open)

682 A

Conventional thermal current Ith at 60°C (3-pole, open)

650 A

Conventional thermal current Ith of main contacts (1-pole, open)

1625 A

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-40 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-40 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Number of auxiliary contacts (normally closed contacts)

2

Number of auxiliary contacts (normally open contacts)

2

Number of contacts (normally closed contacts)

2

Number of contacts (normally open contacts)

2

Equipment heat dissipation, current-dependent Pvid

0 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

19.33 W

Rated operational current for specified heat dissipation (In)

500 A

Static heat dissipation, non-current-dependent Pvs

4.6 W

Inrush current

Max. 30 x Ie (peak)

Rated breaking capacity at 1000 V

950 A

Rated breaking capacity at 220/230 V

5000 A

Rated breaking capacity at 380/400 V

5000 A

Rated breaking capacity at 500 V

5000 A

Rated breaking capacity at 660/690 V

5000 A

Rated insulation voltage (Ui)

1000 V

Rated making capacity (cos phi to IEC/EN 60947)

5500 A

Rated operational current (Ie)

307 A at up to 525 V (Individual compensation, three-phase capacitors, open); 177 A at 690 V (Individual compensation, three-phase capacitors, open)

Rated operational current (Ie) at AC-3

1000 V

95 A

Rated operational current (Ie) at AC-3, 220 V, 230 V

240 V

500 A

Rated operational current (Ie) at AC-3, 380 V, 400 V

415 V

500 A

Rated operational current (Ie) at AC-3

440 V

500 A

Rated operational current (Ie) at AC-3

500 V

500 A

Rated operational current (Ie) at AC-3, 660 V

690 V

325 A

Rated operational current (Ie) at AC-4

Rated operational current (Ie) at AC-4, 220 V, 230 V

240 V

360 A

Rated operational current (Ie) at AC-4

440 V

360 A

Rated operational current (Ie) at AC-4

500 V

360 A

Rated operational current (Ie) at AC-4, 660 V

690 V

260 A

Rated operational power at AC-3, 1000 V

50 Hz

132 kW

Rated operational power at AC-3, 240 V

50 Hz

170 kW

Rated operational power at AC-3, 380/400 V

50 Hz

250 kW

Rated operational power at AC-3, 415 V

50 Hz

290 kW

Rated operational power at AC-3, 440 V

50 Hz

315 kW

Rated operational power at AC-3, 500 V

50 Hz

355 kW

Rated operational power at AC-3, 690 V

50 Hz

300 kW

Rated operational power at AC-4, 1000 V

Rated operational power at AC-4, 220/230 V

50 Hz

112 kW

Rated operational power at AC-4, 240 V

50 Hz

122 kW

Rated operational power at AC-4, 415 V

50 Hz

216 kW

Rated operational power at AC-4, 440 V

50 Hz

229 kW

Rated operational power at AC-4, 500 V

Rated operational power at AC-4, 660/690 V

50 Hz

240 kW

Rated operational voltage (Ue) at AC - max

1000 V

Safe isolation

1000 V AC, Between coil and contacts, According to EN 61140

Special purpose rating of definite purpose rating

3900 A, LRA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 635 A, FLA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 520 A, FLA 600 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 3120 A, LRA 600 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA)

Accessories

Fitting options auxiliary contacts: on the side: 2 x DILM820-XHI11(V)-SI; 2 x DILM820-XHI11-SA

Application

Contactors for Motors

Connection

Screw terminals

Degree of protection

IP00

Electromagnetic compatibility

Designed for operation in industrial environments. Its use in residential environments may cause radio-frequency interference, requiring additional noise suppression.

Fitted with

Suppressor circuit in actuating electronics

Lifespan, electrical

100,000 Operations (at Condensor operation)

Lifespan, mechanical

7,000,000 Operations (AC operated)

Operating frequency

2000 mechanical Operations/h (AC operated); 200 Operations/h

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof with terminal shroud or terminal block, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Resistance

500 mΩ (Admissible transitional contact resistance - of the external control circuit device when actuating A11)

Shock resistance

10 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 8 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-3: Normal AC induction motors: starting, switch off during running; AC-4: Normal AC induction motors: starting, plugging, reversing, inching

Voltage type

AC

Drop-out voltage

AC operated: 0.2 x US max - 0.4 x US min

AC operated; AC operated

0.25 x US max - 0.6 x US min, AC operated

Duty factor

100 %

Pick-up voltage

0.85 - 1.1 V AC x Us

Power consumption

Control transformer with uk ≤ 10%

Power consumption, pick-up

50 Hz

715 VA, Pull-in power, Coil in a cold state and 1.0 x Us; 645 W, Pull-in power, Coil in a cold state and 1.0 x Us

Power consumption, pick-up

60 Hz

645 W, Pull-in power, Coil in a cold state and 1.0 x Us; 715 VA, Pull-in power, Coil in a cold state and 1.0 x Us

HS Code

8536.90
