Eaton

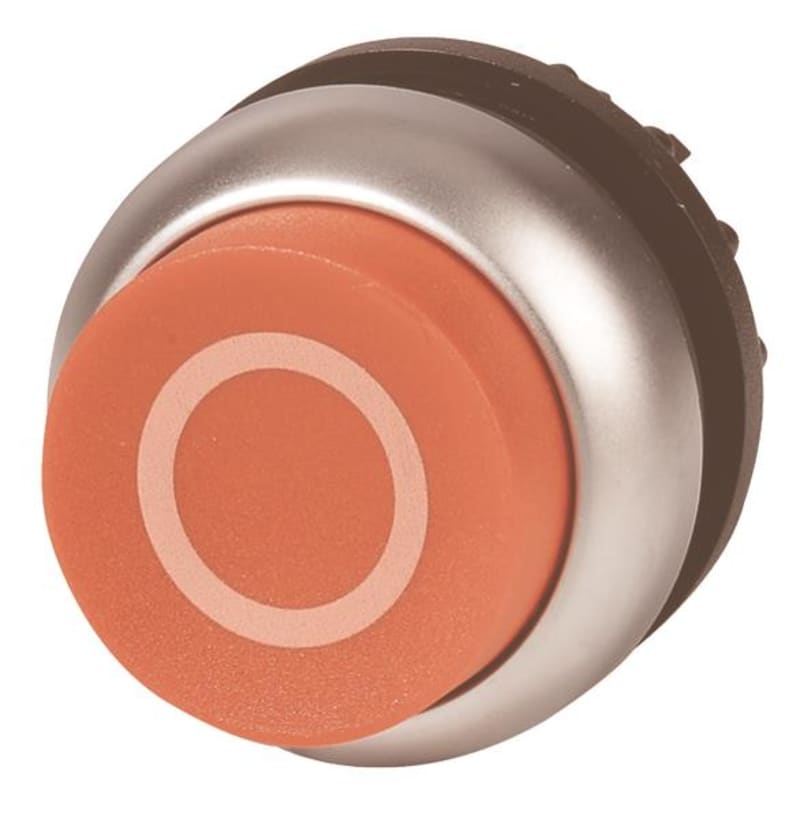

TR.BUTTON,TR/TR,HIGH,RED/Stop (M22-DRH-R-X0)
Part numberM22-DRH-R-X0EAN / GTIN4015082166755HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-DRH-R-X0 Pushbutton, raised, red 0, maintained.
Technical Specifications
- Manufacturer part number (MPN)
- M22-DRH-R-X0
- EAN / GTIN
- 4015082166755
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216675
- Depth
- 30 mm
- Height
- 35 mm
- Width
- 30 mm
- Weight
- 0.013 kg
- Certifications
- CSA; CSA File No.: 012528; CSA-C22.2 No. 14-05; IEC/EN 60947; UL 508; VDE 0660; CSA-C22.2 No. 94-91; UL File No.: E29184; CE; CSA Class No.: 3211-03; IEC/EN 60947-5; UL; UL Category Control No.: NKCR; DNV; GL; LR
- Actuating force
- 5 N
- Actuator color
- Red
- Actuator function
- Maintained; Switching function latching
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Extended; Classical
- Features
- Labelled
- Fitted with
- Front ring
- Functions
- Stay-put/spring-return function can be changed on device
- Inscription
- Inscribed
- Lens type
- Round
- Number of command positions
- 1
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Degree of protection
- IP67; NEMA 13; IP66; NEMA 3R; IP69K; NEMA 12; NEMA 4X
- Degree of protection (front side)
- IP67/IP69K; NEMA 4X
- Lifespan, mechanical
- 1,000,000 Operations (AC operated)
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 1800 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: 22 x 22 mm
- Type
- Pushbutton actuator
- Hole diameter
- 22 mm
- Colour button
- Red
- Suitable for lighting
- No
- Spring-return
- Yes
- Labelled
- Yes
- Type of button
- High
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67/IP69K
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082166755
- SAP 1000041140
- Code 8801486
Product Documentation
Document preview: TR.BUTTON,TR/TR,HIGH,RED/Stopp (M22-DRH-R-X0) — Specification Data Sheet (OEM)
More from Eaton
Eaton

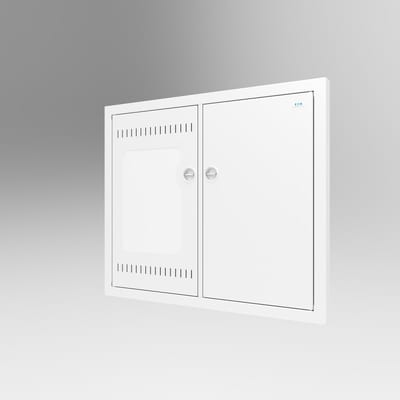

Door double G2 SbS 3-Row 83 mm
EP-501144
Eaton

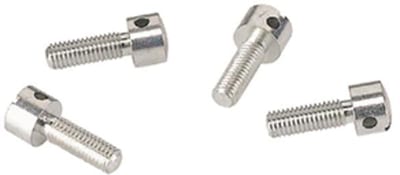

Plomberingsskrue xE (BPZ-S)
Eaton

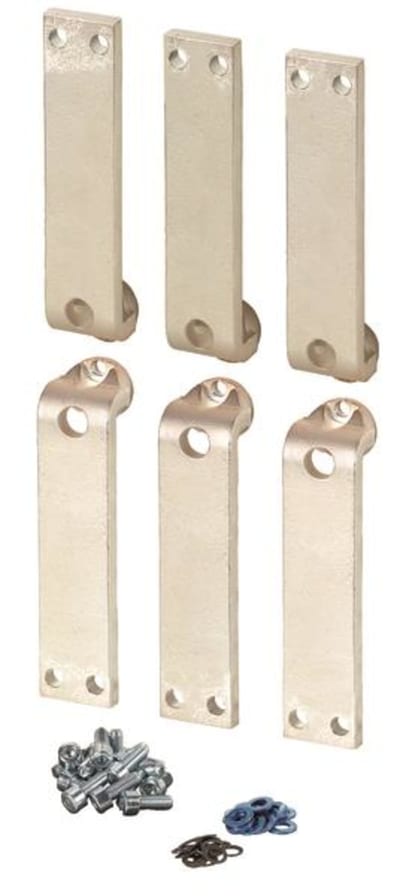

Eaton IZMX-TF164-1600-1
Eaton

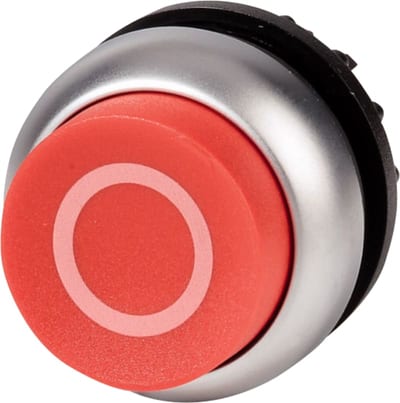

TR.BUTTON, IMP., HIGH, RED/Stop
M22-DH-R-X0
Eaton

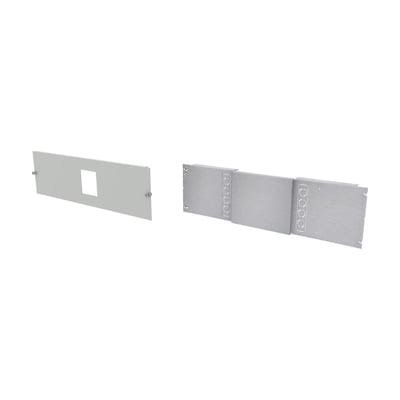

Mounting Kit XDV H H200 B800 xE Basic
2457597
Eaton

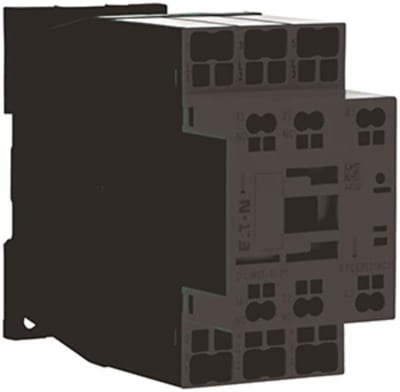

Contactor DILM17-11(230V50/60HZ)-PI
Eaton
Eaton FAZ-D8/2 Miniature Circuit Breaker — 2P, Type D, 8 A, 15 kA
Eaton

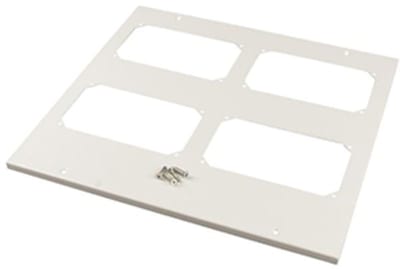

Top/bottom plate F3A xE Light B600 D400
