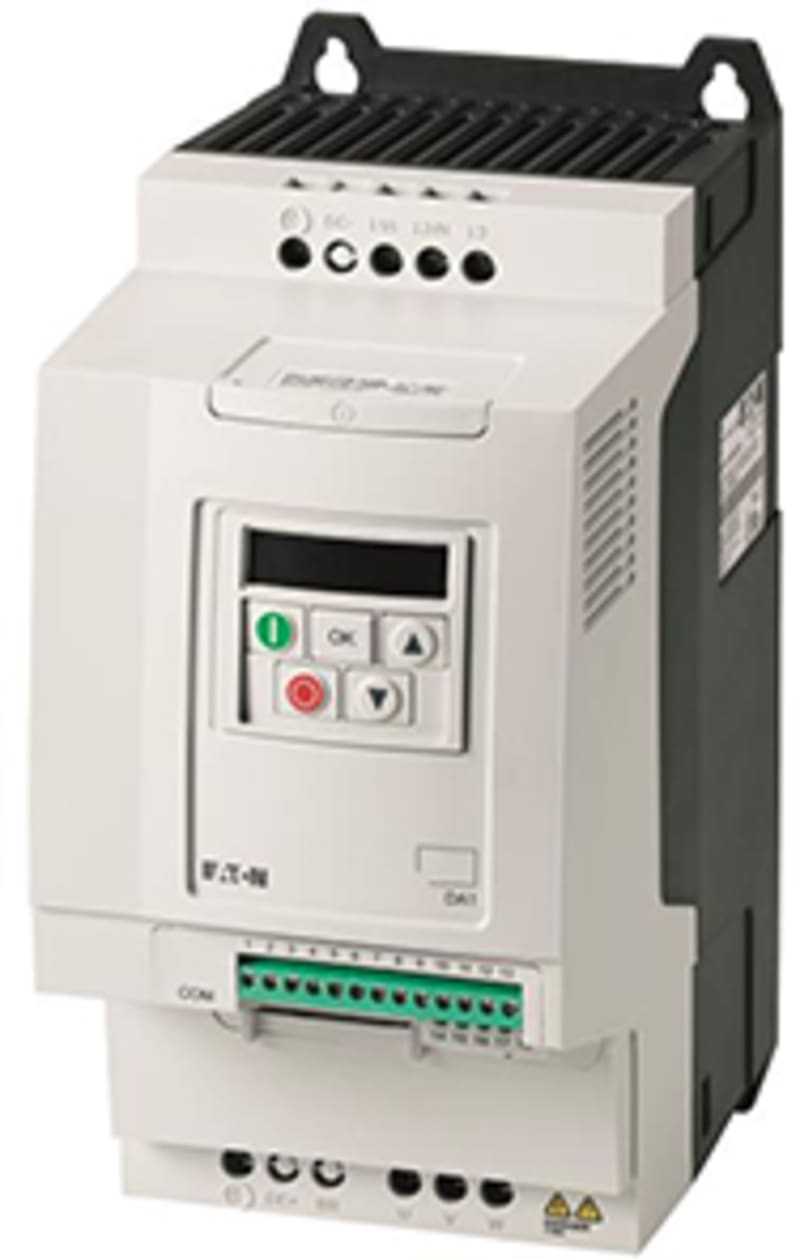

DA1 variable-frequency drive, 3-3 600V, 11 kW

Eaton DA1 variable-frequency drive, 3-3 600V, 11 kW (part number DA1-35017NB-A20C) is listed under Drives & Controllers / Variable Frequency Drives. HS code: 8504.40; Sales unit: pcs; Eaton catalogue number: 177040; Depth: 204 mm; Height: 273 mm; Width: 131 mm.

Manufacturer part number (MPN)

DA1-35017NB-A20C

EAN / GTIN

4015081714834

HS code

8504.40

Sales unit

pcs

Eaton catalogue number

177040

Depth

204 mm

Height

273 mm

Width

131 mm

Weight

3.5 kg

Catalog Notes

The brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.

Apparent power at 600 V

17.65 kVA

Braking resistance

50 Ω

Braking torque

Max. 30 % MN, Standard - Main circuit; Max. 100 % of rated operational current Ie with external braking resistor - Main circuit; Max. 100 % of rated operational current Ie, variable, DC - Main circuit

Switch-on threshold for the braking transistor

975 VDC

Altitude

Above 1000 m with 1 % derating per 100 m; Max. 1000 m; Max. 4000 m

Ambient operating temperature - max

50 °C

Ambient storage temperature - max

60 °C

Ambient operating temperature - min

-10 °C

Ambient operating temperature at 150% overload - max

50 °C

Ambient operating temperature at 150% overload - min

-10 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

< 95 average relative humidity (RH), no condensation, no corrosion

Number of inputs (analog)

2

Number of inputs (digital)

5

Number of outputs (analog)

2

Number of outputs (digital)

2

Number of relay outputs

2 (parameterizable, 1 N/O and 1 changeover contact, 6 A (250 V, AC-1) / 5 A (30 V, DC-1))

Rated control voltage (Uc)

24 V DC (external, max. 100 mA)

Equipment heat dissipation, current-dependent Pvid

330 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation details

Operation (with 150 % overload)

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

17 A

Static heat dissipation, non-current-dependent Pvs

0 W

Cable length

150 m, unscreened, maximum permissible, Motor feeder; 100 m, screened, maximum permissible, Motor feeder; 300 m, unscreened, with motor choke, maximum permissible, Motor feeder; 200 m, screened, with motor choke, maximum permissible, Motor feeder

Communication interface

EtherCAT, optional; PROFINET, optional; DeviceNet, optional; Ethernet IP, optional; CANopen®, built in; OP-Bus (RS485), built in; Modbus-TCP, optional; PROFIBUS, optional; SmartWire-DT, optional; Modbus RTU, built in

Connection to SmartWire-DT

Yes; In conjunction with DX-NET-SWD1 SmartWire DT module

Degree of protection

IP20; NEMA Other

Fitted with

Control unit; Additional PCB protection; PC connection; IGBT inverter; Breaking resistance; Internal DC link; 7-digital display assembly; Brake chopper

Frame size

FS3

Functions

4-quadrant operation possible

Mounting position

Vertical

Product Category

Variable frequency drives

Protection

Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)

Protocol

MODBUS; DeviceNet; PROFIBUS; EtherNet/IP; Other bus systems; CAN; PROFINET IO; TCP/IP

Safety function/level

STO (Safe Torque Off, SIL2, PLc Cat 2)

Suitable for

Branch circuits, (UL/CSA)

Efficiency

97 % (η)

Heat dissipation at current/speed

115 W at 50% current and 0% speed; 125 W at 50% current and 50% speed; 137 W at 50% current and 90% speed; 194 W at 100% current and 0% speed; 208 W at 100% current and 50% speed; 233 W at 100% current and 90% speed; 92 W at 25% current and 50% speed; 93 W at 25% current and 0% speed

Input current ILN at 150% overload

20.9 A

Leakage current at ground IPE - max

17 mA

Mains switch-on frequency

Maximum of one time every 30 seconds

Mains voltage - max

600 V

Mains voltage - min

500 V

Operating mode

Sensorless vector control (SLV); Speed control with slip compensation; U/f control; Optional: Vector control with feedback (CLV)

Output frequency - max

500 Hz

Output frequency - min

0 Hz

Output voltage (U2)

500 V AC, 3-phase; 600 V AC, 3-phase

Overload current IL at 150% overload

25.5 A

Rated control supply voltage

10 V DC (Us, max. 10 mA)

Rated frequency - max

62 Hz

Rated frequency - min

48 Hz

Rated operational current (Ie) at 150% overload

17 A

Rated operational power at 500 V, 50 Hz

3-phase

11 kW

Rated operational power at 525 V, 50 Hz

Rated operational voltage

600 V AC, 3-phase; 500 V AC, 3-phase

Resolution

0.1 Hz (Frequency resolution, setpoint value)

Short-circuit protection

NH fuse used together with TB00-D fuse base, Power wiring, Assigned switching and protective elements; LPJ fuse used together with J60060-3 fuse base, Power wiring, Assigned switching and protective elements

Short-circuit protection rating

35 A, UL (Class CC or J), Safety device (fuse or miniature circuit-breaker), Power Wiring

Starting current - max

200 %, IH, max. starting current (High Overload), for 4 seconds every 40 seconds, Power section

Supply frequency

50/60 Hz

Switching frequency

8 kHz, 4 - 24 kHz adjustable (audible), fPWM, Power section, Main circuit

System configuration type

AC supply systems with earthed center point

Voltage rating - max

600 VAC

Assigned motor current IM at 500 V, 50 Hz

150% overload

17 A

Assigned motor current IM at 525 V, 50 Hz

150% overload

16.6 A

Assigned motor current IM at 550 - 600 V, 60 Hz

Assigned motor power at 575/600 V, 60 Hz

3-phase

15 HP

HS Code

8504.40

• EAN 4015081714834
• SAP 1200123189
• Code 81987822
