Eaton

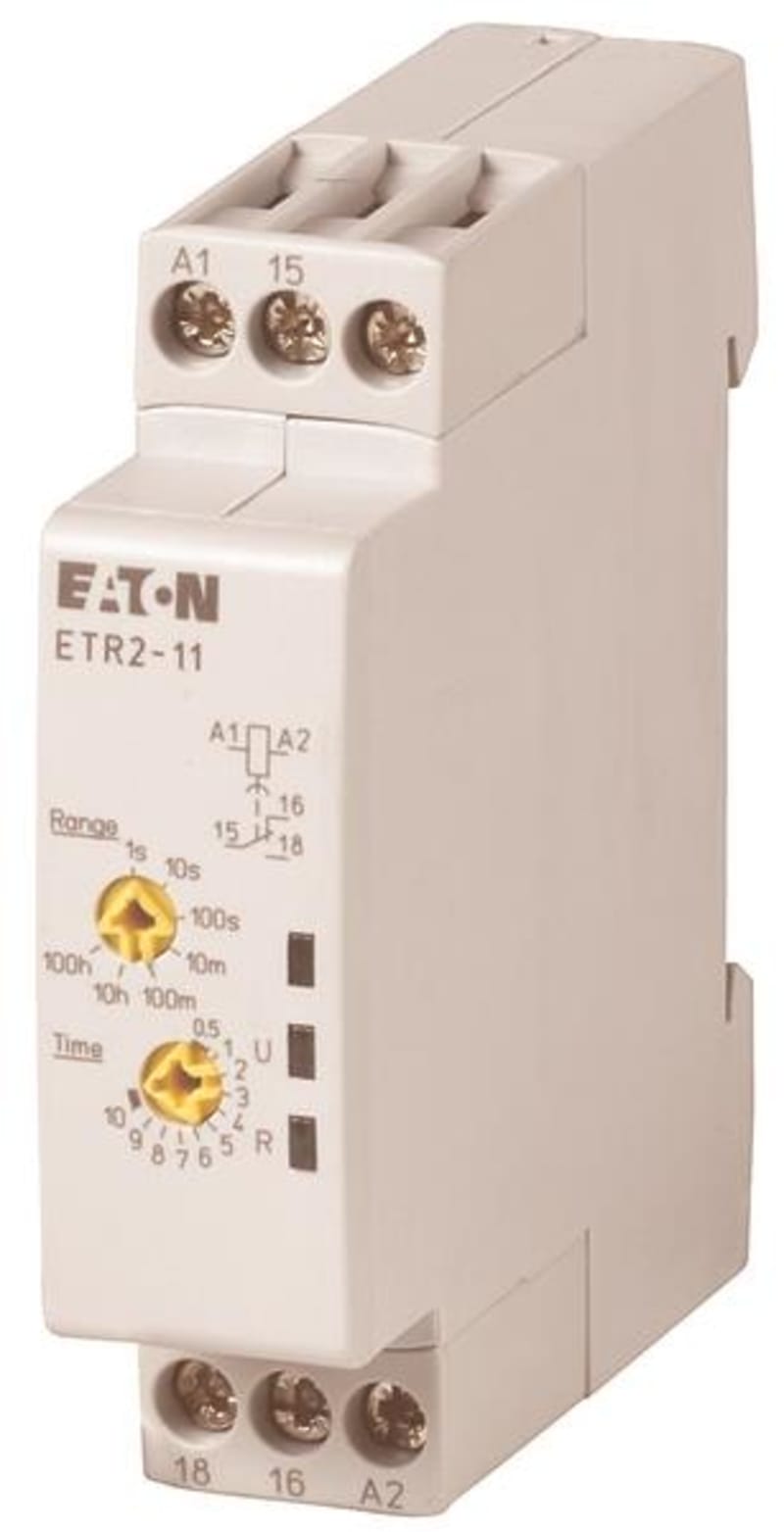

Time relay ETR2-11
Part numberETR2-11EAN / GTIN4015082626846HS code8536.90
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton ETR2-11 Time relay, 1W, 0.05s-100h, 24-240VAV 50/60Hz, 24-48VDC, tilslagsforsinket.
Technical Specifications
- Manufacturer part number (MPN)
- ETR2-11
- EAN / GTIN
- 4015082626846
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 262684
- Depth
- 63 mm
- Height
- 70 mm
- Width
- 17.5 mm
- Weight
- 0.051 kg
- Certifications
- CSA Class No.: 3211-03; IEC/EN 60947-5-1; UL 508; UL File No.: E29184; UL; UL Category Control No.: NKCR
- NKCR7; CSA File No.
- UL report valid; Certified by UL for use in Canada; CE; CSA-22.2 No. 14; IEC/EN 61812-1
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -25 °C
- Heat dissipation capacity Pdiss
- 0 W
- Mains voltage tolerance
- 24 - 240 V AC (at 50/60 Hz); 24 - 48 V DC
- Nominal current
- 3 A
- Rated operational current (Ie)
- 3 A at 230 V (NC); 4 A at AC-15, 220 V 230 V 240 V; 3 A at 230 V (NO)
- Electric connection type
- Screw connection
- Functions
- On-delayed; Delay-on energization; Fixed timing function
- Degree of protection
- IP20
- Number of contacts (change-over contacts)
- 1
- Product category
- ETR2 timing relays
- Suitable for
- DIN rail (top hat rail) mounting
- Time range - max
- 360000 s
- Time range - min
- 0.05 s
- Type
- Timer relay
- Voltage type
- AC/DC
- Rated control supply voltage (Us) at AC
- 50 Hz - max
- 240 V
- Rated control supply voltage (Us) at AC
- 50 Hz - min
- 24 V
- Rated control supply voltage (Us) at AC
- 60 Hz - max
- 240 V
- Rated control supply voltage (Us) at AC
- 60 Hz - min
- 24 V
- Rated control supply voltage (Us) at DC - max
- 48 V
- Rated control supply voltage (Us) at DC - min
- 24 V
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015082626846
- SAP 1000289121
- Code 81159283
Product Documentation
Document preview: Time relay, — Specification Data Sheet (OEM)
