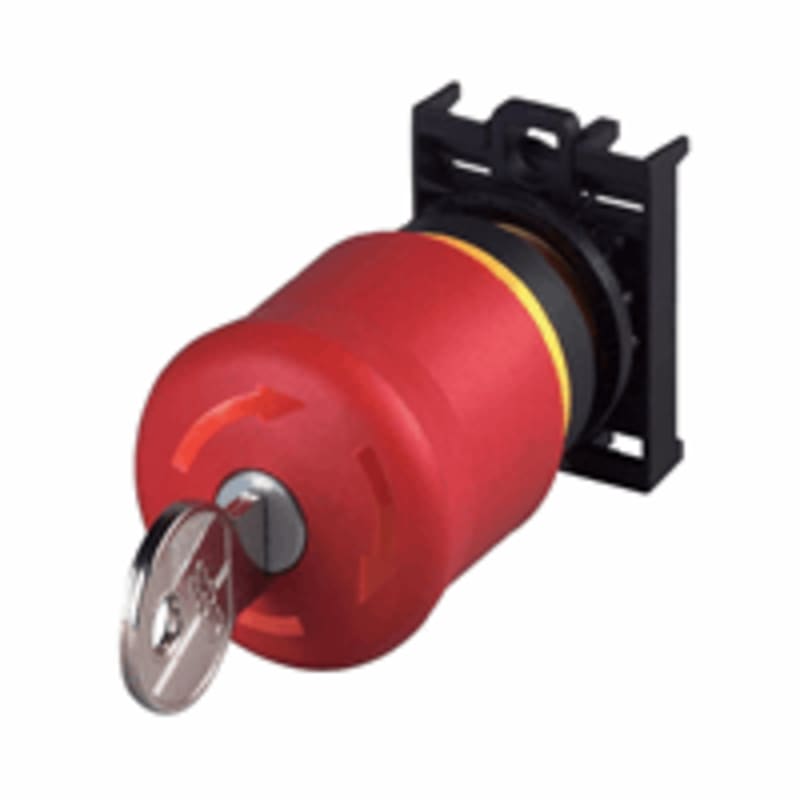

Complete Lockable Emergency STOP 1TO
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Complete Lockable Emergency STOP 1TO (part number M22-PVS/K01) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 5 pcs; Eaton catalogue number: 216514; Depth: 115 mm; Height: 38 mm; Width: 38 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-PVS/K01
- EAN / GTIN
- 4015082165147
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216514
- Depth
- 115 mm
- Height
- 38 mm
- Width
- 38 mm
- Weight
- 0.073 kg
- Certifications
- CE; CSA File No.: 012528; IEC/EN 60947-5; UL File No.: E29184; CSA; CSA Class No.: 3211-03; UL; UL 508; VDE 0660; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; IEC/EN 60947; UL Category Control No.: NKCR; DNV; GL; LR
- Catalog Notes
- Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11
- Actuating force
- 50 N
- Actuator color
- Red
- Actuator diameter
- 38 mm
- Actuator function
- Key-release
- Actuator travel and actuation force (DIN EN 60947-5-1)
- 4.8 mm
- Color
- Red
- Design
- Mushroom-shaped; Classical
- Illumination
- Non-illuminated
- Knob travel
- 5.7 mm
- Unlocking method
- Key-release
- Force for positive opening - min
- 15 N
- Number of contacts (normally closed contacts)
- 1
- Number of contacts (normally open contacts)
- 0
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- No
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Base color
- Yellow
- Features
- Tamper-proof (according to ISO 13850, EN 418)
- Accessories
- 1 key included with supplied equipment.
- Degree of protection
- IP67/IP69K; NEMA 4X, 13
- Lifespan, mechanical
- 100,000 Operations
- Mounting method
- Built-in
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 500 Operations/h
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Size
- Front dimensions: 35 mm
- Type
- Controlled stop pushbutton/emergency-stop button
- Rated conditional short-circuit current (Iq)
- 1 kA
- Number of contacts as normally closed contact
- 1
- With lighting
- No
- Hole diameter
- 22 mm
- Connection type auxiliary circuit
- Screw connection
- Diameter cap
- 38 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082165147
- SAP 1000031029
- Code 8229033
