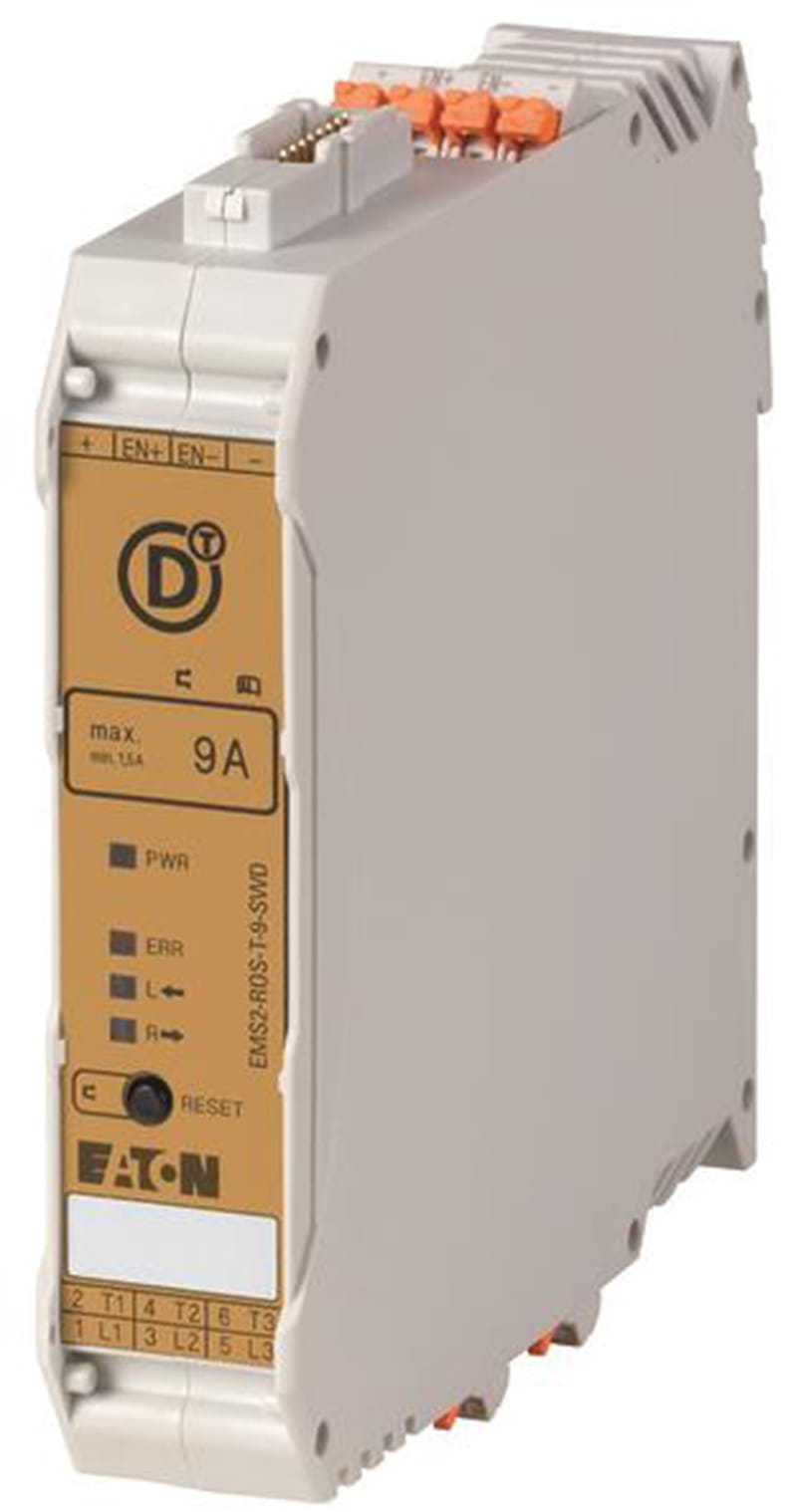

Direktestarter EMS2-DOS-T-9-SWD

Eaton EMS2-DOS-T-9-SWD Direktestarter, 24 V DC, 1,5 - 7 (AC-53a), 9 (AC-51) A, Push-In Terminals, SmartWire-DT slave.

Manufacturer part number (MPN)

EMS2-DOS-T-9-SWD

EAN / GTIN

4015081930869

Sales unit

pcs

Eaton catalogue number

192389

Depth

114.5 mm

Height

99 mm

Width

22.5 mm

Weight

0.297 kg

Certifications

UL508; IEC 61508; EN ISO 13849; IEC/EN 60947-4-2; UL File No.: E338590; UL Category Control No.: NLDX, NLDX7; PTB 19 ATEX 3000; UL 60947-4-1; CSA-C22.2 No. 60947-4-1-14; CE marking; UL listed; Certified by UL for use in Canada; UL report applies to both US and Canada

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-5 °C

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Equipment heat dissipation, current-dependent Pvid

12 W

Heat dissipation details

If necessary, Allow for derating

Rated operational current for specified heat dissipation (In)

9 A

Static heat dissipation, non-current-dependent Pvs

2 W

Inrush current

120 mA (draw)

Rated actuating current (Ic)

5 mA

Rated control supply current Is

60 mA

Rated control supply voltage

19.2 - 30 V DC

Rated control supply voltage (Us) at DC - max

24 V

Rated control supply voltage (Us) at DC - min

24 V

Rated control voltage (Uc)

24 V (Actuating circuit ON, L, R)

Rated operational current (Ie)

9 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

7 A

Rated operational current (Ie) at AC-51

9 A

Rated operational current (Ie) at AC-53A - max

7 A

Rated operational power at AC-3, 220/230 V, 50 Hz

1.5 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

3 kW

Rated operational power at AC-53A, 380/400 V, 50 Hz

3 kW

Rated operational voltage

42 - 550 V; 500 V AC

Switching level

19.2 - 30 V DC, Switching level "High", Actuating circuit (ON, L, R); < 5 V DC, Switching level "confirm Off", Actuating circuit (ON, L, R); -3 - 9.6 V DC, Switching level "Low", Actuating circuit (ON, L, R)

Radio interference class

EN 55011; Class A (EN 61000-6-3, emitted interference, radiated)

Class

CLASS 10

Connection to SmartWire-DT

Yes

Degree of protection

IP20; NEMA Other

Model

Direct starter

Mounting method

Top-hat rail fixing (according to IEC/EN 60715, 35 mm); Rail mounting possible

Mounting position

Motor feeder at bottom; Vertical

Overload release current setting - max

9 A

Overload release current setting - min

1.5 A

Product category

Electronic motor starter

Protocol

Other bus systems

Residual ripple

≤ 5 % (input voltage)

Terminal capacity

0.2 - 2.5 mm², Main cables, Push-in terminals

Terminal capacity (AWG)

24 - 14, Push-in terminals

Type

DOL starter (complete device)

Voltage type

DC

Explosion safety category for dust

ATEX dust-ex-protection, II (2) G [Ex e] [Ex d] [Ex px]; ATEX dust-ex-protection, II (2) D [Ex t] [Ex p]

Safety parameter (EN ISO 13849-1)

3, Category; PL e, Performance level; 60 (safe switch off) / 82 (motor protection) years; MTTFD

Safety parameter (IEC 62061)

Opening delay [ms]: 200 (safe switch off) / Class 10A (motor protection); 99 % (safe switch off) / 98 % (motor protection), DC

With transformer

No

Power consumption

12 W

Rated operation power at AC-3, 400 V

1.1 kW

Suitable for emergency stop

No

Rated operation current Ie

3 A

Number of indicator lights

5

Overload release current setting

0.18–3 A

Supporting protocol for LON

No

Supporting protocol for TCP/IP

No

Supporting protocol for ASI

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for other bus systems

Yes

External reset possible

Yes

Suitable for rail mounting

Yes

Rated control supply voltage DC

24 V

Supporting protocol for SERCOS

No

Supporting protocol for INTERBUS-Safety

No

Release class

CLASS 10

With short-circuit release

No

With fuse

No

Type of electrical connection of main circuit

Spring clamp connection

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Voltage type for actuating

DC

Type of motor starter

Reversing starter

Rated operation power at AC-3, 230 V, 3-phase

0.55 kW

Rated operation current at AC-3, 400 V

3 A

Ambient temperature, upper operating limit

40 °C

Temperature compensated overload protection

Yes

Coordination class according to IEC 60947-4-3

Class 1

Country of origin

Germany

HS Code

8536.50
