Bottom Plate FOR Flange F3A B600
Pricing
Request a quote
We reply within 24 hours
Product Description

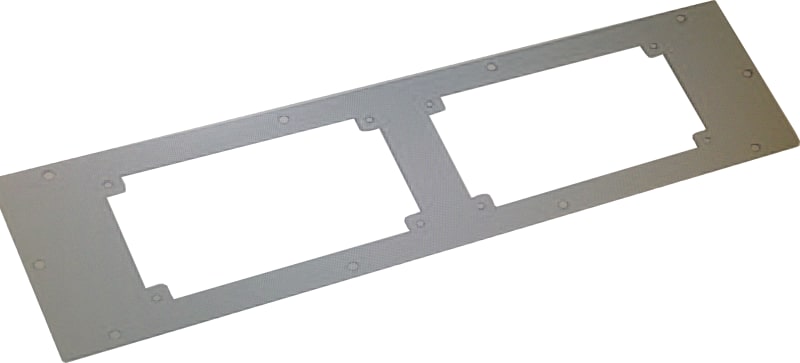

Eaton AFP-6-CS is a bottom plate for 600 mm wide CS wall-mounted steel enclosures, with two F3A flange apertures. Used with the matching F3A flange plates it maintains the enclosure IP66 rating, and it can serve as a roof plate by turning the enclosure through 180 degrees. RAL7035. EN62281.
Technical Specifications
- Manufacturer part number (MPN)
- AFP-6-CS
- EAN / GTIN
- 4015081124558
- Sales unit
- pcs
- Eaton catalogue number
- 112917
- Depth
- 175 mm
- Height
- 5 mm
- Width
- 600 mm
- Weight
- 0.06 kg
- Compliances
- RoHS conform
- Functions
- Usable as a roof plate by turning the enclosure through 180°; Not suitable for enclosure CS-…/150
- RAL-number
- 7035
- Special features
- For flange F3A With foamed gasket
- Used with
- Enclosure width = 600 mm
- Accessory/spare part type
- Bottom plate
- Color
- Light gray (RAL 7035); Gray
- Model
- Floor plate
- Type
- Accessory CS
- Flange apertures
- 2
- Material
- Steel plate; Metal
- Suitable for enclosure building height
- 1200 mm
- Suitable for enclosure building length/depth
- 300 mm
- Suitable for enclosure building width
- 600 mm
- Surface finishing
- Semi-textured
- Degree of protection
- IP66 (if used properly with F3A-… flanges)
- Colour
- Grey
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081124558
- SAP 1000704194
- Code 8422592
Product Documentation
More from Eaton
Eaton
Eaton NZMN3-VE250 Molded-Case Circuit Breaker 3-Pole 250A 50KA
Eaton
Eaton IZMX-TF403-3200F-1
Eaton
MCB FAZ-B10/2-DC
Eaton
Contactor 75kW 110-250V AC/DC (DILM250/22(RA250))
Eaton
Screw M5X12 (BPZ-S-M5X12)
Eaton
Coverskrue V-30 (HS10255)
Eaton

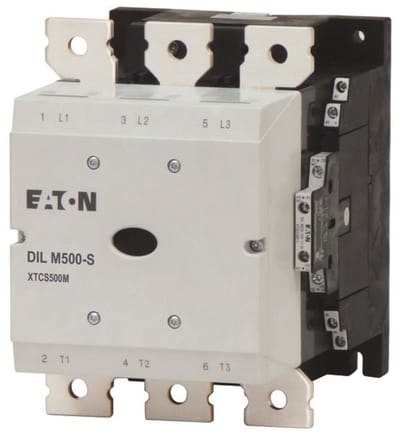

Contactor, DILM500-SIZE S/22 (DILM500-S/22(220-240V50/60HZ))
