Contactor 75kW 110-250V AC/DC (DILM250/22(RA250))

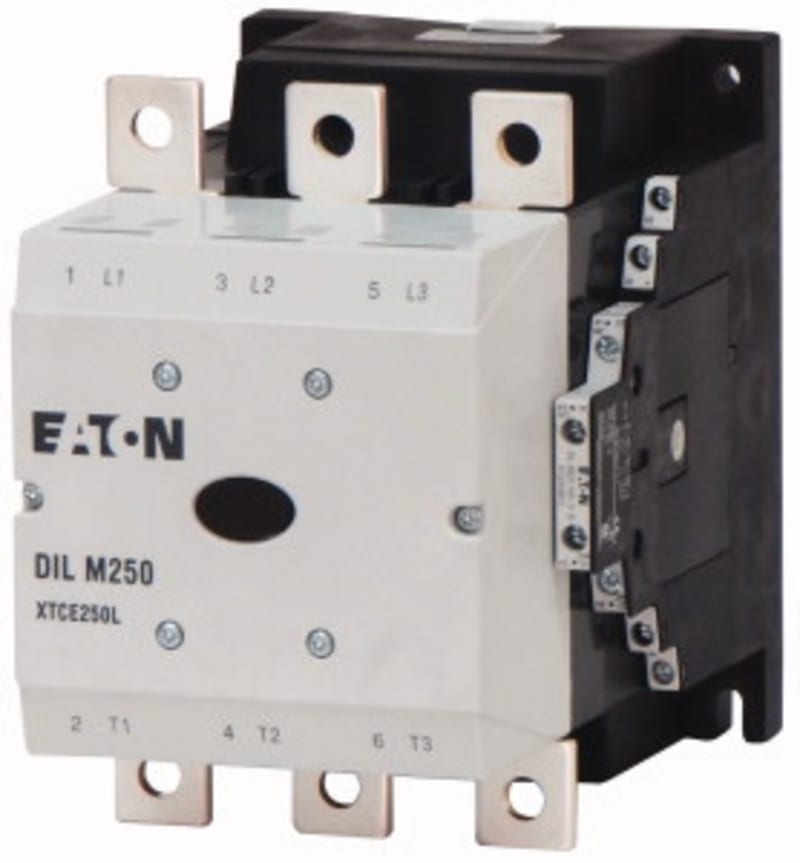

Eaton DILM250/22(RA250) Contactor, 3p+2N/O+2N/C, 132kW/400V/AC3.

Manufacturer part number (MPN)

DILM250/22(RA250)

EAN / GTIN

4015082082017

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

208201

Depth

208 mm

Height

189 mm

Width

140 mm

Weight

7.065 kg

Conventional thermal current Ith (1-pole, enclosed)

750 A

Conventional thermal current Ith (3-pole, enclosed)

300 A

Conventional thermal current Ith at 40°C (3-pole, open)

430 A

Conventional thermal current Ith at 50°C (3-pole, open)

380 A

Conventional thermal current Ith at 55°C (3-pole, open)

365 A

Conventional thermal current Ith at 60°C (3-pole, open)

350 A

Conventional thermal current Ith of main contacts (1-pole, open)

875 A

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-40 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-40 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Number of auxiliary contacts (normally closed contacts)

2

Number of auxiliary contacts (normally open contacts)

2

Number of contacts (normally closed contacts)

2

Number of contacts (normally open contacts)

2

Equipment heat dissipation, current-dependent Pvid

28 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

9.33 W

Rated operational current for specified heat dissipation (In)

250 A

Static heat dissipation, non-current-dependent Pvs

5.5 W

Inrush current

Max. 30 x Ie (peak)

Rated breaking capacity at 1000 V

760 A

Rated breaking capacity at 220/230 V

2500 A

Rated breaking capacity at 380/400 V

2500 A

Rated breaking capacity at 500 V

2500 A

Rated breaking capacity at 660/690 V

2500 A

Rated insulation voltage (Ui)

1000 V

Rated making capacity (cos phi to IEC/EN 60947)

3000 A

Rated operational current (Ie)

133 A at 690 V (Individual compensation, three-phase capacitors, open); 220 A at up to 525 V (Individual compensation, three-phase capacitors, open)

Rated operational current (Ie) at AC-3, 1000 V

76 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

250 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

250 A

Rated operational current (Ie) at AC-3, 440 V

250 A

Rated operational current (Ie) at AC-3, 500 V

250 A

Rated operational current (Ie) at AC-3, 660 V, 690 V

185 A

Rated operational current (Ie) at AC-4, 1000 V

76 A

Rated operational current (Ie) at AC-4, 220 V, 230 V, 240 V

200 A

Rated operational current (Ie) at AC-4, 440 V

200 A

Rated operational current (Ie) at AC-4, 500 V

200 A

Rated operational current (Ie) at AC-4, 660 V, 690 V

150 A

Rated operational power at AC-3, 1000 V, 50 Hz

108 kW

Rated operational power at AC-3, 240 V, 50 Hz

85 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

132 kW

Rated operational power at AC-3, 415 V, 50 Hz

143 kW

Rated operational power at AC-3, 440 V, 50 Hz

152 kW

Rated operational power at AC-3, 500 V, 50 Hz

173 kW

Rated operational power at AC-3, 690 V, 50 Hz

170 kW

Rated operational power at AC-4, 1000 V, 50 Hz

108 kW

Rated operational power at AC-4, 220/230 V, 50 Hz

62 kW

Rated operational power at AC-4, 240 V, 50 Hz

68 kW

Rated operational power at AC-4, 415 V, 50 Hz

117 kW

Rated operational power at AC-4, 440 V, 50 Hz

125 kW

Rated operational power at AC-4, 500 V, 50 Hz

138 kW

Rated operational power at AC-4, 660/690 V, 50 Hz

137 kW

Rated operational voltage (Ue) at AC - max

1000 V

Safe isolation

500 V AC, Between the contacts, According to EN 61140; 500 V AC, Between coil and contacts, According to EN 61140

Special purpose rating of definite purpose rating

1800 A, LRA 600 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 250 A, FLA 600 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 300 A, FLA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 2050 A, LRA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA)

Accessories

Fitting options auxiliary contacts: on the side: 2 x DILM820-XHI11(V)-SI; 2 x DILM820-XHI11-SA

Application

Contactors for Motors

Connection

Screw terminals

Degree of protection

IP00

Electromagnetic compatibility

Designed for operation in industrial environments. Its use in residential environments may cause radio-frequency interference, requiring additional noise suppression.

Fitted with

Suppressor circuit in actuating electronics

Lifespan, electrical

100,000 Operations (at Condensor operation)

Lifespan, mechanical

10,000,000 Operations (AC operated); 10,000,000 Operations (DC operated)

Operating frequency

200 Operations/h; 3000 mechanical Operations/h (AC operated); 3000 mechanical Operations/h (DC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof with terminal shroud or terminal block, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Resistance

500 mΩ (Admissible transitional contact resistance - of the external control circuit device when actuating A11)

Shock resistance

8 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 10 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Signal level

5 V - 15 V, PLC signal level (A3 - A4) to IEC/EN 61131-2 (type 2), Magnet systems

Utilization category

AC-4: Normal AC induction motors: starting, plugging, reversing, inching; AC-3: Normal AC induction motors: starting, switch off during running; AC-1: Non-inductive or slightly inductive loads, resistance furnaces

Voltage type

AC/DC

Drop-out voltage

AC operated: 0.2 x US max - 0.6 x US min, AC operated; 0.2 x US max - 0.6 x US min, DC operated

Duty factor

100 %

Pick-up voltage

0.7 - 1.15 V AC x Us; 0.7 - 1.15 V DC x Us

Power consumption

Control transformer with uk ≤ 6%

Power consumption, pick-up, 50 Hz

240 VA, Pull-in power, Coil in a cold state and 1.0 x Us

Power consumption, pick-up, 60 Hz

240 VA, Pull-in power, Coil in a cold state and 1.0 x Us

Power consumption, sealing, 50 Hz

10.5 VA, Coil in a cold state and 1.0 x Us; 0 CO, Coil in a cold state and 1.0 x Us; 5.5 W, Coil in a cold state and 1.0 x Us

Power consumption, sealing, 60 Hz

5.5 W, Coil in a cold state and 1.0 x Us; 10.5 VA, Coil in a cold state and 1.0 x Us

Rated control supply voltage (Us) at AC, 50 Hz - max

250 V

Rated control supply voltage (Us) at AC, 50 Hz - min

110 V

Rated control supply voltage (Us) at AC, 60 Hz - max

250 V

Rated control supply voltage (Us) at AC, 60 Hz - min

110 V

Rated control supply voltage (Us) at DC - max

250 V

Rated control supply voltage (Us) at DC - min

110 V

Switching time (AC operated, make contacts, closing delay) - max

100 ms

Switching time (AC operated, make contacts, opening delay) - max

110 ms

Assigned motor power at 200/208 V, 60 Hz, 3-phase

75 HP

Assigned motor power at 230/240 V, 60 Hz, 3-phase

100 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

200 HP

Assigned motor power at 575/600 V, 60 Hz, 3-phase

250 HP

Short-circuit current rating (basic rating)

700 A, max. Fuse, SCCR (UL/CSA); 600 A, max. CB, SCCR (UL/CSA); 18 kA, SCCR (UL/CSA)

Short-circuit current rating (high fault at 480 V)

250 A, max. CB, SCCR (UL/CSA); 18 kA, Fuse, SCCR (UL/CSA); 65 kA, CB, SCCR (UL/CSA); 700 A, Class L, max. Fuse, SCCR (UL/CSA); 700 A, Class L/450 A, Class J, max. Fuse, SCCR (UL/CSA); 18/100 kA, Fuse, SCCR (UL/CSA)

Short-circuit current rating (high fault at 600 V)

18 kA, Fuse, SCCR (UL/CSA); 700 A, Class J, max. Fuse, SCCR (UL/CSA); 600 A, max. CB, SCCR (UL/CSA); 18 kA, CB, SCCR (UL/CSA); 700 A, Class L/450 A, Class J, max. Fuse, SCCR (UL/CSA); 18/100 kA, Fuse, SCCR (UL/CSA)

Short-circuit protection rating (type 1 coordination) at 1000 V

200 A gG/gL

Short-circuit protection rating (type 1 coordination) at 400 V

400 A gG/gL

Short-circuit protection rating (type 1 coordination) at 690 V

400 A gG/gL

Short-circuit protection rating (type 2 coordination) at 1000 V

160 A gG/gL

Short-circuit protection rating (type 2 coordination) at 400 V

315 A gG/gL

Short-circuit protection rating (type 2 coordination) at 690 V

315 A gG/gL

Switching capacity (auxiliary contacts, general use)

15 A, 600 V AC, (UL/CSA); 1 A, 250 V DC, (UL/CSA)

Switching capacity (auxiliary contacts, pilot duty)

A600, AC operated (UL/CSA); P300, DC operated (UL/CSA)

HS Code

8536.90
