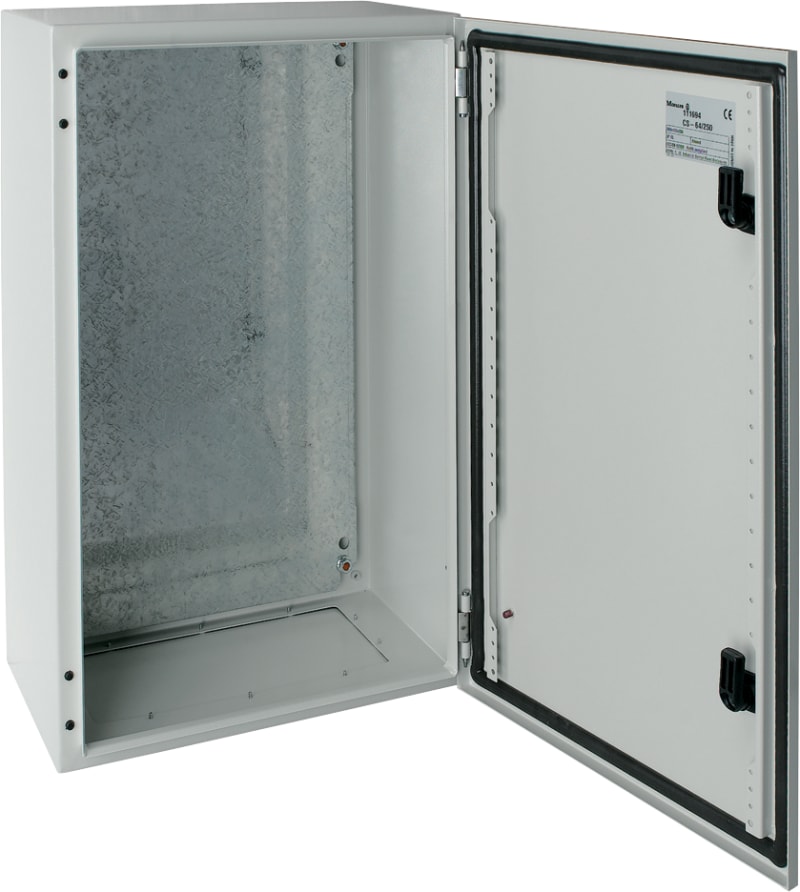

WALL-Mount Cabinet H500 B400 D200

Eaton CS-54/200 Enclosure with mounting plate, IP66. RAL7035. EN62221.

Manufacturer part number (MPN)

CS-54/200

EAN / GTIN

4015081112487

Sales unit

pcs

Eaton catalogue number

111689

Depth

200 mm

Height

500 mm

Width

400 mm

Weight

11.33 kg

Compliances

UL 508A; CSA-C22.2 No.14; IEC/EN 62208; CE marking; RoHS conform; UL CSA09 (may be provided with metal sub-panel, no back mounted components are allowed between sub-panel and the back sheet metal enclosure)

Certifications

UL 508A; IEC/EN 60529; UL Listed; CSA Std. C22.2 No. 14; IEC Rated; UL (File No. E336299); In accordance with Directive 2015/863/EU of the European Parliament and Council; UL CSA08 (request filed); UL (Category Control Number NITW); IEC/EN 62208

Catalog Notes

Foamed polyurethane sealing throughout. Impact resistance category IK10 to EN 62262. Sheet steel mounting plate. Bottom plate with foamed gasket. Single door, door stop on the right, door opening angle 120°. Door hinge pins with quick chang

Features

Wall build in; Pole fastening

Fitted with

Mounting plate; Including M6 threaded welded studs for earth conductor connections in the door:; Cover; Door

Functions

Floor standing enclosure

RAL-number

7035

Suitable for

Metrical mounting

Used with

Industrial control panels

Color

Light gray (RAL 7035); Gray

Type

Wall-mounting housing CS Wall-mounting housing with mounting plate

Ambient operating temperature details

-25 °C - 40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclical, to IEC 60068-2-30

Cover/door angle

120° door opening angle

Cover/door profile

2 door profiles

Cover/door type

Door hinges right; Can be converted by user; Standard closure 3 mm double-ward key (door interlock); Door hinges on the right, can be converted by user

Design type

Canted and seam welded, including two M6 threaded bolts for earth conductor connections inside the enclosure.

Flange plate dimensions

112 mm x 332 mm

Installation site

Indoor installation

Installation type

Floor standing wall model

Load capacity (door)

25 kg

Load capacity (mounting plate)

500 kg payload, when brackets fitted in all four enclosure corners (vertically or horizontally) and the weights are symmetrically distributed within the enclosure.; 200 kg

Material

Steel plate; Steel

Material quality

Other

Material thickness (body)

1.2 mm

Material thickness (bottom plate)

2 mm

Material thickness (door)

1.2 mm

Mounting method

Wall fastening; 9 mm drilling dimensions for wall mounting (Back plate); Intermediate mounting

Mounting plate height

470 mm

Mounting plate material

Sheet steel, hot-galvanized

Mounting plate width

350 mm

Number of connector holes

0

Number of covers/doors

1

Number of F3A flanges

1

Number of hinges

2

Number of locks

2

Permissible load of the door(s) according to IEC 62208 - max

250 N

Permissible load of the enclosure according to IEC 62208 - max

2250 N

Permissible load of the mounting plate according to IEC 62208 - max

2000 N

Surface finishing

Structured powder spray polyester based paint finish; Gloss; Powder coating; Semi-textured

Surface treatment

Structured powder spray polyester based paint finish

Thickness of mounting plate

2 mm

Weight of mounted components - max

225 kg

Degree of protection

IP66; IP23 (with ventilating plates); 12 (NEMA); IEC: IP66, indoor; UL/CSA Types 1, 12, indoor only.; IK10 (impact resistance); IK10

Heat diss. wall mount individual encl. top

35 W

Heat diss. wall mount middle encl. top

30 W

Heat diss. wall mount starting encl. top

32 W

Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890

35 W

Colour

Grey

With mounting plate

Yes

Number of doors

1

Suitable for wall mounting

Yes

Pre-stamping

No

EMC-version

Yes

With glazed door

No

Couplable

No

Impact strength

IK09

Suitable for outdoor set-up

No

Suitable for metrical mounting

Yes

Mounting plate depth-adjustable

Yes

Connectable

Yes

With ventilation door

No

Wall fastening possible

Yes

With rear door

No

Suitable for wall built-in

Yes

With cover

Yes

With door

Yes

Pitched roof

No

Pole fastening

Yes

Transparent cover

No

Suitable for outdoor installation

Yes

Max. permitted load of the enclosure according to IEC 62208

2250 N

Max. permitted load of the door(s) according to IEC 62208

250 N

Floor standing wall model

Yes

Freestanding

No

Corner model

No

Intermediate mounting

Yes

Country of origin

Spain

HS Code

8538.10
