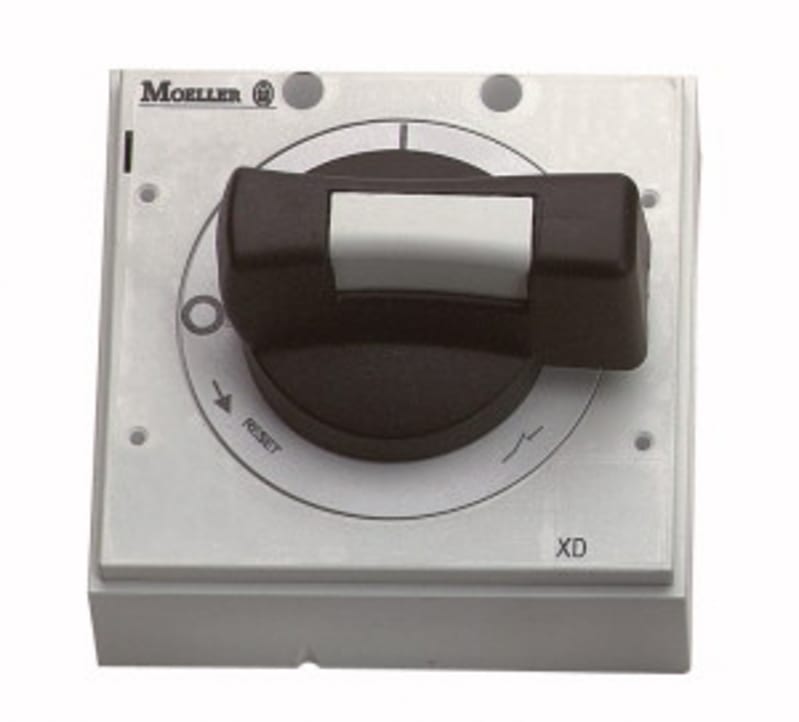

Rotary handle Black NZM3-XDV

Eaton NZM3-XDV Rotary handle Lockable Black.

Manufacturer part number (MPN)

NZM3-XDV

EAN / GTIN

4015082601294

Sales unit

pcs

Eaton catalogue number

260129

Depth

108 mm

Height

124 mm

Width

140 mm

Weight

0.881 kg

Compliances

IEC; UL/CSA; RoHS conform

Certifications

UL489; CE marking; UL (Category Control Number DIHS); UL listed; CSA (File No. 22086); CSA-C22.2 No. 5-09; UL (File No. E140305); CSA (Class No. 1437-01); IEC60947; CSA certified

Features

Lockable; Standard: black / gray

Fitted with

Padlock

Frame

NZM3

Special features

Complete with rotary drive Can be combined with insulating surround MODAN handle position detection by wire release can be retrofitted Makes it possible to operate the switch with a rotational movement and provides locking facilities

Suitable for

Switch disconnector; Power circuit breaker

Type

Accessory Rotary handle on circuit-breaker

Used with

NZM3(-4), PN3(-4), N(S)3(-4)

Activation type

Rotary handle

Color

Black

Degree of protection / NEMA enclosure type

IP20; 4X. 12

Locking facility

Lockable on the 0 position on the switch using up to 3 padlocks

Colour

Black

Lockable

Yes

Padlock locking

Yes

Suitable for emergency stop

No

With extension shaft

No

With restart blockage

No

Suitable for power circuit breaker

Yes

Suitable for switch disconnector

Yes

Degree of protection (NEMA)

4X, 12

With key lock

No

Country of origin

Germany

HS Code

8538.90

• EAN 4015082601294
• SAP 1000021529
• Code 8174776
