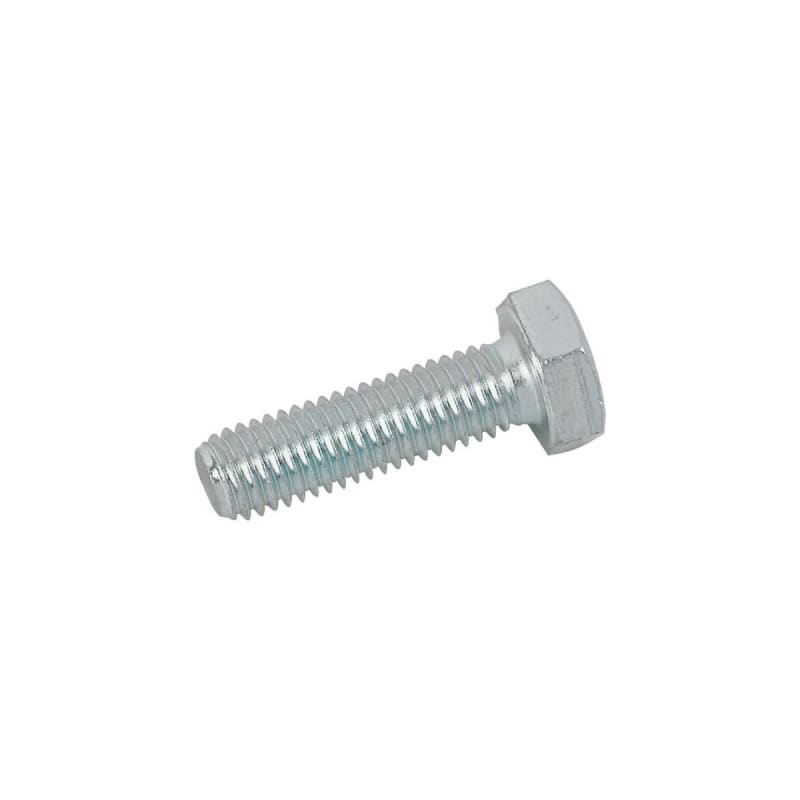

Hex socket screw M12X55 8.8 xE Main
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Hex socket screw M12X55 8.8 xE Main (part number XNNSKS-M12X55-8) is listed under Fasteners & Hardware / Screws & Bolts. Sales unit: pcs; Package quantity: 30 pcs; Eaton catalogue number: 141890; Depth: 62.5 mm; Height: 12 mm; Width: 12 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XNNSKS-M12X55-8
- EAN / GTIN
- 4015081386222
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Eaton catalogue number
- 141890
- Depth
- 62.5 mm
- Height
- 12 mm
- Width
- 12 mm
- Weight
- 0.067 kg
- Compliances
- RoHS conform
- RAL-number
- 7035
- Color
- Zinc
- Head diameter
- 12 mm
- Head style
- Hexagon
- Length to bottom side head
- 55 mm
- Material
- Steel
- Material quality
- 8.8 (steel)
- Screwing system
- Hexagon
- Surface protection
- Galvanic/electrolytic zinc plated
- Thread per inch
- 0
- Thread size
- 12; #12
- Thread type
- Full thread; Metric
- Wrench width
- 19 mm
- Head form
- Hexagon
- Countersunk head
- No
- Full thread
- Yes
- Left-handed thread
- No
- With flange
- No
- With nut
- No
- With washer
- No
- Self-locking
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 7318.15
Cross References
- EAN 4015081386222
- SAP 1200605805
- Code 82996289
Product Documentation
More from Eaton
Eaton

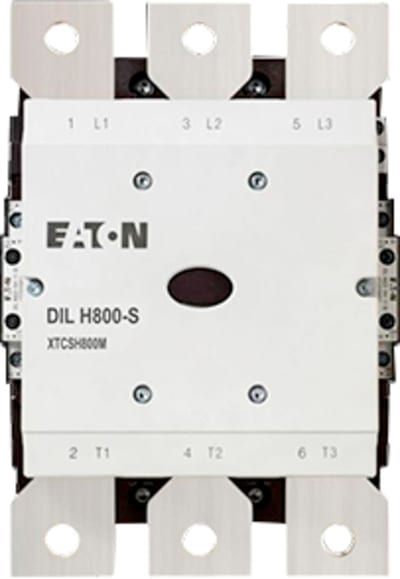

Contactor,DILH800-SIZE S/22(220-240V50/60HZ) (197916)
Eaton

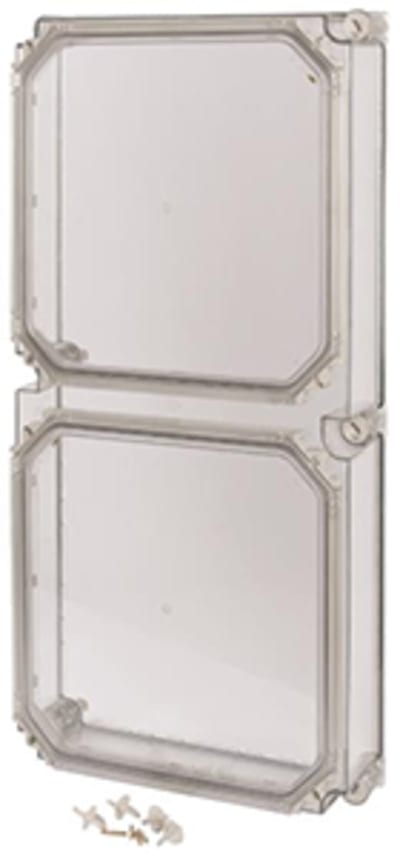

Cover H×W×D=750X375X141MM (D200-CI48/2T-NA)
Eaton

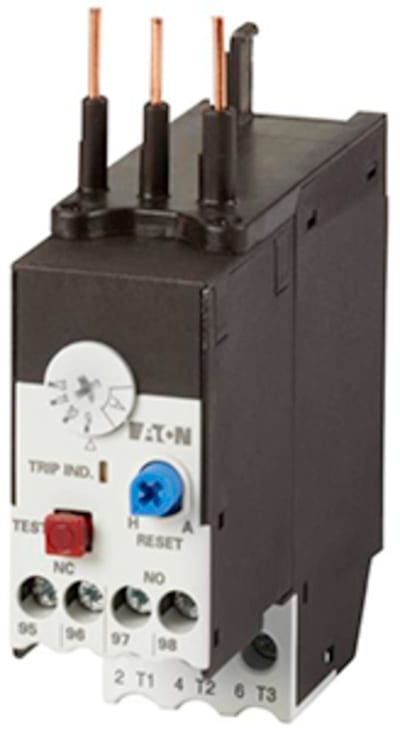

Overload relay ZBT12-2,4
Eaton

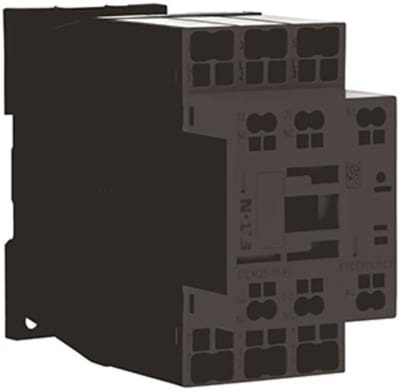

Contactor DILM25-11(42V50HZ,48V60HZ)-PI
Eaton
Cabinet H×W×D 2000X1200X800 IP55
XVTL-MP/BF-12/8/20
Eaton
Selector Switch with light, RMQ (M22-WRLK3-G-2K10LED-BVP)
Eaton

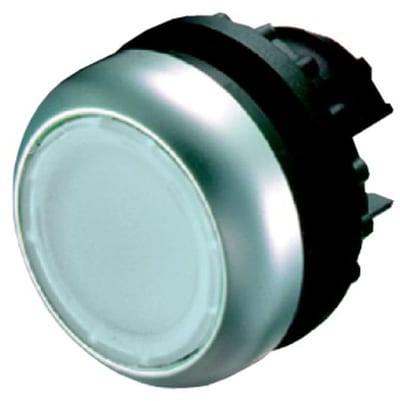

Illuminated Push Button White Pressure/Pressure
M22-DRL-W
Eaton

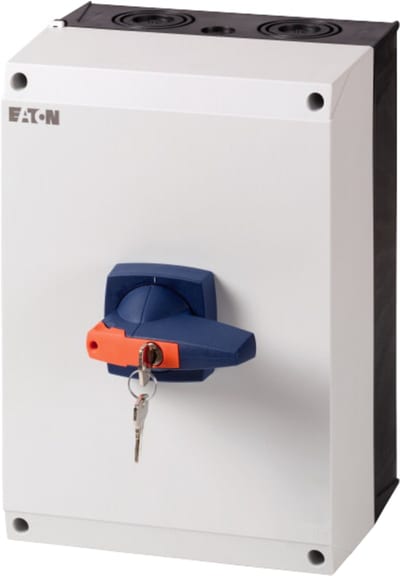

Switch-disconnector DMM-160/3N/I5/C-B
