Eaton
Selector Switch with light, RMQ (M22-WRLK3-G-2K10LED-BVP)
Part numberM22-WRLK3-G-2K10LED-BVPEAN / GTIN4015081104543HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-WRLK3-G-2K10LED-BVP M22-WRLK3-G-2K10LED-BVP.
Technical Specifications
- Manufacturer part number (MPN)
- M22-WRLK3-G-2K10LED-BVP
- EAN / GTIN
- 4015081104543
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Eaton catalogue number
- 110925
- Depth
- 50 mm
- Height
- 80 mm
- Width
- 50 mm
- Weight
- 0.049 kg
- Certifications
- CE
- Actuator color
- Green
- Actuator function
- Switching function latching
- Actuator type
- Toggle
- Bezel color
- Titanium
- Bezel material
- Plastic
- Fitted with
- Front ring
- Indicator color
- Green
- Lens type
- Round
- Number of switch positions
- 3
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Connection to SmartWire-DT
- No
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Static heat dissipation, non-current-dependent Pvs
- 0.45 W
- Degree of protection
- NEMA 4X
- Degree of protection (front side)
- IP66
- Lifespan, mechanical
- 100,000 Operations
- Opening diameter
- 22.5 mm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Size
- Front diameter: 29.7 mm
- Suitable for
- Illumination
- Used with
- Modular pushbutton
- Hole diameter
- 22 mm
- Suitable for lighting
- Yes
- Spring-return
- No
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP66
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Type of control element
- Wing knob
- Colour indicator light cap
- Green
- Colour control element
- Green
- Switching function latching
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015081104543
- SAP 1000767417
- Code 8559965
Product Documentation
Document preview: Selector Switch with lys, RMQ (M22-WRLK3-G-2K10LED-BVP) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Illuminated Push Button White Pressure/Pressure
M22-DRL-W
Eaton
Switch-disconnector DMM-160/3N/I5/C-B
Eaton

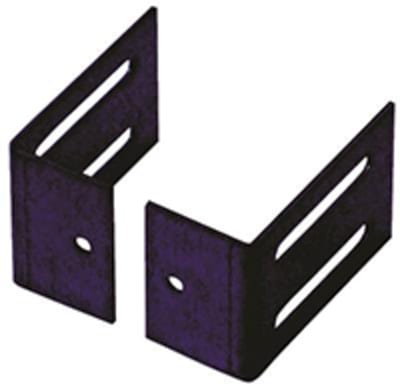

Mounting Bracket (XVTL-BRA/L)
Eaton

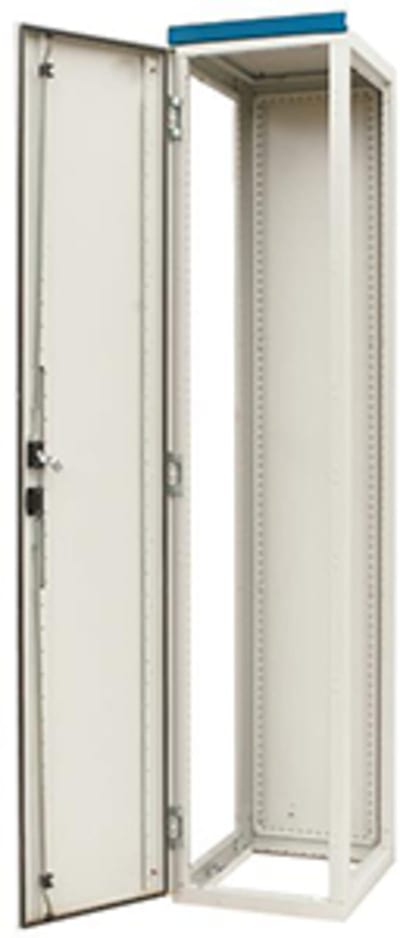

Cabinet H×W×D 1800X1200X400 IP55
XVTL-MP/BF-12/4/18
Eaton

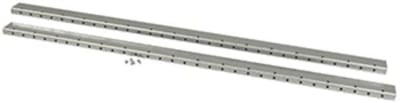

Front Plate Bracket H1150 xE Basic
BPZ-FPS/1150
Eaton

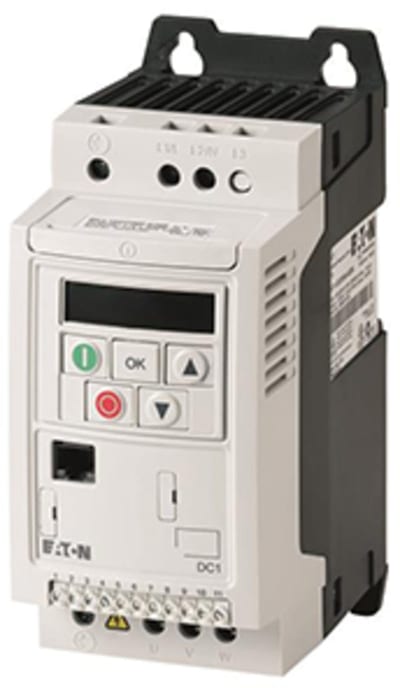

DC1 Variable-frequency drive 1,5kW (169246)
Eaton

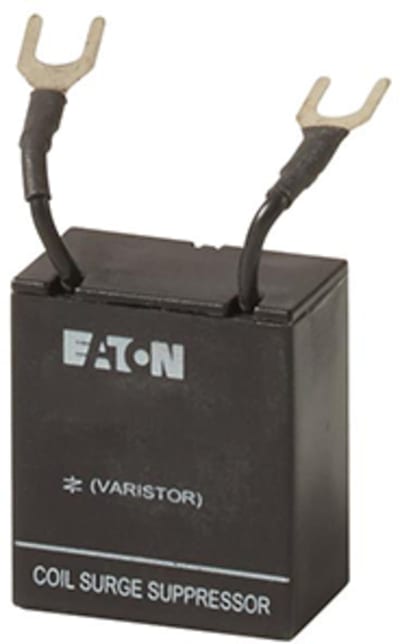

Varistor attenuator DILMT32-XSPV240
Eaton

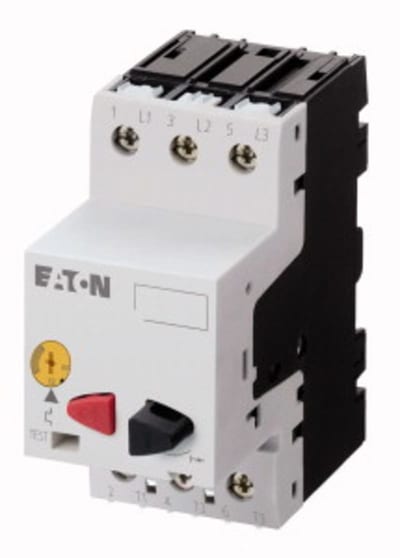

Motor PROTECTIONBR.8-12A PUSH-Button
