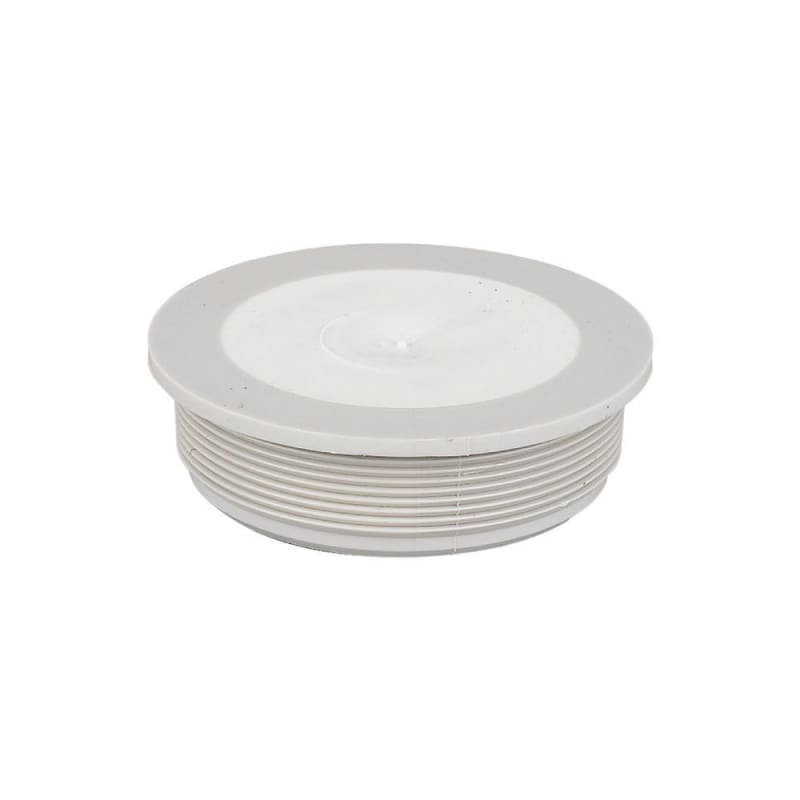

Eaton KT-M16
Part numberKT-M16EAN / GTIN4015082169831HS code8538.90
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton KT-M16 is listed under Electrical Components / Cable Glands. Sales unit: pcs; Package quantity: 100 pcs; Eaton catalogue number: 216983; Depth: 15 mm; Height: 25 mm; Width: 25 mm.
Technical Specifications
- Manufacturer part number (MPN)
- KT-M16
- EAN / GTIN
- 4015082169831
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Eaton catalogue number
- 216983
- Depth
- 15 mm
- Height
- 25 mm
- Width
- 25 mm
- Weight
- 0.002 kg
- Compliances
- RoHS conform
- Used with
- NYM 16 mm² (1x) or 1.5 mm² (3x); H03VV-F 0.75 mm² (3x)
- Special features
- With integral push-through diaphragm
- Type
- General switchboard accessory
- Features
- Watertight; Gastight; Halogen free
- Thread size
- M16
- Stress fracture risk
- Relative high
- Bore diameter
- 16.5 mm
- For outer cable diameter - max
- 9 mm
- For outer cable diameter - min
- 1 mm
- For wall thickness - max
- 9.5 mm
- For wall thickness - min
- 1 mm
- Number of cables - max
- 1
- Number of cables - min
- 1
- Opening diameter
- 16.5 mm
- Operating temperature - max
- 40 °C
- Operating temperature - min
- -5 °C
- Suitable for cable diameter - max
- 9 mm
- Suitable for cable diameter - min
- 1 mm
- Thread size (PG)
- 0
- Cable entry type
- M16; Round
- Surface finishing
- RAL 7035, light gray
- Color
- Gray; Light gray (RAL 7035)
- Degree of protection
- IP66
- Surface protection
- Other
- Accessory/spare part type
- Cable grommets; Metric diaphragm grommets; Cable management
- Chemical resistance
- Resistant against: alcohol, animal and plant fat, brine, light acids, water
- Material quality
- Polyethylene (PE)
- Material
- Other; PE and thermoplastic elastomer; Halogen free; Silicone free
- Model
- Closed
- Temperature resistance
- Temperature resistant: -40 °C - 80 °C, short-time up to approx. 100 °C
- Colour
- Grey
- Watertight
- Yes
- Halogen free
- Yes
- Cable entry
- Round
- With strain relief
- No
- Operating temperature
- -5–40 °C
- Angle model
- No
- Suitable for cable diameter
- 1–9 mm
- For wall thickness
- 1–9.5 mm
- Shrink technique
- No
- Number of cables
- 1
- Suitable for cable gland
- No
- Gastight
- Yes
- Fire resistant
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082169831
- SAP 1200518546
- Code 82663902
Product Documentation
Document preview: Eaton KT-M16 — Specification Data Sheet (OEM)
