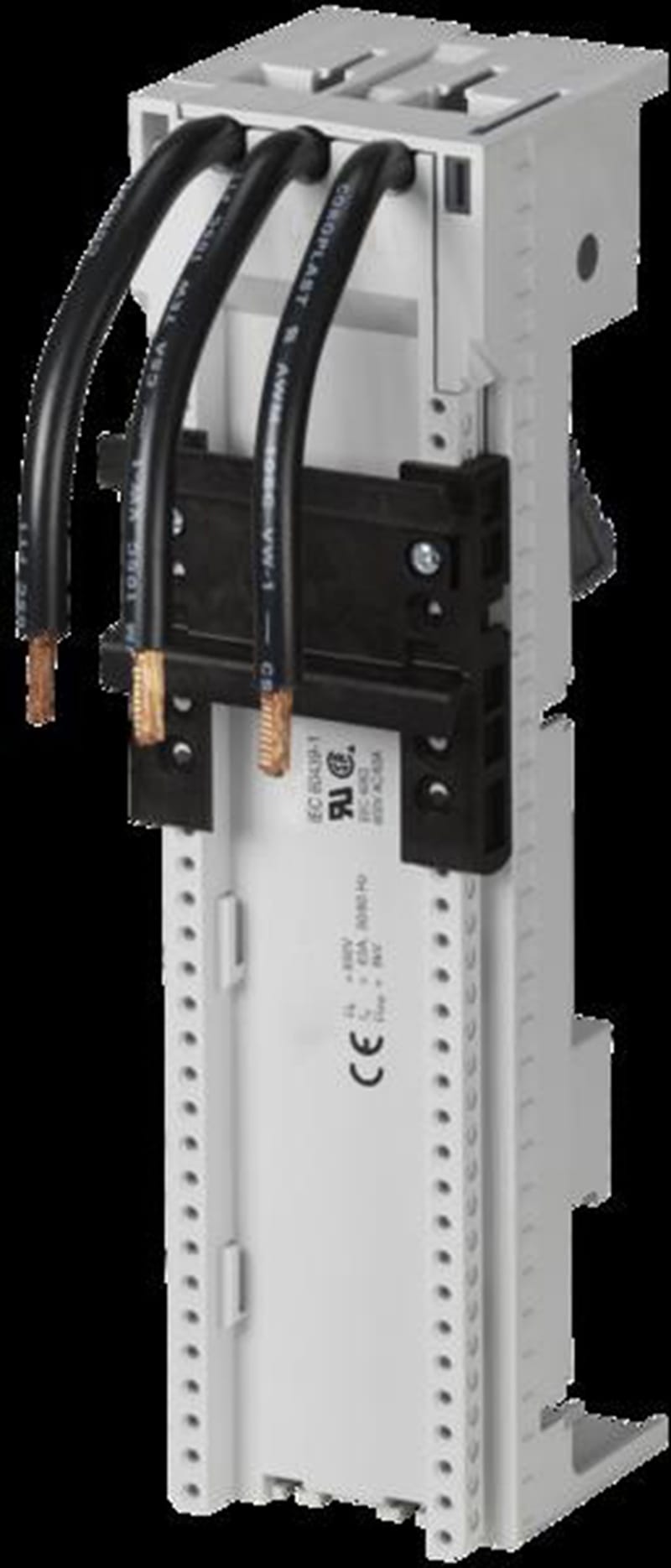

Busbaradapter (BBA4-63)

Eaton Busbaradapter (BBA4-63) is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 4 pcs; Eaton catalogue number: 101457; Depth: 200 mm; Height: 63 mm; Width: 55 mm.

Manufacturer part number (MPN)

BBA4-63

EAN / GTIN

4015081013777

Sales unit

pcs

Package quantity

4 pcs

Eaton catalogue number

101457

Depth

200 mm

Height

63 mm

Width

55 mm

Weight

0.347 kg

Certifications

UL; CSA-C22.2 No. 14; UL 508; UL File No.: E300273; CE; Certified by UL for use in Canada; IEC60439-1; UL Category Control No.: NMTR; NMTR7; UL 508A

Special features

Terminal capacity: 10 mm² (AWG 8)

Nominal current

63 A

Type

Busbar adapter SASY Busbar system 60 mm

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent Pvid

6.9 W

Electric connection type

Round conductor

Rated operation current (Ie)

63 A

Voltage rating (UL CSA 13)

600 V AC, UL/CSA

Voltage rating at AC

690 V

Adapter width

55 mm

Busbar distance

60 mm

Busbar thickness - max

10 mm

Busbar thickness - min

5 mm

Mounting rail armament

1 mounting rail

Number of DIN rails

1

Rail width

35 mm

Type of electric connection

Round conductor

Rated current In

63 A

Min. busbar thickness

5 mm

Max. busbar thickness

10 mm

Width of the adaptor

54 mm

Country of origin

Germany

HS Code

8536.90
