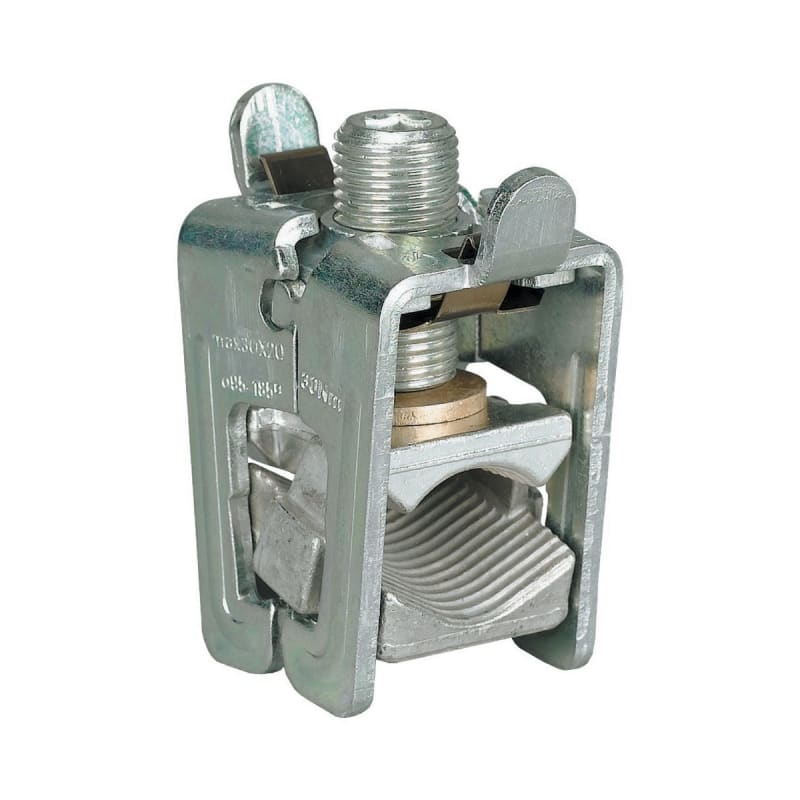

DIN-rail terminal 95-185mm² F.20X5
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton DIN-rail terminal 95-185mm² F.20X5 (part number AKS185) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 6 pcs; Eaton catalogue number: 107195; Depth: 38 mm; Height: 70 mm; Width: 51 mm.
Technical Specifications
- Manufacturer part number (MPN)
- AKS185
- EAN / GTIN
- 4015081069583
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Eaton catalogue number
- 107195
- Depth
- 38 mm
- Height
- 70 mm
- Width
- 51 mm
- Weight
- 0.297 kg
- Compliances
- UL CSA09 (refer to approbation report); RoHS conform
- Certifications
- CSA (Class No. 3211-37); CE marking; North America (UL listed, CSA certified); UL (File No. E307559); CSA-C22.2 No. 14; UL (Category Control Number NMTR2, NMTR8); UL508A; CSA (File No. 236217); IEC 60439-1
- Functions
- Current limiting circuit breaker, refer to approbation report; Connections; Clamp terminal
- Special features
- Termination to busbars without drilling A cable block is used to connect the conductor to the busbar
- Suitable for
- Sector conductor connection; Round conductor connection; Flat rail; Strip conductor connection
- Used with
- 30 mm x 5/10 mm rail; 20 mm x 5/10 mm rail; 25 mm x 5/10 mm rail; Double T profile; Feeder circuits; Connection; 185 mm system; 60 mm system
- Type
- 185 mm system 60 mm system Connection
- Rated operation current (Ie)
- 500 A
- Rated operational current
- 500 A
- Rated operational current (Ie) - max
- 500 A
- Voltage rating (UL CSA 13)
- Max. 600 V AC
- Busbar thickness - max
- 10 mm
- Busbar thickness - min
- 5 mm
- Busbar width - max
- 30 mm
- Busbar width - min
- 20 mm
- Conductor cross section - max
- 185 mm²
- Degree of protection
- UL508A; CSA-C22.2 No. 14; IEC 60439-1; CE marking; Feeder circuits
- Terminal capacity (conductor)
- 95 mm² - 185 mm²; AWG3/0 - MCM350
- Width clamp
- 38 mm
- Max. conductor cross section
- 185 mm²
- Busbar thickness
- 5–10 mm
- Suitable for strip conductor connection
- Yes
- Suitable for round conductor connection
- Yes
- Suitable for sector conductor connection
- Yes
- Max. rated operation current Ie
- 500 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081069583
- SAP 1200607329
- Code 82995633
Product Documentation
