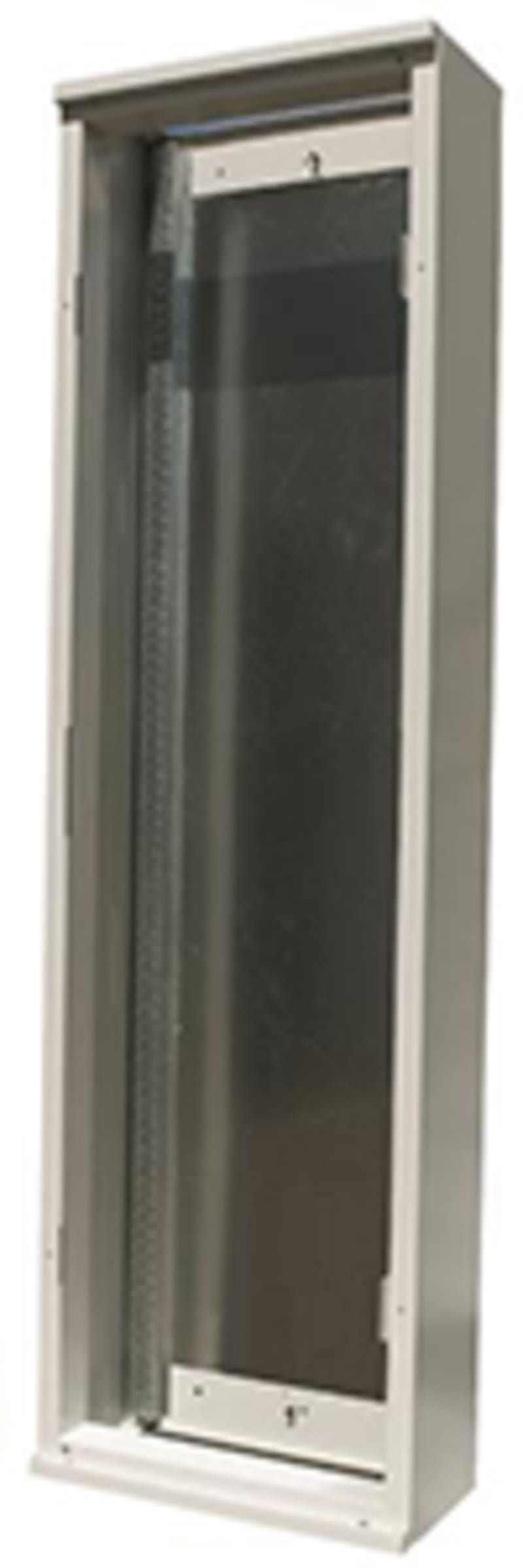

Cabinet B=600 H=2060 D=250
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Cabinet B=600 H=2060 D=250 (part number BP-F-600/20/2,5-F) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 120755; Depth: 250 mm; Height: 2060 mm; Width: 600 mm; Weight: 19 kg.
Technical Specifications
- Manufacturer part number (MPN)
- BP-F-600/20/2,5-F
- EAN / GTIN
- 4015081185856
- Sales unit
- pcs
- Eaton catalogue number
- 120755
- Depth
- 250 mm
- Height
- 2060 mm
- Width
- 600 mm
- Weight
- 19 kg
- Compliances
- RoHS conform
- Features
- EMC-version; Mounting plate depth-adjustable
- Fitted with
- Door
- Functions
- Basic device
- RAL-number
- 7035
- Suitable for
- Metrical mounting
- Application
- Indoor (installation site)
- Color
- Gray; Light gray (RAL 7035)
- Type
- Basic device
- Grade material
- Sheet steel
- Installation type
- Floor installation possible
- Material
- Steel; Sheet steel
- Mounting method
- Floor standing distribution board; Detached
- Number of connector holes
- 0
- Number of covers/doors
- 0
- Number of locks
- 0
- Surface finishing
- With powder coating; Powder coating
- Degree of protection
- IK08 (impact resistance); IP30; Other; IK08
- Colour
- Grey
- With mounting plate
- No
- Suitable for wall mounting
- No
- Pre-stamping
- No
- EMC-version
- Yes
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK07
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- Yes
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- No
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- No
- Freestanding
- Yes
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081185856
- SAP 1200283510
- Code 82253630
