Eaton

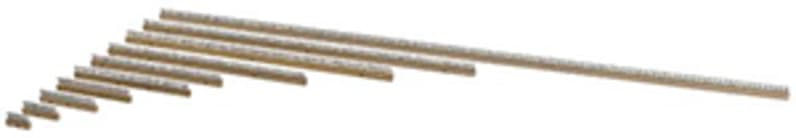

CU rail 63A KL-11
Part numberKL-11EAN / GTIN9004852829292HS code8536.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton CU rail 63A KL-11 is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Eaton catalogue number: 219725; Depth: 7 mm; Height: 9 mm; Width: 92 mm; Weight: 0.04 kg.
Technical Specifications
- Manufacturer part number (MPN)
- KL-11
- EAN / GTIN
- 9004852829292
- Sales unit
- pcs
- Eaton catalogue number
- 219725
- Depth
- 7 mm
- Height
- 9 mm
- Width
- 92 mm
- Weight
- 0.04 kg
- Compliances
- RoHS conform
- Functions
- Additional equipment
- Suitable for
- Fine strand conductors; Solid conductors; Stranded conductors
- Used with
- Expansion terminal; BF flat distribution board; KLV distribution board; Accessory consideration
- Accessory/spare part type
- General
- Color
- Other
- Nominal current
- 63 A
- Number of poles
- Single-pole
- Type
- Additional equipment BF flat distribution board KLV distribution board
- Conductor cross section, input - max
- 25 mm²
- Conductor cross section, input - min
- 1.5 mm²
- Conductor cross section, output - max
- 16 mm²
- Conductor cross section, output - min
- 1.5 mm²
- Material
- Metal
- Number of inputs
- 2
- Number of outputs
- 10
- Connection type
- Clamp; Screwing
- Mounting method
- Screw
- Suitable for enclosure building width
- 92 mm
- Suitable for enclosure building height
- 9 mm
- Suitable for enclosure building depth
- 7 mm
- Country of origin
- India
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 9004852829292
- SAP 1200602040
- Code 82980651
Product Documentation
Document preview: CU rail 63A — Specification Data Sheet (OEM)
