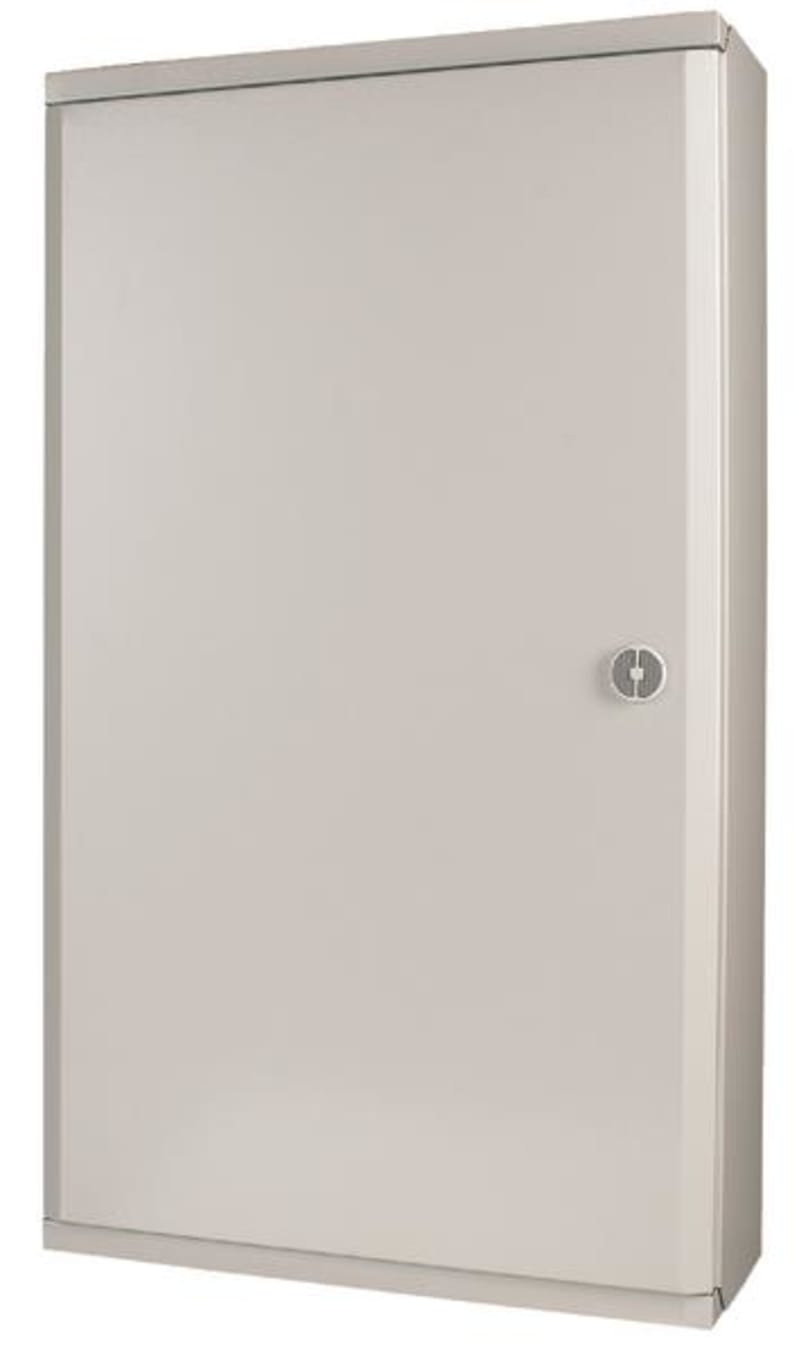

Panel board m/DIN B=800mm H=1260
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Panel board m/DIN B=800mm H=1260 (part number BP-O-800/12-C) is listed under Enclosures / Distribution Boards. Sales unit: pcs; Eaton catalogue number: 293313; Depth: 262 mm; Height: 1260 mm; Width: 800 mm; Weight: 40.5 kg.
Technical Specifications
- Manufacturer part number (MPN)
- BP-O-800/12-C
- EAN / GTIN
- 4015082933135
- Sales unit
- pcs
- Eaton catalogue number
- 293313
- Depth
- 262 mm
- Height
- 1260 mm
- Width
- 800 mm
- Weight
- 40.5 kg
- Compliances
- RoHS conform
- Features
- EMC-version
- Functions
- Basic device; Extension possible; Sealable
- RAL-number
- 7035
- Special features
- With DIN-rail Front plate with 45mm cut-out
- Application
- Indoor (installation site)
- Color
- Light gray (RAL 7035); Gray
- Type
- Basic device
- Built-in height
- 1275 mm
- Built-in width
- 815 mm
- Closure type
- Other
- Cover/door model
- Closed
- Cover/door type
- Three-point turn-lock; Door; Single
- Enclosure material
- Steel
- Internal depth
- 257.5 mm
- Material
- Sheet steel
- Mounting method
- Surface mounted (plaster); Surface mounting; DIN-rail
- Number of rows
- 7
- Surface finishing
- With powder coating
- Width in number of modular spacings
- 35
- Built-in depth
- 280 mm
- Degree of protection
- IP30
- Colour
- Grey
- UV resistant
- No
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 257.5 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Steel
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- No
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015082933135
- SAP 1200283421
- Code 82253635
Product Documentation
