Unit breaker 13A 3P+N C

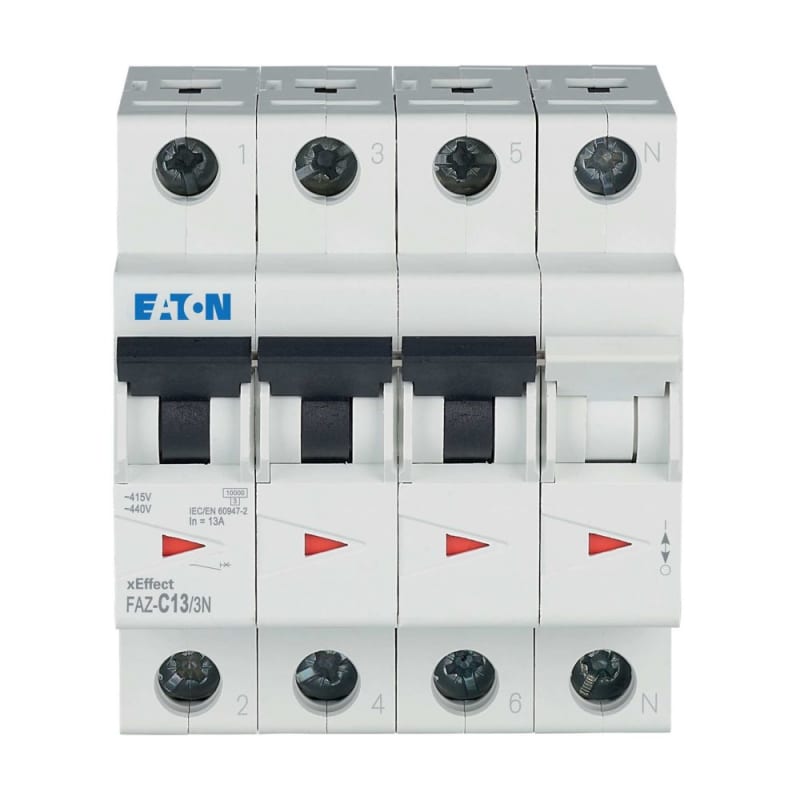

Eaton 278973 Miniature circuit breaker (MCB), 13 A, 3p+N, characteristic: C.

Manufacturer part number (MPN)

278973

EAN / GTIN

4015082789732

HS code

8536.90

Sales unit

pcs

Package quantity

30 pcs

Eaton catalogue number

278973

Depth

80 mm

Height

75.5 mm

Width

72 mm

Weight

0.423 kg

Compliances

RoHS conform

Certifications

IEC/EN 60898; IEC/EN 60947-2; EN45545-2; IEC 61373

Current limiting class

3

Features

Concurrently switching N-neutral; Additional equipment possible

Special features

Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity

Used with

FAZ; Miniature circuit breaker

Amperage Rating

13 A

Application

Switchgear for industrial and advanced commercial applications xEffect - Switchgear for industrial and advanced commercial applications

Number of poles

Three-pole + N

Number of poles (protected)

3

Number of poles (total)

4

Release characteristic

C

Tripping characteristic

C

Type

FAZ Miniature circuit breaker

Ambient operating temperature - max

75 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

8.1 W

Heat dissipation capacity

0 W

Heat dissipation per pole, current-dependent

0 W

Rated operational current for specified heat dissipation (In)

13 A

Static heat dissipation, non-current-dependent

0 W

Admissible back-up fuse - max

125 A gL/gG

Breaking capacity

10 kA (UL1077)

Direction of incoming supply

As required

Frequency rating - max

60 Hz

Frequency rating - min

50 Hz

Lifespan, electrical

10000 operations

Operational switching capacity

7.5 kA

Operational voltage (IEC/EN 60947-2) - max

440 VAC

Overvoltage category

III

Pollution degree

2

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

440 V

Rated operational voltage (Ue) - max

400 V

Rated service short-circuit breaking capacity (IEC/EN 60898-1) - Ics

7.5 kA

Rated service short-circuit breaking capacity (IEC/EN 60947-2) - Ics

7.5 kA

Rated short-circuit breaking capacity (IEC/EN 60898-1) - Icn at 230 V

10 kA

Rated short-circuit breaking capacity (IEC/EN 60898-1)- Icn at 400 V

10 kA

Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 230 V

15 kA

Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 400 V

15 kA

Rated switching capacity (IEC/EN 60898-1)

10 kA

Rated switching capacity (IEC/EN 60947-2)

15 kA

Rated switching capacity (IEC/EN 60947-2) at max voltage rating

10 kA

Selectivity class

3

Voltage rating

240 V AC / 415 V AC

Voltage rating (IEC/EN 60898-1)

415 VAC

Voltage rating (UL)

480Y/277 V

Voltage rating at DC

60 V DC (per pole)

Voltage type

AC

Built-in depth

70.5 mm

Busbar material thickness

0.8 mm - 2 mm

Connectable conductor cross section (multi-wired) - max

25 mm²

Connectable conductor cross section (multi-wired) - min

1 mm²

Connectable conductor cross section (solid-core) - max

25 mm²

Connectable conductor cross section (solid-core) - min

1 mm²

Degree of protection

IP20; IP40 (when fitted)

Enclosure width

80 mm

Frame

45 mm

Mounting Method

Top-hat rail IEC/EN 60715

Mounting position

As required

Mounting width

17.5 mm

Mounting width per pole

17.5 mm

Terminal capacity (control cable)

25 mm² (1x)

Terminal capacity of screw terminals for main cable

10 mm² (2x)

Terminal protection

Finger and hand touch safe, DGUV VS3, EN 50274

Terminals (top and bottom)

Twin-purpose terminals

Width in number of modular spacings

4
