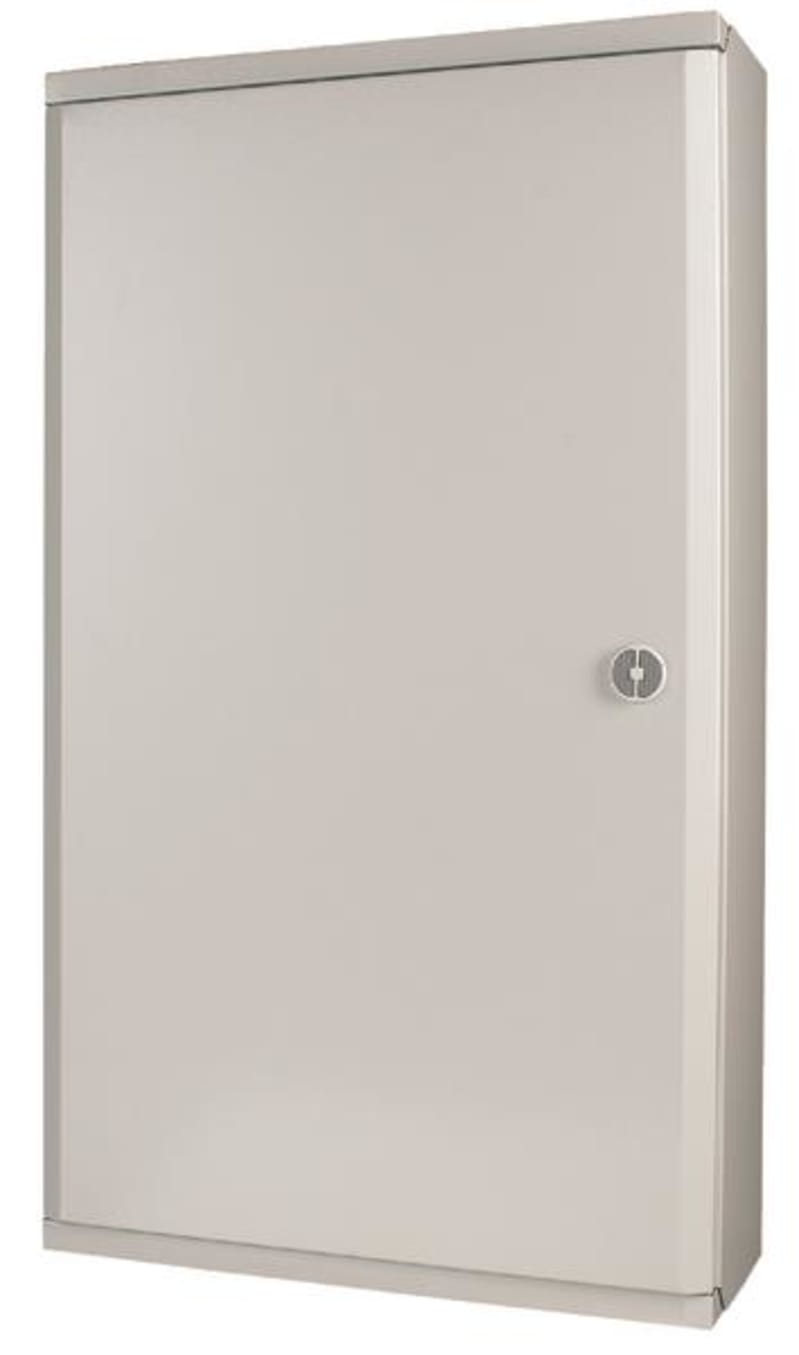

Panel board m/DIN B=800mm H=760
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Panel board m/DIN B=800mm H=760 (part number BP-O-800/7-C) is listed under Enclosures / Distribution Boards. Sales unit: pcs; Eaton catalogue number: 293311; Depth: 262 mm; Height: 760 mm; Width: 800 mm; Weight: 28.5 kg.
Technical Specifications
- Manufacturer part number (MPN)
- BP-O-800/7-C
- EAN / GTIN
- 4015082933111
- Sales unit
- pcs
- Eaton catalogue number
- 293311
- Depth
- 262 mm
- Height
- 760 mm
- Width
- 800 mm
- Weight
- 28.5 kg
- Compliances
- RoHS conform
- Features
- EMC-version
- Functions
- Extension possible; Basic device; Sealable
- RAL-number
- 7035
- Special features
- With DIN-rail Front plate with 45mm cut-out
- Application
- Indoor (installation site)
- Color
- Light gray (RAL 7035); Gray
- Type
- Basic device
- Built-in height
- 775 mm
- Built-in width
- 815 mm
- Closure type
- Other
- Cover/door model
- Closed
- Cover/door type
- Door; Three-point turn-lock; Single
- Enclosure material
- Steel
- Internal depth
- 257.5 mm
- Material
- Sheet steel
- Mounting method
- DIN-rail; Surface mounting; Surface mounted (plaster)
- Number of rows
- 4
- Surface finishing
- With powder coating
- Width in number of modular spacings
- 35
- Built-in depth
- 280 mm
- Degree of protection
- IP30
- Colour
- Grey
- UV resistant
- No
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 257.5 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Steel
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- No
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015082933111
- SAP 1200283423
- Code 82253621
Product Documentation
More from Eaton
Eaton
NH2 Switch-disconnector 3P 400 E
XNH2-FCE-A400
Eaton
Eaton IZMX-AS22-16-1
Eaton
Lamp Front BLUE HIGH IP66
M22-LH-B
Eaton
DG1 variable-frequency drive 230V: 45kW (DG1-32170FB-C54C)
Eaton
Eaton FAZ-K63/4 Miniature Circuit Breaker — 4P, Type K, 63 A, 15 kA
Eaton
variable-frequency drive, DM1-321D6NB-N20B-EM
3-5018-005A
Eaton
LED Strobe light, Orange, 24V (SL7-FL24-A)
Eaton
NH1 Switch-disconnector 3P250 B/E
XNH1-FCE-S250
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy BP-O-800/7-C?
- BP-O-800/7-C can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is BP-O-800/7-C.
- What is the HS code for BP-O-800/7-C?
- The customs tariff (HS) code for BP-O-800/7-C is 8538.10.
- Who manufactures BP-O-800/7-C?
- BP-O-800/7-C is a Eaton product in the Enclosures range.
- Is a datasheet available for BP-O-800/7-C?
- Yes — the BP-O-800/7-C datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for BP-O-800/7-C?
- The minimum order quantity is 1.
- Is BP-O-800/7-C available?
- Yes — BP-O-800/7-C is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
