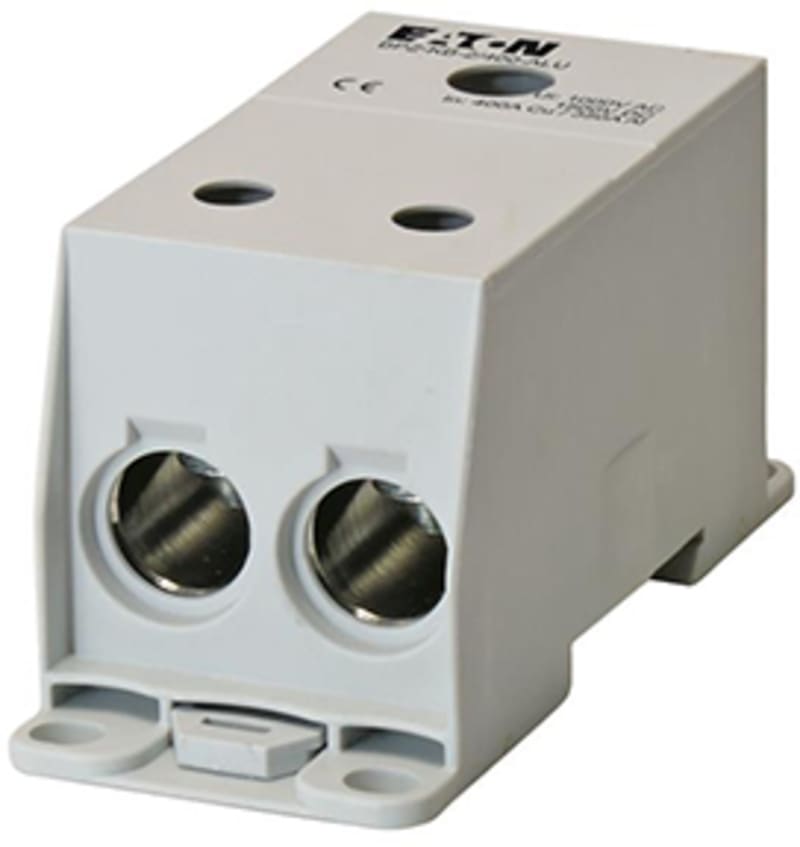

Terminal 1POL 400A (BPZ-KB-2/400-ALU)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Terminal 1POL 400A (BPZ-KB-2/400-ALU) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 50 pcs; Eaton catalogue number: 178403; Depth: 50.2 mm; Height: 103 mm; Width: 44.4 mm.
Technical Specifications
- Manufacturer part number (MPN)
- BPZ-KB-2/400-ALU
- EAN / GTIN
- 4015081737062
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Eaton catalogue number
- 178403
- Depth
- 50.2 mm
- Height
- 103 mm
- Width
- 44.4 mm
- Weight
- 0.585 kg
- Compliances
- RoHS conform
- Certifications
- IEC 60 947 -7 -1
- Comparative tracking index (CTI)
- 600 V
- Flame classification (UL 94)
- V-0
- Functions
- Additional equipment
- Amperage rating
- 400 A
- Number of poles
- Single-pole
- Heat deflection temperature
- 100 °C
- Rated operation current (Ie) Al (IEC)
- 350 A
- Rated operation current (Ie) Cu (IEC)
- 400 A
- Rated peak withstand current
- 50 kA
- Rated short-time withstand current (Icw)
- 21 kA
- Voltage rating at AC Al (IEC) - max
- 1000 VAC
- Voltage rating at AC Cu (IEC) - max
- 1000 VAC
- Voltage rating at DC Al (IEC) - max
- 1500 VDC
- Voltage rating at DC Cu (IEC) - max
- 1500 VDC
- Clamp material
- Nickel plated; Brass
- Conductor cross section (solid, solid-strand) - max
- 240 mm²
- Conductor cross section (solid, solid-strand) - min
- 50 mm²
- Housing color
- Light gray (RAL 7035)
- Housing material
- PA66
- Material
- Aluminum
- Mounting method
- Surface mounting; Flush mounting; Floor standing distribution board
- Mounting position
- Universal
- Number of clamp positions per pole
- 3
- Number of clamping units per pole
- 3
- Degree of protection
- IP10
- Torque rating
- 25 Nm / 221.2 lbf (incoming). 19 Nm / 168.1 lbf (outgoing). Allen key 8 mm
- Conductor cross section solid (solid, stranded)
- 50–240 mm²
- Max. rated current
- 400 A
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081737062
- SAP 1200562697
- Code 82906096
