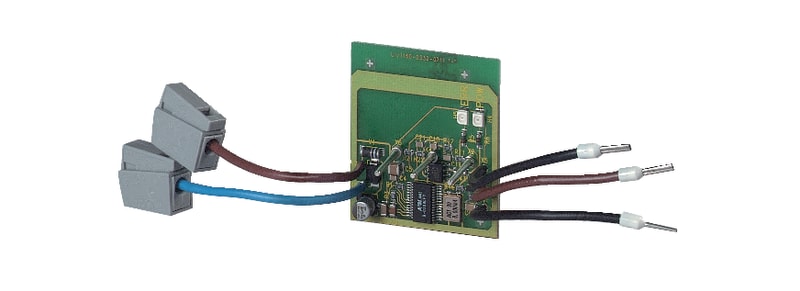

Adapter for RMQ-Titan ENCLOSEDMOUNTING
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Adapter for RMQ-Titan ENCLOSEDMOUNTING (part number M22-ASI-C) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 231271; Depth: 40 mm; Height: 30 mm; Width: 40 mm; Weight: 0.017 kg.
Technical Specifications
- Manufacturer part number (MPN)
- M22-ASI-C
- EAN / GTIN
- 4015082312718
- Sales unit
- pcs
- Eaton catalogue number
- 231271
- Depth
- 40 mm
- Height
- 30 mm
- Width
- 40 mm
- Weight
- 0.017 kg
- Certifications
- CSA-C22.2 No. 94-91; DIN EN 50295; IEC/EN 60947; UL File No.: E29184; CSA Class No.: 3211-03; UL; IEC/EN 60947-5; UL Category Control No.: NKCR; CSA File No.: 012528; UL 508; CSA-C22.2 No. 14-05; CSA; CE
- Bezel color
- Titanium
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- No
- Static heat dissipation, non-current-dependent Pvs
- 1.3 W
- No-load current
- 30 A
- Output voltage
- 24 V DC (-15/+10 %)
- Power consumption
- 40 mA
- Rated operational voltage
- 26.5 - 31.6 V DC (AS-Interface specification)
- Degree of protection
- IP00
- Input
- 2 Inputs (22 V/5 mA, protected against short-circuit); Inputs for 2 contacts
- Mounting position
- As required
- Output
- 1 (normally 19 V/8 mA) Output, protected against short-circuit; Output for 1 LED element: M22-LED-...
- Product category
- Accessories
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082312718
- SAP 1200563110
- Code 82903941
Product Documentation
