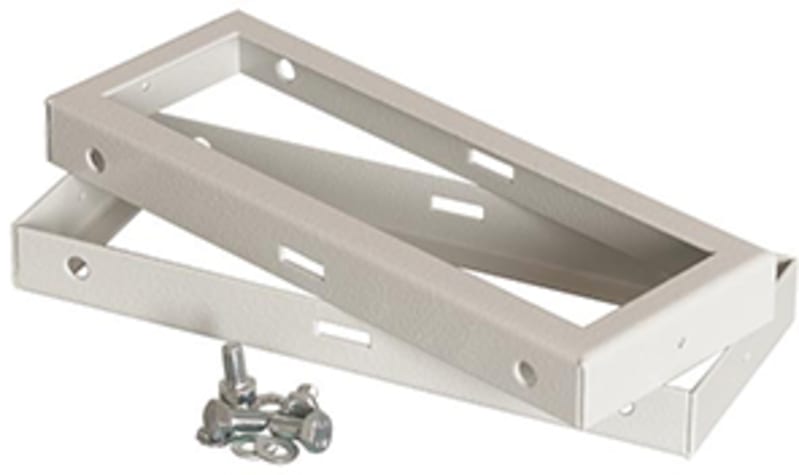

Eaton XVTL-MP/PH-8/3 Horizontal Partition 800x300 mm for XVTL Enclosure
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton XVTL-MP/PH-8/3 — horizontal partition plate for XVTL enclosures 800 mm wide by 300 mm deep. Galvanized stainless steel at 12.5 mm modular spacing, suitable for internal separation forms 2a/2b, 3a/3b and 4a/4b. Supplied without cable entries or lock.
Technical Specifications
- Manufacturer part number (MPN)
- XVTL-MP/PH-8/3
- EAN / GTIN
- 4015081707843
- Sales unit
- pcs
- Eaton catalogue number
- 174322
- Depth
- 179 mm
- Height
- 50 mm
- Width
- 833.6 mm
- Weight
- 3.1 kg
- Compliances
- RoHS conform
- Construction type
- Individual part
- Surface finishing
- Galvanized
- Color
- Stainless steel
- Modular spacing
- 12.5 mm
- Number of height units
- 0
- RAL-number
- 0
- Suitable for enclosure building length/depth
- 300 mm
- Suitable for enclosure building width
- 800 mm
- Material
- Steel
- Suitable for
- Internal separation form 3a; Internal separation form 4a; Internal separation form 3b; Internal separation form 2b; Internal separation form 2a; Internal separation form 4b
- Suitable for enclosure building depth
- 300 mm
- Colour
- Stainless steel
- With cable entry
- No
- With lock
- No
- For internal separation form 2a
- Yes
- For internal separation form 2b
- Yes
- For internal separation form 3a
- Yes
- For internal separation form 3b
- Yes
- For internal separation form 4a
- Yes
- For internal separation form 4b
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081707843
- SAP 1200601822
- Code 82980000
Product Documentation
More from Eaton
Eaton
Complete PKE12 ST.TRIP 1-4A
PKE12/XTU-4
Eaton
Corner Bracket (XVTL-BRA)
Eaton
Position safety switch LSM-11
Eaton
Eaton FAZ-B8/2 Miniature Circuit Breaker — 2P, Type B, 8 A, 15 kA
Eaton
Rear Wall xE xVTL H2000 B600
XVTL-R-6/20
Eaton
Pl. backplate HxB=760X800 mm
BPZ-RPP-800/7
Eaton
Varistor Attenuator DILM32-XSPV130
Eaton
Contactor DILA-40(230V50HZ,240V60HZ)-PI
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XVTL-MP/PH-8/3?
- XVTL-MP/PH-8/3 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is XVTL-MP/PH-8/3.
- What is the HS code for XVTL-MP/PH-8/3?
- The customs tariff (HS) code for XVTL-MP/PH-8/3 is 8538.10.
- Who manufactures XVTL-MP/PH-8/3?
- XVTL-MP/PH-8/3 is a Eaton product in the Enclosures range.
- Is a datasheet available for XVTL-MP/PH-8/3?
- Yes — the XVTL-MP/PH-8/3 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XVTL-MP/PH-8/3?
- The minimum order quantity is 1.
- Is XVTL-MP/PH-8/3 available?
- Yes — XVTL-MP/PH-8/3 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
