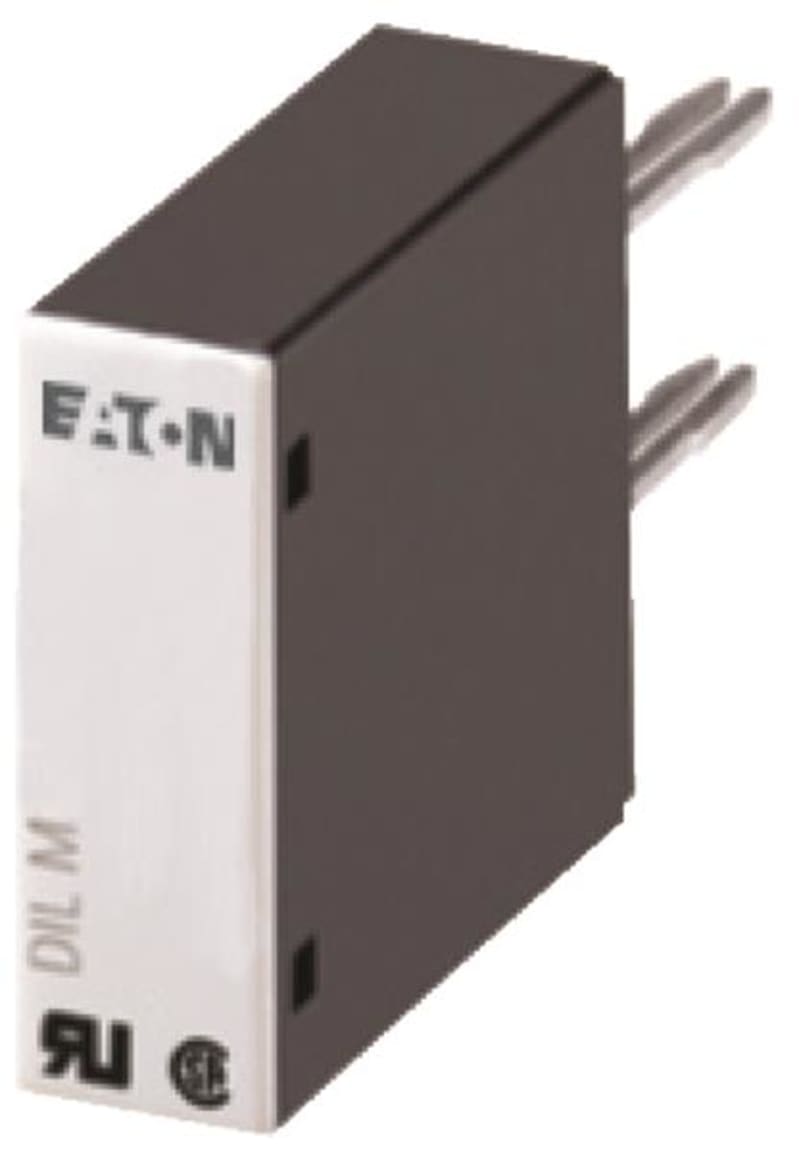

Varistor Attenuator DILM32-XSPV130

Eaton DILM32-XSPV130 Varistor attenuator, 48 - 130 AC V, Used with: DILM17 - DILM32, DILMP32 - DILMP45.

Manufacturer part number (MPN)

DILM32-XSPV130

EAN / GTIN

4015082812133

Sales unit

pcs

Package quantity

10 pcs

Eaton catalogue number

281213

Depth

43 mm

Height

25 mm

Width

9 mm

Weight

0.005 kg

Certifications

CSA File No.: 256465; UL File No.: E29184; CE; UL Recognized; CSA-C22.2 No. 14-05; UL 508; CSA; CSA Class No.: 3211-07; IEC/EN 60947-4-1; UL Category Control No.: NKCR2, NKCR8

Catalog Notes

With DC operated contactors and with DILM115 and DILM150 the suppressor is integrated.

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Functions

Varistor (voltage-sensitive resistor)

Product category

Accessories

Used with

DILL… and DILM32-XSPV130

Voltage type

AC

Rated control supply voltage (Us) at AC, 50 Hz - max

130 V

Rated control supply voltage (Us) at AC, 50 Hz - min

48 V

Rated control supply voltage (Us) at AC, 60 Hz - max

130 V

Rated control supply voltage (Us) at AC, 60 Hz - min

48 V

Rated control supply voltage AC 50 Hz

48–130 V

Rated control supply voltage AC 60 Hz

48–130 V

With LED indication

No

Operating voltage AC 50 Hz

48–130 V

Operating voltage AC 60 Hz

48–130 V

Voltage type for actuating

AC

Country of origin

Germany

HS Code

8538.90

• EAN 4015082812133
• SAP 1200236510
• Code 82234376
