Eaton

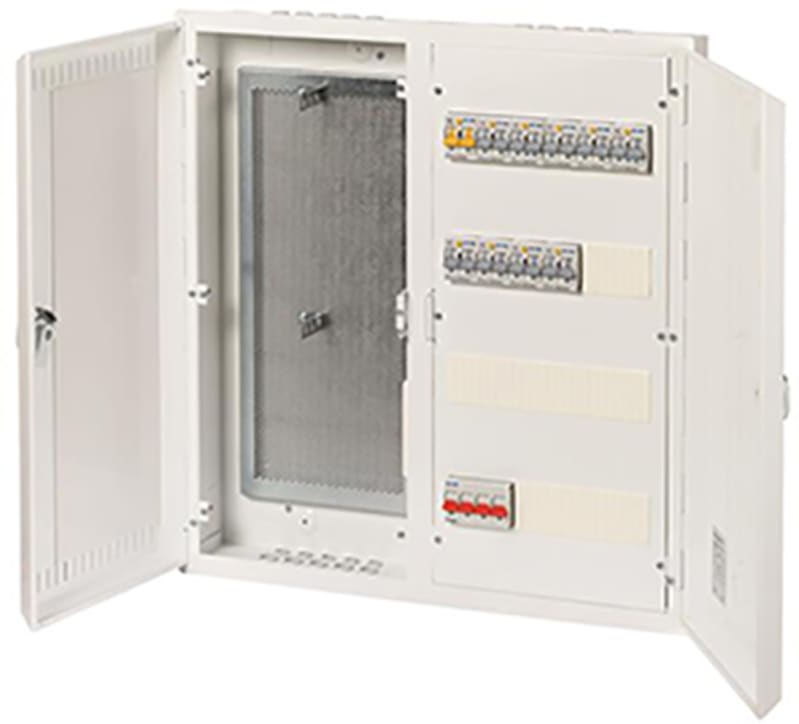

Ibox TN 40A 12 circuits
Part numberI-48/4R-3-SBS-PKP-40/4-12KEAN / GTIN9010238092426HS code8538.10
Enclosures
Distribution Boards
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton I-48/4R-3-SBS-PKP-40/4-12K In-48/4R-3-SBS-PKP-40/4-12K.
Technical Specifications
- Manufacturer part number (MPN)
- I-48/4R-3-SBS-PKP-40/4-12K
- EAN / GTIN
- 9010238092426
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Eaton catalogue number
- 195369
- Depth
- 118 mm
- Height
- 603 mm
- Width
- 570 mm
- Weight
- 15 kg
- Compliances
- RoHS conform
- Features
- EMC-version; Earthing terminal block; Signal passing door
- Fitted with
- Mounting plate
- Enclosure material
- Steel
- Built-in height
- 603 mm
- Built-in width
- 570 mm
- Built-in depth
- 118 mm
- Closure type
- Other
- Cover/door model
- Closed
- Cover/door type
- Door; Double
- RAL-number
- 9016
- Width in number of modular spacings
- 12
- Color
- White
- Number of rows
- 4
- Degree of protection
- IP30
- Functions
- Sealable
- Mounting method
- Hollow wall; DIN-rail
- Internal depth
- 108 mm
- Number of openings for socket outlets
- 0
- Rated current
- 40 A
- Colour
- White
- UV resistant
- No
- With mounting plate
- Yes
- Type of covering
- Door
- EMC-version
- Yes
- Extension possible
- No
- Inner depth
- 108 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Steel
- With N-disconnect slide
- No
- Type of door
- Double
- Transparent cover/door
- No
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- Yes
- Neutral terminal block
- No
- Signal passing door
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 9010238092426
- SAP 1200163266
- Code 82086117
Product Documentation
Document preview: Ibox TN 40A 12 kurser (I-48/4R-3-SBS-PKP-40/4-12K) — Specification Data Sheet (OEM)
