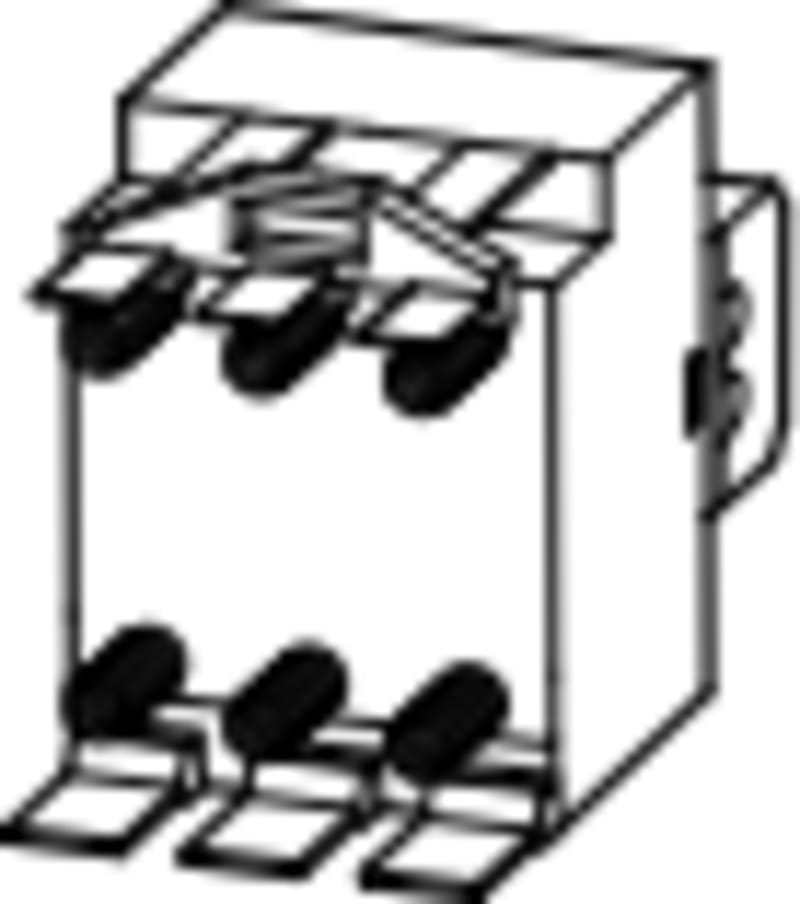

Adapter for RMQ-Titan Frontmont

Eaton Adapter for RMQ-Titan Frontmont (part number M22-ASI) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 231269; Depth: 40 mm; Height: 30 mm; Width: 40 mm; Weight: 0.023 kg.

Manufacturer part number (MPN)

M22-ASI

EAN / GTIN

4015082312695

Sales unit

pcs

Eaton catalogue number

231269

Depth

40 mm

Height

30 mm

Width

40 mm

Weight

0.023 kg

Certifications

UL File No.: E29184; CE; CSA; CSA-C22.2 No. 14-05; DIN EN 50295; UL; UL 508; IEC/EN 60947; CSA Class No.: 3211-03; CSA File No.: 012528; UL Category Control No.: NKCR; IEC/EN 60947-5; CSA-C22.2 No. 94-91

Bezel color

Titanium

Fitted with

AS-Interface connector as insulation piercing terminal

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Static heat dissipation, non-current-dependent Pvs

1.3 W

No-load current

30 A

Output voltage

24 V DC (-15/+10 %)

Power consumption

40 mA

Rated operational voltage

26.5 - 31.6 V DC (AS-Interface specification)

Degree of protection

IP20

Input

2 Inputs (22 V/5 mA, protected against short-circuit); Inputs for 2 contact elements (M22-K01 (N/C), M22-K10 (N/O))

Mounting position

As required

Output

1 (normally 19 V/8 mA) Output, protected against short-circuit; Output for 1 LED element: M22-LED-...

Product category

Accessories

Country of origin

Germany

HS Code

8538.90

• EAN 4015082312695
• SAP 1200563108
• Code 82903719
