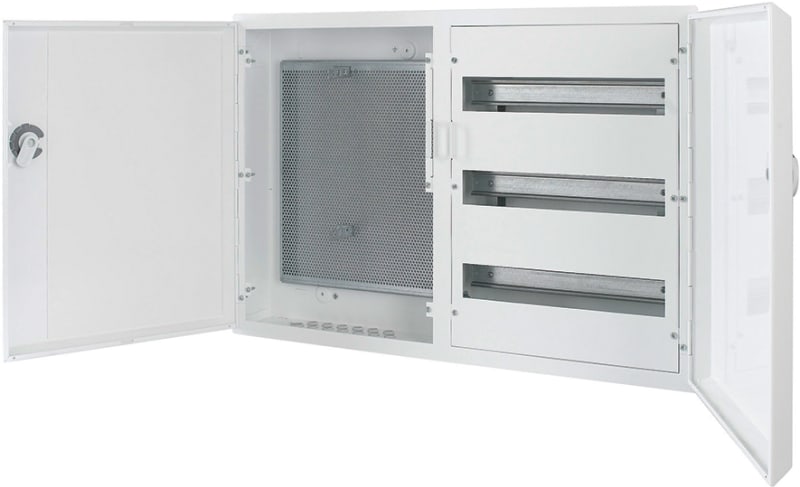

Eaton Y7-187896 Side-by-Side 3-Row Consumer Unit with Mounting Plate, 110 mm Depth
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton Y7-187896 is a hollow-wall consumer unit with three DIN-rail rows and an integrated low-voltage/eCom compartment. The white steel enclosure measures 570 x 478 x 143 mm with a built-in depth of 110 mm, single closed door and IP30 protection. It provides 12 modular spacings per row with earthing terminal block and is EMC-ready with signal-passing door for residential and light commercial distribution.
Technical Specifications
- Manufacturer part number (MPN)
- Y7-187896
- EAN / GTIN
- 4015081855810
- HS code
- 8536.90
- Sales unit
- pcs
- Mounting method
- Hollow wall
- Colour
- White
- Width
- 570 mm
- UV resistant
- No
- Height
- 478 mm
- Depth
- 143 mm
- RAL-number
- 9016
- With mounting plate
- Yes
- Built-in depth
- 110 mm
- Number of rows
- 3
- Built-in height
- 478 mm
- Type of covering
- Door
- Built-in width
- 570 mm
- EMC-version
- Yes
- Extension possible
- No
- Inner depth
- 133 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Steel
- With N-disconnect slide
- No
- Width in number of modular spacings
- 12
- Type of door
- Single
- Degree of protection (IP)
- IP30
- Transparent cover/door
- No
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- Yes
- Neutral terminal block
- No
- Signal passing door
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081855810
- SAP 1200010827
- Code 81169854
Product Documentation
