Eaton FAZ-D0.5/3N Miniature Circuit Breaker — 3P+N, Type D, 0.5 A, 15 kA
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton FAZ-D0.5/3N miniature circuit breaker (MCB) from the xEffect FAZ range. 3-pole + neutral (1+N per module), rated current In = 0.5 A, Type D tripping characteristic. Rated ultimate short-circuit breaking capacity Icu = 15 kA to IEC/EN 60947-2; rated operational voltage Ue 230/400 V AC. DIN-rail (35 mm) modular device for overload and short-circuit protection of cables and equipment. Conforms to IEC/EN 60947-2. Eaton type FAZ-D0.5/3N, EAN 4015082789824, Eaton/SAP material 1200607195, catalogue code 82998488.
Technical Specifications
- Manufacturer
- Eaton
- Product family
- xEffect FAZ
- Type designation
- FAZ-D0.5/3N
- Manufacturer part number (MPN)
- FAZ-D0.5/3N
- EAN / GTIN
- 4015082789824
- Eaton / SAP material no.
- 1200607195
- Poles
- 3P+N
- Tripping characteristic
- Type D
- Rated current In
- 0.5 A
- Rated ultimate breaking capacity Icu
- 15 kA
- Rated operational voltage Ue
- 230/400 V AC
- Mounting
- DIN rail (35 mm)
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 4015082789824
- SAP 1200607195
- Code 82998488
Product Documentation
More from Eaton
Eaton

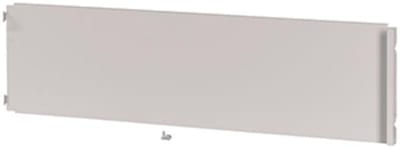

Front plate xE Light (XLMFGC256)
Eaton

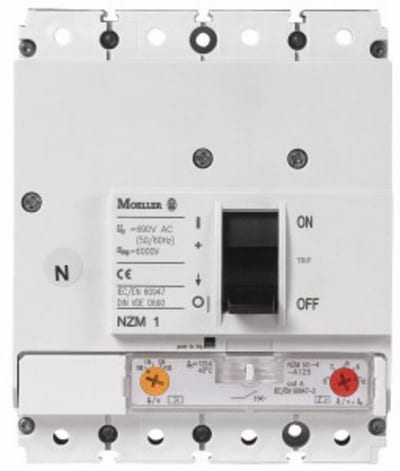

Eaton NZMN1-4-A25 Molded-Case Circuit Breaker 4-Pole 25A 50KA
Eaton

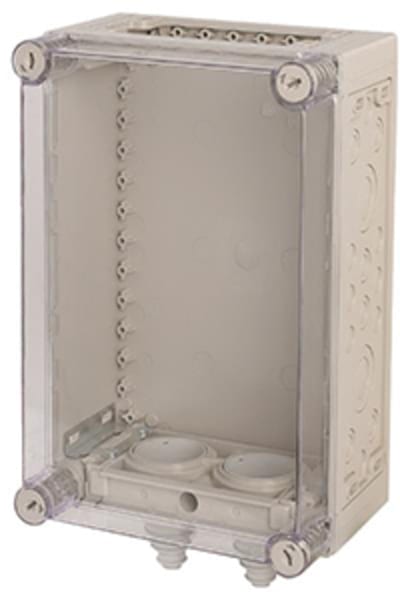

Enclosures H×W×D=375X250X175MM (KST34-150)
Eaton

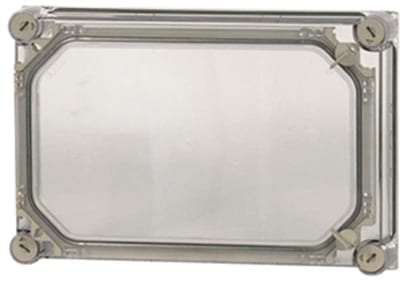

Cover H×W×D=250X375X50MM (D150-CI43/T)
Eaton

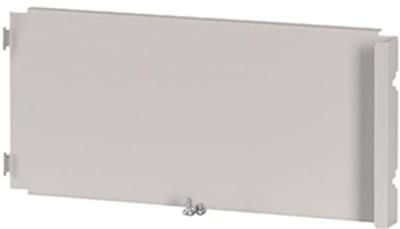

Front plate xE Light (XLMFGC28)
Eaton
Front plate xE Light (XLMFGC156)
Eaton
Position Switch, LS-S02A
116703
Eaton
K.el.Darw B.m with Red.led 2NO/NC
M22-SWD-K22LEDC-R
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy FAZ-D0.5/3N?
- FAZ-D0.5/3N can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is FAZ-D0.5/3N.
- What is the HS code for FAZ-D0.5/3N?
- The customs tariff (HS) code for FAZ-D0.5/3N is 8536.20.
- Who manufactures FAZ-D0.5/3N?
- FAZ-D0.5/3N is a Eaton product in the Electrical Components range.
- Is a datasheet available for FAZ-D0.5/3N?
- Yes — the FAZ-D0.5/3N datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for FAZ-D0.5/3N?
- The minimum order quantity is 1.
- Is FAZ-D0.5/3N available?
- Yes — FAZ-D0.5/3N is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
