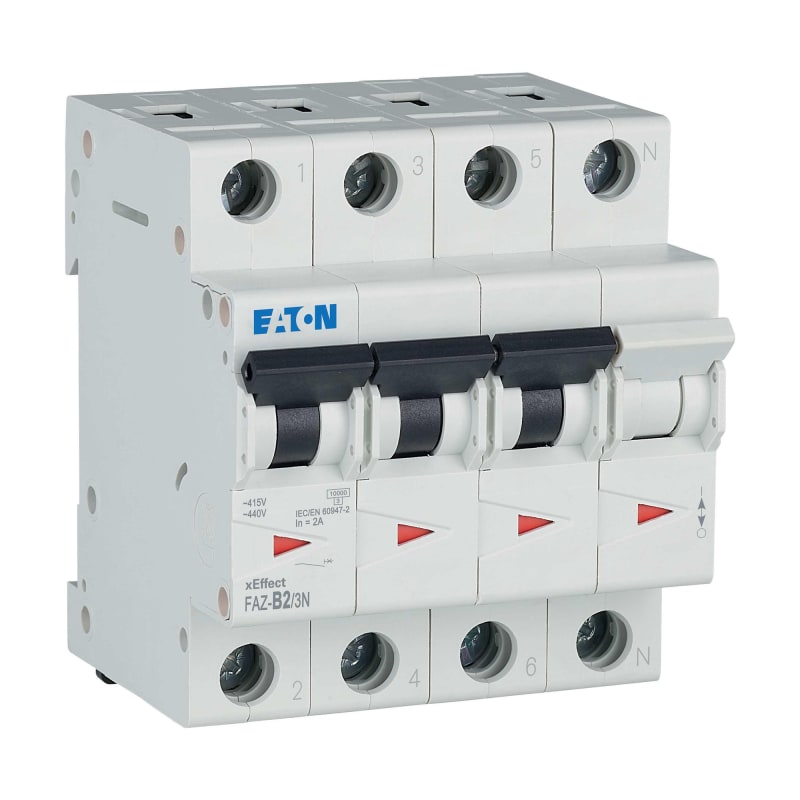

Eaton FAZ-B2/3N Miniature Circuit Breaker — 3P+N, Type B, 2 A, 15 kA

Eaton FAZ-B2/3N miniature circuit breaker (MCB) from the xEffect FAZ range. 3-pole + neutral (1+N per module), rated current In = 2 A, Type B tripping characteristic. Rated ultimate short-circuit breaking capacity Icu = 15 kA to IEC/EN 60947-2; rated operational voltage Ue 230/400 V AC. DIN-rail (35 mm) modular device for overload and short-circuit protection of cables and equipment. Conforms to IEC/EN 60947-2. Eaton type FAZ-B2/3N, EAN 4015082789374, Eaton/SAP material 1200607139, catalogue code 82995586, El-nr (NO) 278937.

Manufacturer

Eaton

Product family

xEffect FAZ

Type designation

FAZ-B2/3N

Manufacturer part number (MPN)

FAZ-B2/3N

EAN / GTIN

4015082789374

Eaton / SAP material no.

1200607139

El-nummer (NO)

278937

Poles

3P+N

Tripping characteristic

Type B

Rated current In

2 A

Rated ultimate breaking capacity Icu

15 kA

Rated operational voltage Ue

230/400 V AC

Mounting

DIN rail (35 mm)

Standard

IEC/EN 60947-2

HS code

8536.20

Sales unit

pcs

Eaton catalogue number

278937

Depth

80 mm

Height

75.5 mm

Width

72 mm

Weight

0.43 kg

Compliances

RoHS conform

Certifications

EN45545-2; IEC 61373

Current limiting class

3

Features

Concurrently switching N-neutral; Additional equipment possible

Special features

Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity

Used with

Miniature circuit breaker; FAZ

Amperage Rating

2 A

Application

Switchgear for industrial and advanced commercial applications xEffect - Switchgear for industrial and advanced commercial applications

Number of poles

Three-pole + N

Number of poles (protected)

3

Number of poles (total)

4

Release characteristic

B

Type

FAZ Miniature circuit breaker

Ambient operating temperature - max

75 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

4.3 W

Heat dissipation capacity

0 W

Heat dissipation per pole, current-dependent

0 W

Rated operational current for specified heat dissipation (In)

2 A

Static heat dissipation, non-current-dependent

0 W

Breaking capacity

10 kA (UL1077)

Frequency rating - max

60 Hz

Frequency rating - min

50 Hz

Operational voltage (IEC/EN 60947-2) - max

440 VAC

Overvoltage category

III

Pollution degree

2

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

440 V

Rated operational voltage (Ue) - max

400 V

Rated service short-circuit breaking capacity (IEC/EN 60898-1) - Ics

7.5 kA

Rated service short-circuit breaking capacity (IEC/EN 60947-2) - Ics

7.5 kA

Rated short-circuit breaking capacity (IEC/EN 60898-1) - Icn at 230 V

10 kA

Rated short-circuit breaking capacity (IEC/EN 60898-1)- Icn at 400 V

10 kA

Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 230 V

15 kA

Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 400 V

15 kA

Rated switching capacity (IEC/EN 60898-1)

10 kA

Rated switching capacity (IEC/EN 60947-2)

15 kA

Rated switching capacity (IEC/EN 60947-2) at max voltage rating

10 kA

Voltage rating (IEC/EN 60898-1)

415 VAC

Voltage type

AC

Built-in depth

70.5 mm

Connectable conductor cross section (multi-wired) - max

25 mm²

Connectable conductor cross section (multi-wired) - min

1 mm²

Connectable conductor cross section (solid-core) - max

25 mm²

Connectable conductor cross section (solid-core) - min

1 mm²

Degree of protection

IP20

Width in number of modular spacings

4

Document Name

Description Action

Standard

IEC/EN 60947-2

HS Code

8536.20

• EAN 4015082789374
• SAP 1200607139
• Code 82995586
