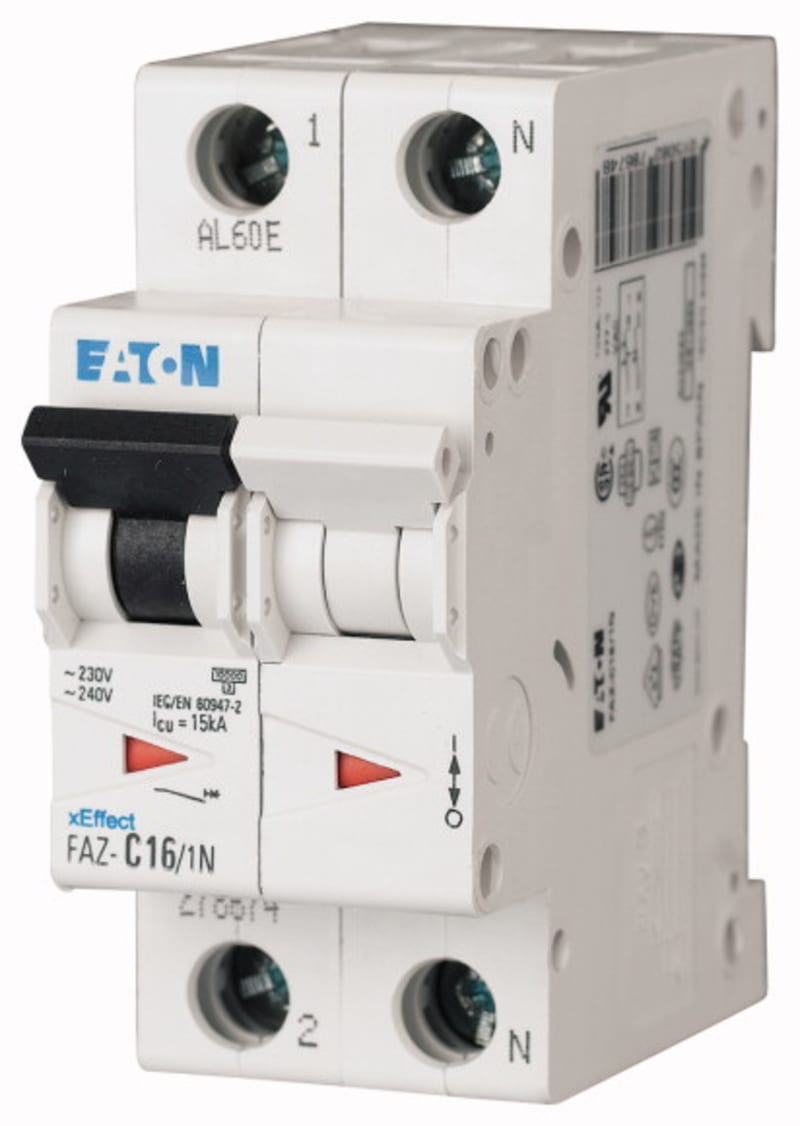

Eaton FAZ-K6/1N Miniature Circuit Breaker — 1P+N, Type K, 6 A, 15 kA

Eaton FAZ-K6/1N miniature circuit breaker (MCB) from the xEffect FAZ range. 1-pole + neutral (1+N per module), rated current In = 6 A, Type K tripping characteristic. Rated ultimate short-circuit breaking capacity Icu = 15 kA to IEC/EN 60947-2; rated operational voltage Ue 230/400 V AC. DIN-rail (35 mm) modular device for overload and short-circuit protection of cables and equipment. Conforms to IEC/EN 60947-2. Eaton type FAZ-K6/1N, EAN 4015082787080, Eaton/SAP material 1200236895, catalogue code 82233329.

Manufacturer

Eaton

Product family

xEffect FAZ

Type designation

FAZ-K6/1N

Manufacturer part number (MPN)

FAZ-K6/1N

EAN / GTIN

4015082787080

Eaton / SAP material no.

1200236895

Poles

1P+N

Tripping characteristic

Type K

Rated current In

6 A

Rated ultimate breaking capacity Icu

15 kA

Rated operational voltage Ue

230/400 V AC

Mounting

DIN rail (35 mm)

Standard

IEC/EN 60947-2

HS code

8536.20

Sales unit

pcs

Eaton catalogue number

278708

Depth

80 mm

Height

75.5 mm

Width

36 mm

Weight

0.197 kg

Compliances

RoHS conform

Certifications

EN45545-2; IEC 61373

Current limiting class

3

Features

Concurrently switching N-neutral; Additional equipment possible

Special features

Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity

Amperage Rating

6 A

Application

Switchgear for industrial and advanced commercial applications xEffect - Switchgear for industrial and advanced commercial applications

Number of poles

Single-pole + N

Number of poles (protected)

1

Number of poles (total)

2

Release characteristic

K

Type

FAZ Miniature circuit breaker

Ambient operating temperature - max

75 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

2.5 W

Heat dissipation capacity

0 W

Heat dissipation per pole, current-dependent

0 W

Rated operational current for specified heat dissipation (In)

6 A

Static heat dissipation, non-current-dependent

0 W

Frequency rating - max

60 Hz

Frequency rating - min

50 Hz

Overvoltage category

III

Pollution degree

2

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

440 V

Rated operational voltage (Ue) - max

230 V

Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 230 V

15 kA

Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 400 V

15 kA

Rated switching capacity (IEC/EN 60947-2)

15 kA

Voltage rating

240 V AC

Voltage type

AC

Built-in depth

70.5 mm

Connectable conductor cross section (multi-wired) - max

25 mm²

Connectable conductor cross section (multi-wired) - min

1 mm²

Connectable conductor cross section (solid-core) - max

25 mm²

Connectable conductor cross section (solid-core) - min

1 mm²

Degree of protection

IP20

Width in number of modular spacings

2

Document Name

Description Action

Standard

IEC/EN 60947-2

HS Code

8536.20

• EAN 4015082787080
• SAP 1200236895
• Code 82233329
