Eaton FAZ-D0.5/1N Miniature Circuit Breaker — 1P+N, Type D, 0.5 A, 15 kA
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton FAZ-D0.5/1N miniature circuit breaker (MCB) from the xEffect FAZ range. 1-pole + neutral (1+N per module), rated current In = 0.5 A, Type D tripping characteristic. Rated ultimate short-circuit breaking capacity Icu = 15 kA to IEC/EN 60947-2; rated operational voltage Ue 230/400 V AC. DIN-rail (35 mm) modular device for overload and short-circuit protection of cables and equipment. Conforms to IEC/EN 60947-2. Eaton type FAZ-D0.5/1N, EAN 4015082786816, Eaton/SAP material 1200236907, catalogue code 82233386.
Technical Specifications
- Manufacturer
- Eaton
- Product family
- xEffect FAZ
- Type designation
- FAZ-D0.5/1N
- Manufacturer part number (MPN)
- FAZ-D0.5/1N
- EAN / GTIN
- 4015082786816
- Eaton / SAP material no.
- 1200236907
- Poles
- 1P+N
- Tripping characteristic
- Type D
- Rated current In
- 0.5 A
- Rated ultimate breaking capacity Icu
- 15 kA
- Rated operational voltage Ue
- 230/400 V AC
- Mounting
- DIN rail (35 mm)
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 4015082786816
- SAP 1200236907
- Code 82233386
Product Documentation
More from Eaton
Eaton

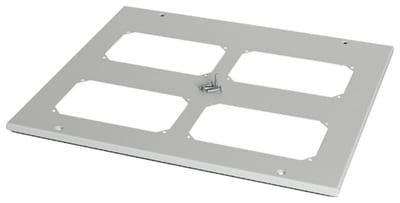

Top/bottom plate F3A xE Light (XLST5F656)
Eaton

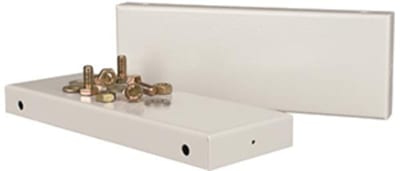

Hj.protection HXD=100X270MM (BPZ-SS-1/270-W)
Eaton

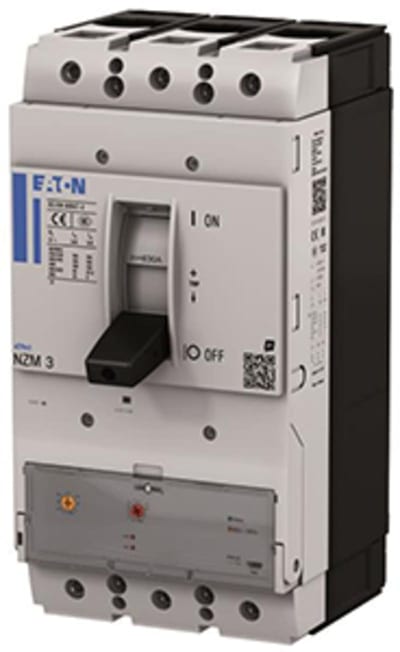

Eaton NZMN3-4-AX630/VAR-AVE Molded-Case Circuit Breaker 4-Pole 630A 50KA
Eaton

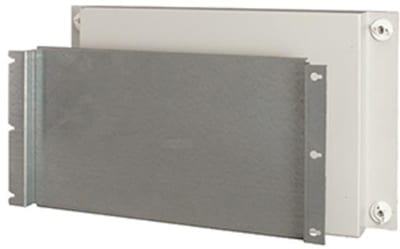

Mounting Set HxB=300X1000MM
BPZ-KIT-MPL-1000
Eaton

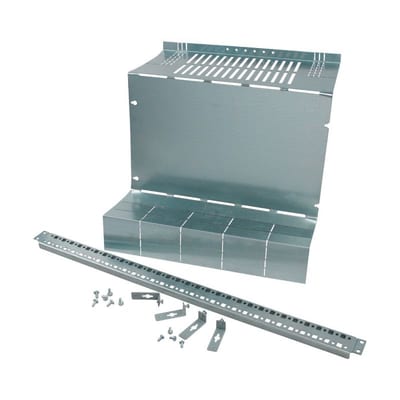

Partition Plate SL xE Main B600 D800
XPLB0608
Eaton

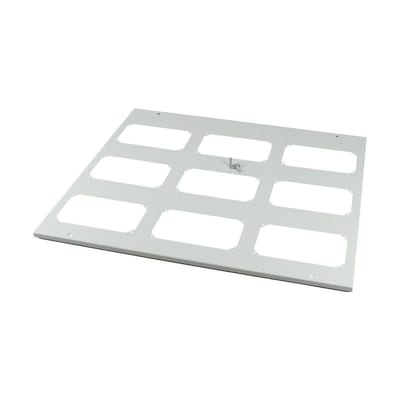

Top/bottom plate F3A xE Light (XLST5F858)
Eaton
Eaton IZMX-PXRV-M-1
Eaton

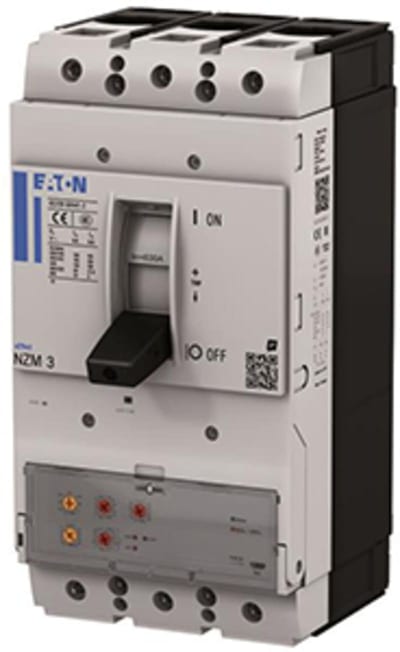

Eaton NZMH3-4-VX630/VAR-AVE Molded-Case Circuit Breaker 4-Pole 630A 150KA
