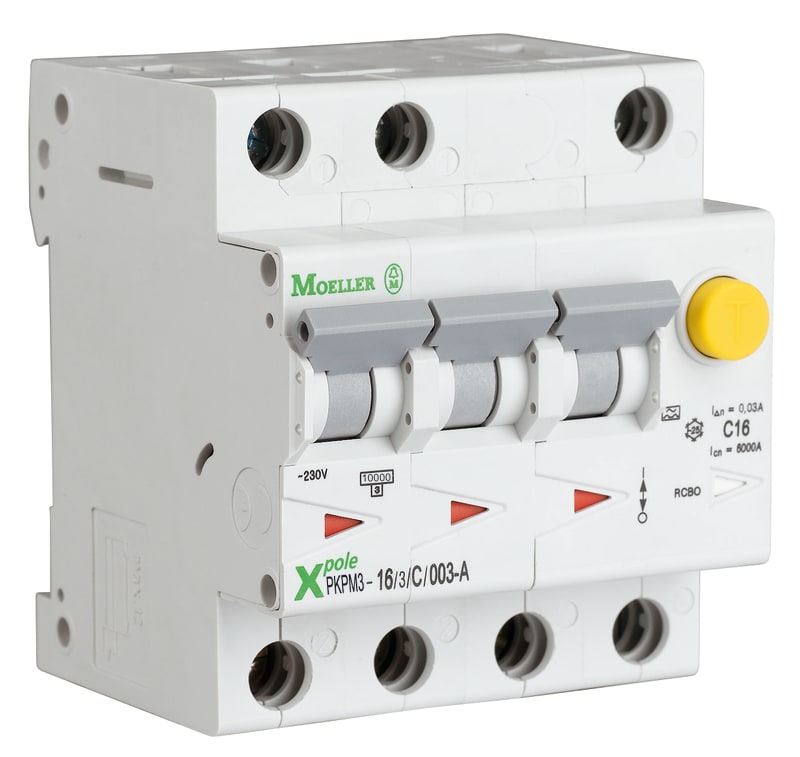

Residual current circuit breaker with overcurrent 16A 3P C 30MAA (PKPM3-16/3/C/003-A)

Eaton PKPM3-16/3/C/003-A Residual current circuit breaker with overcurrent, C-characteristic (G)/A-type 3-pole, 16 A, 30mA, grey.

Manufacturer part number (MPN)

PKPM3-16/3/C/003-A

EAN / GTIN

4015081079544

HS code

8536.90

Sales unit

pcs

Package quantity

3 pcs

Eaton catalogue number

108328

Depth

86 mm

Height

75 mm

Width

73 mm

Weight

0.39 kg

Compliances

CE Marked; RoHS conform

Certifications

CE

Voltage rating

230 V

Surge current capacity

0.25 kA

Voltage type

AC

Width in number of modular spacings

4

Features

Concurrently switching N-neutral

Operating ambient temperature - max

40 °C

Operating ambient temperature - min

-25 °C

Product application

Switchgear for industrial and advanced commercial applications

Product range

PKPM3

Rated current

16 A

Rated operational current for specified heat dissipation (In)

16 A

Rated switching capacity (IEC/EN 61009)

10 kA

Static heat dissipation, non-current-dependent

0 W

Tripping characteristic

C

Built-in depth

70 mm

Current limiting class

3

Rated short-circuit breaking capacity (EN 60947-2)

0 kA

Ambient operating temperature - max

40 °C

Ambient operating temperature - min

-25 °C

Fault current rating

0.03 A

Heat dissipation capacity

0 W

Heat dissipation per pole, current-dependent

0 W

Number of poles (protected)

3

Number of poles (total)

3

Rated operational voltage (Ue) - max

400 V

Rated switching capacity

10 kA

Basic function

Combined RCD/MCB devices

Mounting Method

DIN rail

Equipment heat dissipation, current-dependent

8.6 W

Rated impulse withstand voltage (Uimp)

4 kV

Degree of protection

IP20

Tripping

Non-delayed

Overvoltage category

III

Pollution degree

2

Impulse withstand current

Partly surge-proof, 250 A

Leakage current type

A

Release characteristic

C

Sensitivity type

Type A, pulse-current sensitive

Frequency rating

50 Hz

Rated insulation voltage (Ui)

500 V

Connectable conductor cross section (solid-core) - min

1 mm²

Connectable conductor cross section (solid-core) - max

25 mm²

Connectable conductor cross section (multi-wired) - min

1 mm²

Connectable conductor cross section (multi-wired) - max

25 mm²

Rated short-circuit breaking capacity (EN 61009)

10 kA

Rated short-circuit breaking capacity (EN 61009-1)

10 kA

Number of poles

Three-pole

Disconnection characteristic

Undelayed

Type

RCBO

Application

Switchgear for residential and commercial applications

HS Code

8536.90
