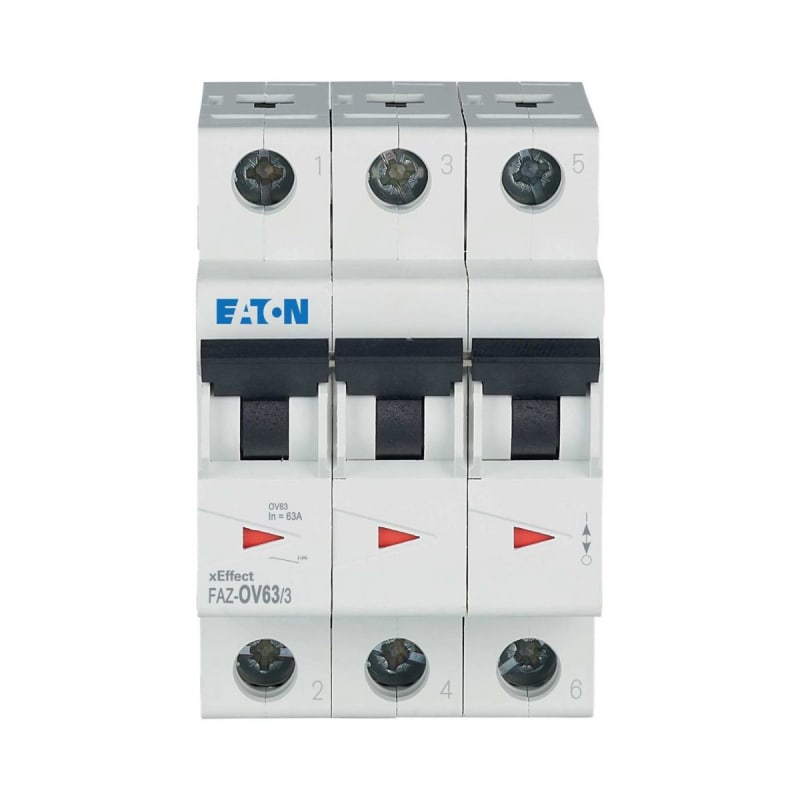

Eaton FAZ-OV63/3 Miniature Circuit Breaker — 3P, OV, 63 A, 15 kA
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton FAZ-OV63/3 miniature circuit breaker (MCB) from the xEffect FAZ range. 3-pole, rated current In = 63 A, thermomagnetic overload and short-circuit release (Eaton 'OV' overload-protection designation). Rated ultimate short-circuit breaking capacity Icu = 15 kA to IEC/EN 60947-2; rated operational voltage Ue 230/400 V AC. DIN-rail (35 mm) modular device for overload and short-circuit protection of cables and equipment. Conforms to IEC/EN 60947-2. Eaton type FAZ-OV63/3, EAN 9010238117914, El-nr (NO) 1624153.
Technical Specifications
- Manufacturer
- Eaton
- Product family
- xEffect FAZ
- Type designation
- FAZ-OV63/3
- Manufacturer part number (MPN)
- FAZ-OV63/3
- EAN / GTIN
- 9010238117914
- El-nummer (NO)
- 1624153
- Poles
- 3P
- Release
- thermomagnetic (overload + short-circuit)
- Rated current In
- 63 A
- Rated ultimate breaking capacity Icu
- 15 kA
- Rated operational voltage Ue
- 230/400 V AC
- Mounting
- DIN rail (35 mm)
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
- Eaton catalogue number
- 300360
- Depth
- 72.6 mm
- Height
- 80 mm
- Width
- 53.1 mm
- Weight
- 0.369 kg
- Compliances
- RoHS conform
- Current limiting class
- 3
- Features
- Additional equipment possible
- Suitable for
- Flush-mounted installation
- Amperage Rating
- 63 A
- Number of poles (protected)
- 3
- Number of poles (total)
- 3
- Release characteristic
- Other
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -20 °C
- Frequency rating - max
- 60 Hz
- Frequency rating - min
- 50 Hz
- Overvoltage category
- III
- Pollution degree
- 2
- Rated impulse withstand voltage (Uimp)
- 4 kV
- Rated insulation voltage (Ui)
- 440 V
- Rated operational voltage (Ue) - max
- 230 V
- Rated short-circuit breaking capacity (IEC/EN 60898-1) - Icn at 230 V
- 10 kA
- Rated short-circuit breaking capacity (IEC/EN 60898-1)- Icn at 400 V
- 10 kA
- Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 230 V
- 15 kA
- Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 400 V
- 15 kA
- Voltage type
- AC
- Built-in depth
- 60 mm
- Connectable conductor cross section (multi-wired) - max
- 16 mm²
- Connectable conductor cross section (multi-wired) - min
- 2 mm²
- Connectable conductor cross section (solid-core) - max
- 35 mm²
- Connectable conductor cross section (solid-core) - min
- 1.5 mm²
- Degree of protection
- IP20
- Width in number of modular spacings
- 3
- Document Name
- Description Action
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- 9010238117914
- El-nr 1624153
Product Documentation
More from Eaton
Eaton
J.F.Auto 15A 2P/B A-O L TYPE
PKPM2-15/2/B/003A-OL
Eaton
Residual current circuit breaker with overcurrent xDigital 15A C Type-F
300505
Eaton
Avdekningssett for F-cabinet
ZK516
Eaton
Connection Enclosure, Extended, W 600 mm, IT/TT, Grey
Y7-501487
Eaton
Busbar 3P+N 16mm² (Z-GV-16/3P+N-4TE/16)
Eaton
LOAD-Break Switch 40A 3-Pole
276272
Eaton
J.F.Auto 20A 2P/B A-O L TYPE
PKPM2-20/2/B/003A-OL
Eaton
DIN cover 12SU White (BS-12MB-WH)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
