NH0 Switch-disconnector 1P160 Box

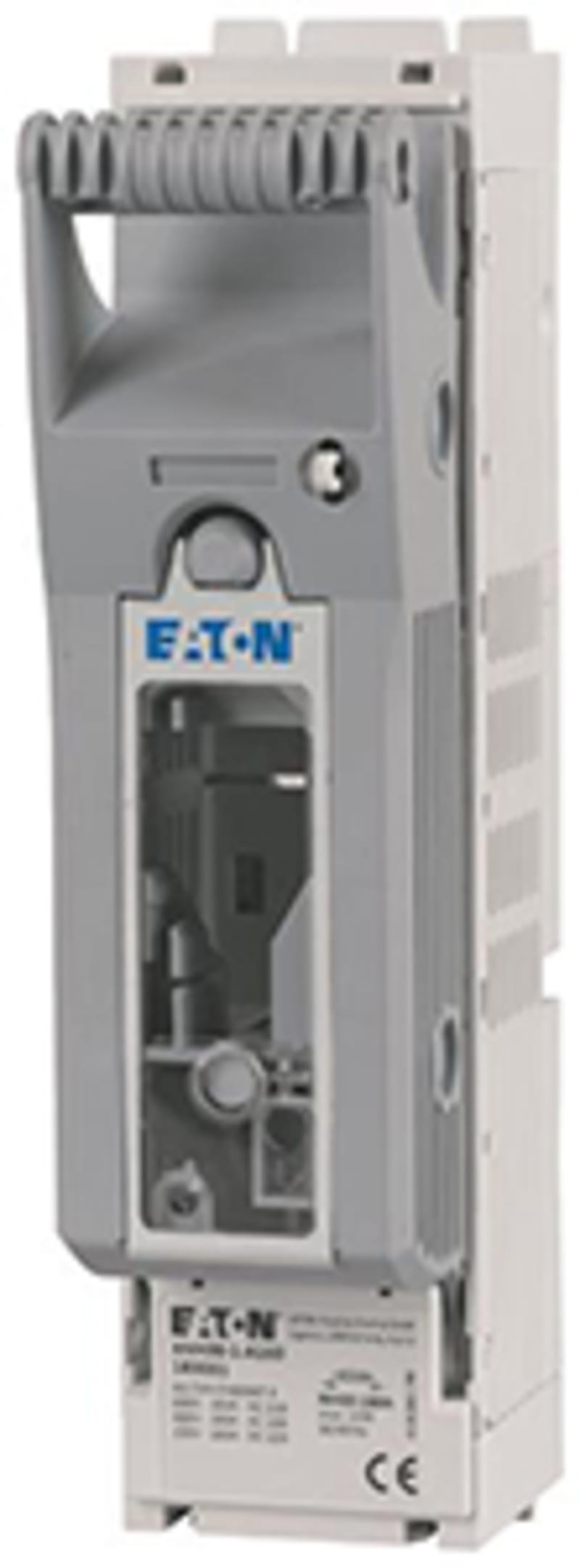

Eaton NH0 Switch-disconnector 1P160 Box (part number XNH00-1-A160-BT) is listed under Switchgear & Protection / Fuse Switch-Disconnectors. Sales unit: pcs; Eaton catalogue number: 183032; Depth: 204 mm; Height: 84 mm; Width: 49 mm; Weight: 0.279 kg.

Manufacturer part number (MPN)

XNH00-1-A160-BT

EAN / GTIN

4015081779598

Sales unit

pcs

Eaton catalogue number

183032

Depth

204 mm

Height

84 mm

Width

49 mm

Weight

0.279 kg

Compliances

RoHS conform

Certifications

IEC/EN 60947-3

Features

Standard sealable; Halogen free

Flammability characteristics (UL)

Self-extinguishing (UL 94)

Special features

Current paths of electrolytic copper, silver-plated Permanent operation (rated operating mode)

Suitable for

Ground mounting; Front mounting

Actuator type

Cover grip

Color

Gray

Number of poles

Single-pole

Type

Basic device

Ambient operating temperature details

Ambient temperature range: -25 °C - 70 °C

Equipment heat dissipation, current-dependent

9 W

Heat deflection temperature

125 °C

Heat dissipation at 80% without fuses

5.8 W

Heat dissipation per pole, current-dependent

3 W

Rated operational current for specified heat dissipation (In)

160 A

Total heat dissipation without fuses at Ith

9 W

Creepage resistance

CTI 600

Direction of incoming supply

As required

Electrical connection type of main circuit

Frame clamp

Frequency rating

40 Hz - 60 Hz

Frequency rating of contacts

40 Hz - 60 Hz

Lifespan, electrical

300 operations

Operating altitude without derating - max

2000 mm

Overvoltage category

III

Permitted power loss per fuse link - max

12 W

Pollution degree

3

Rated conditional short-circuit rating

120 kA (500 V); 100 kA (690 V)

Rated impulse withstand voltage (Uimp)

8 kV

Rated insulation voltage (Ui)

800 VAC

Rated operating voltage (Ue) at AC - max

690 V

Rated operation current (Ie)

160 A

Rated operational current

160 A (AC-21B); 160 A (AC-22B); 160 A; 160 A (AC-23B)

Rated short-time withstand current (Icw)

7 kA

Rated uninterrupted current (Iu)

160 A

Voltage rating at AC

400 V (AC-23B) 500 V (AC-22B) 690 V (AC-21B)

Voltage rating at DC

250 V DC at DC-22B 440 V DC at DC-21B

Voltage test

Yes, sliding inspection windows

Conditioned rated short-circuit current Iq

120 kA

Rated conditional short-circuit current (Iq)

120 kA

Activation type

Dependent manual activation

Actuator position

Front side

Cable entry type

Other

Degree of protection (front side)

Other

Lifespan, mechanical

1400 operations

Locking facility

Yes, optional

Material

Polyamide

Mounting method

DIN rail; Mounting plate

Mounting position

Vertical or horizontal

Size

NH000 / NH00 fuse

Suitable for fuses

NH00

Terminal capacity (copper band)

9 mm x 0.8 mm (6x) at box terminal

Terminal capacity (copper busbar)

Bolt diameter at flange connection: M8; 20 mm x 10 mm; Max. 25 mm cable lug width at flange connection

Terminal capacity (copper strip)

9 mm x 0.8 mm (9x) at box terminal

Terminal capacity (stranded cable)

10 mm² - 70 mm² at clamp-type terminal; 1.5 mm² - 50 mm² at box terminal; 1.5 mm² - 95 mm² at box terminal

Connection type

Box terminal

Degree of protection

IP20 (operating status, XNH installed); IP10 (handle cover open, XNH installed); IP2XC (contact protection, XNH installed)

Rated permanent current Iu

160 A

Motor drive integrated

No

Type of electrical connection of main circuit

Frame clamp

Version as emergency stop installation

No

Type of control element

Cover grip

Version as main switch

No

Version as safety switch

No

Rated short-time withstand current lcw

7 kA

Suitable for floor mounting

Yes

Suitable for front mounting

Yes

Suitable for busbar mounting

No

Max. rated operation voltage Ue AC

690 V

With error protection

No

Motor drive optional

No

Position control element

Front side

Equipped with connectors

No

Country of origin

Germany

HS Code

8536.90

• EAN 4015081779598
• SAP 1200562734
• Code 82906038
