Eaton

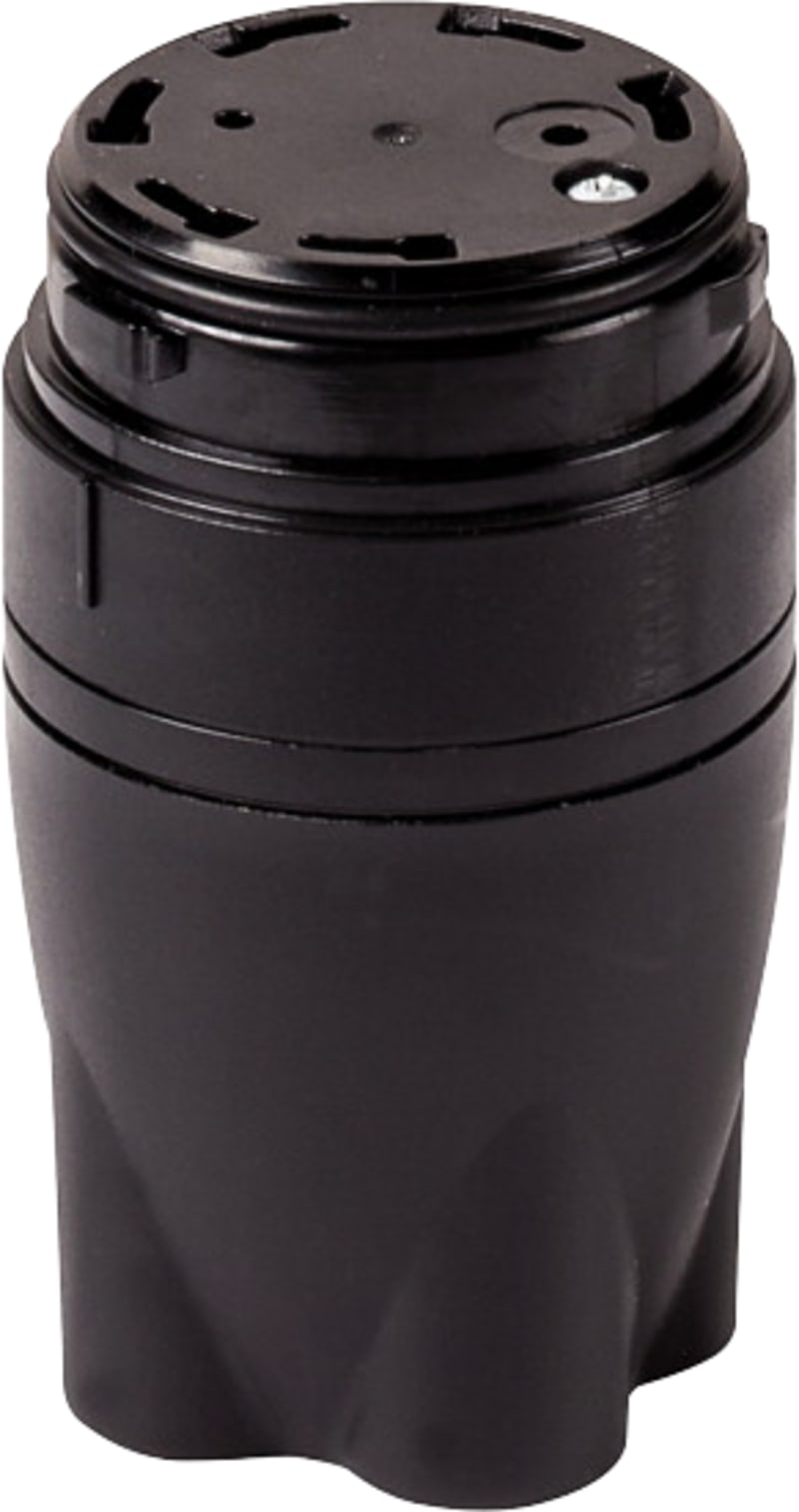

Base, fixing holes innside (SL4-PIB-IMH)
Part numberSL4-PIB-IMHEAN / GTIN4015081679188HS code8531.90
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Base, fixing holes innside (SL4-PIB-IMH) is listed in the cBallast industrial catalogue. Sales unit: pcs; Eaton catalogue number: 171300; Depth: 43 mm; Height: 71 mm; Width: 43 mm; Weight: 0.055 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL4-PIB-IMH
- EAN / GTIN
- 4015081679188
- Sales unit
- pcs
- Eaton catalogue number
- 171300
- Depth
- 43 mm
- Height
- 71 mm
- Width
- 43 mm
- Weight
- 0.055 kg
- Certifications
- CSA-C22.2 No. 94-91; IEC/EN 60529; Certified by UL for use in Canada; UL 508; CE; CSA Class No.: NKCR7; IEC/EN 60947-5-1; CSA-C22.2 No. 14-10; UL; UL report applies to both US and Canada; UL Category Control No.: NKCR; UL File No.: E29184
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage
- 110/120 V AC ± 10 %; 24 V AC/DC ± 10 %; 230/240 V AC ± 10 %
- Color
- Other
- Fitted with
- Cover; Internal (on the inside) fixing holes
- Number of modules
- Max. 10 (with base for mounting on both sides); Max. 5; Max. 5 (with standard base)
- Connection to SmartWire-DT
- No
- Degree of protection
- IP66; NEMA 1
- Mounting Method
- Floor; Horizontal; Bracket
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27
- Type
- Base module
- Terminal capacity (AWG)
- 24 - 16
- Terminal capacity (flexible with ferrule and plastic collar)
- 0.25 - 0.75 mm²
- Terminal capacity (solid/flexible with ferrule)
- 0.25 - 1.5 mm²
- Terminal capacity (solid/flexible)
- 0.2 - 1.5 mm²
- Suitable for tube mounting
- No
- Suitable for angle mounting
- Yes
- Suitable for AS interface
- No
- Connection type auxiliary circuit
- Spring clamp connection
- Suitable for M12 connector
- No
- Suitable for IO link
- No
- Suitable for floor mounting
- Yes
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.90
Cross References
- EAN 4015081679188
- SAP 1000489738
- Code 8274617
Product Documentation
Document preview: Base, festehull innside (SL4-PIB-IMH) — Specification Data Sheet (OEM)
