NH0 Switch-disconnector 3P160 L/B

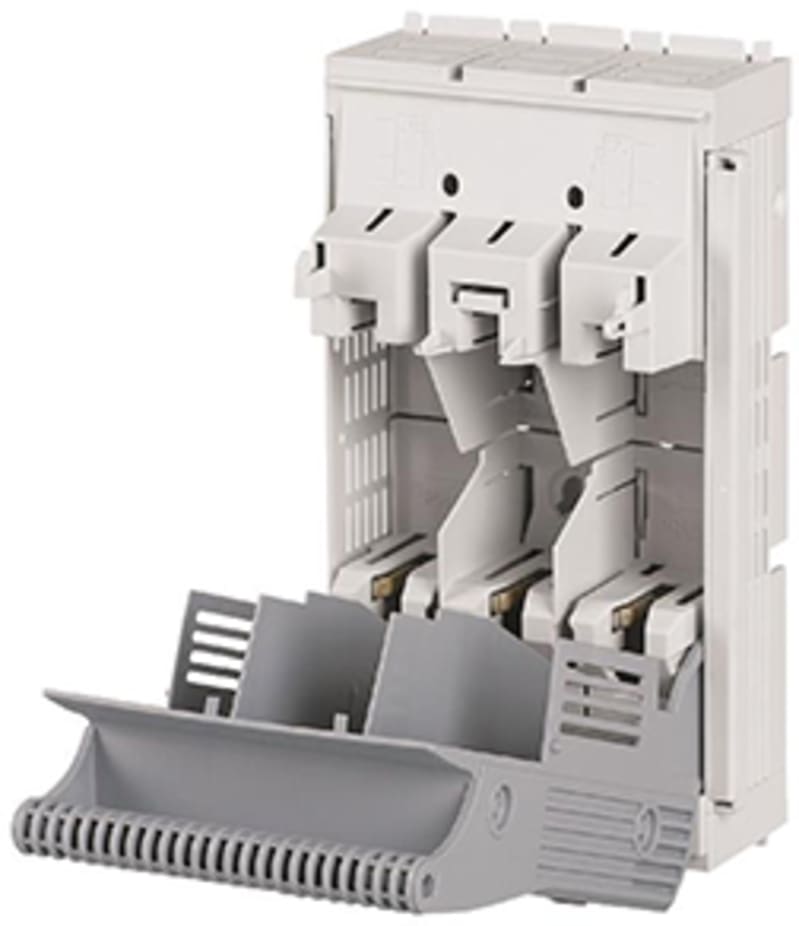

Eaton NH0 Switch-disconnector 3P160 L/B (part number XNH00-FCL-A160-BT) is listed under Switchgear & Protection / Fuse Switch-Disconnectors. Sales unit: pcs; Eaton catalogue number: 183028; Depth: 204 mm; Height: 84 mm; Width: 106 mm; Weight: 0.735 kg.

Manufacturer part number (MPN)

XNH00-FCL-A160-BT

EAN / GTIN

4015081779550

Sales unit

pcs

Eaton catalogue number

183028

Depth

204 mm

Height

84 mm

Width

106 mm

Weight

0.735 kg

Compliances

RoHS conform

Certifications

IEC/EN 60947-3

Features

Standard sealable; Halogen free

Fitted with

Error protection

Flammability characteristics (UL)

Self-extinguishing (UL 94)

Special features

Permanent operation (rated operating mode) Current paths of electrolytic copper, silver-plated with optical signalling of triggered fuse-links

Suitable for

Ground mounting; Front mounting

Actuator type

Cover grip

Color

Gray

Number of poles

Three-pole

Type

Fuse control - light

Ambient operating temperature details

Ambient temperature range: -25 °C - 70 °C

Equipment heat dissipation, current-dependent

9 W

Heat deflection temperature

125 °C

Heat dissipation at 80% without fuses

5.8 W

Heat dissipation per pole, current-dependent

3 W

Rated operational current for specified heat dissipation (In)

160 A

Total heat dissipation without fuses at Ith

9 W

Creepage resistance

CTI 600

Direction of incoming supply

As required

Electrical connection type of main circuit

Frame clamp

Frequency rating

40 Hz - 60 Hz

Frequency rating of contacts

40 Hz - 60 Hz

Lifespan, electrical

300 operations

Operating altitude without derating - max

2000 mm

Overvoltage category

III

Permitted power loss per fuse link - max

12 W

Pollution degree

3

Rated conditional short-circuit rating

100 kA (690 V); 120 kA (500 V)

Rated impulse withstand voltage (Uimp)

8 kV

Rated insulation voltage (Ui)

800 VAC

Rated operating voltage (Ue) at AC - max

690 V

Rated operation current (Ie)

160 A

Rated operational current

160 A; 160 A (AC-22B); 160 A (AC-21B); 160 A (AC-23B)

Rated short-time withstand current (Icw)

7 kA

Rated uninterrupted current (Iu)

160 A

Voltage rating at AC

400 V (AC-23B) 500 V (AC-22B) 690 V (AC-21B)

Voltage rating at DC

250 V DC at DC-22B 440 V DC at DC-21B

Voltage test

Yes, sliding inspection windows

Conditioned rated short-circuit current Iq

120 kA

Rated conditional short-circuit current (Iq)

120 kA

Activation type

Dependent manual activation

Actuator position

Front side

Cable entry type

Other

Degree of protection (front side)

Other

Lifespan, mechanical

1400 operations

Locking facility

Yes, optional

Material

Polyamide

Mounting method

Mounting plate; DIN rail

Mounting position

Vertical or horizontal

Size

NH000 / NH00 fuse

Suitable for fuses

NH00

Terminal capacity (copper band)

9 mm x 0.8 mm (6x) at box terminal

Terminal capacity (copper busbar)

20 mm x 10 mm; Max. 25 mm cable lug width at flange connection; Bolt diameter at flange connection: M8

Terminal capacity (copper strip)

9 mm x 0.8 mm (9x) at box terminal

Terminal capacity (stranded cable)

1.5 mm² - 95 mm² at box terminal; 1.5 mm² - 50 mm² at box terminal; 10 mm² - 70 mm² at clamp-type terminal

Connection type

Box terminal

Degree of protection

IP10 (handle cover open, XNH installed); IP2XC (contact protection, XNH installed); IP20 (operating status, XNH installed)

Rated permanent current Iu

160 A

Motor drive integrated

No

Type of electrical connection of main circuit

Frame clamp

Version as emergency stop installation

No

Type of control element

Cover grip

Version as main switch

No

Version as safety switch

No

Rated short-time withstand current lcw

7 kA

Suitable for floor mounting

Yes

Suitable for front mounting

Yes

Suitable for busbar mounting

No

Max. rated operation voltage Ue AC

690 V

With error protection

Yes

Motor drive optional

No

Position control element

Front side

Equipped with connectors

No

Country of origin

Germany

HS Code

8536.90
