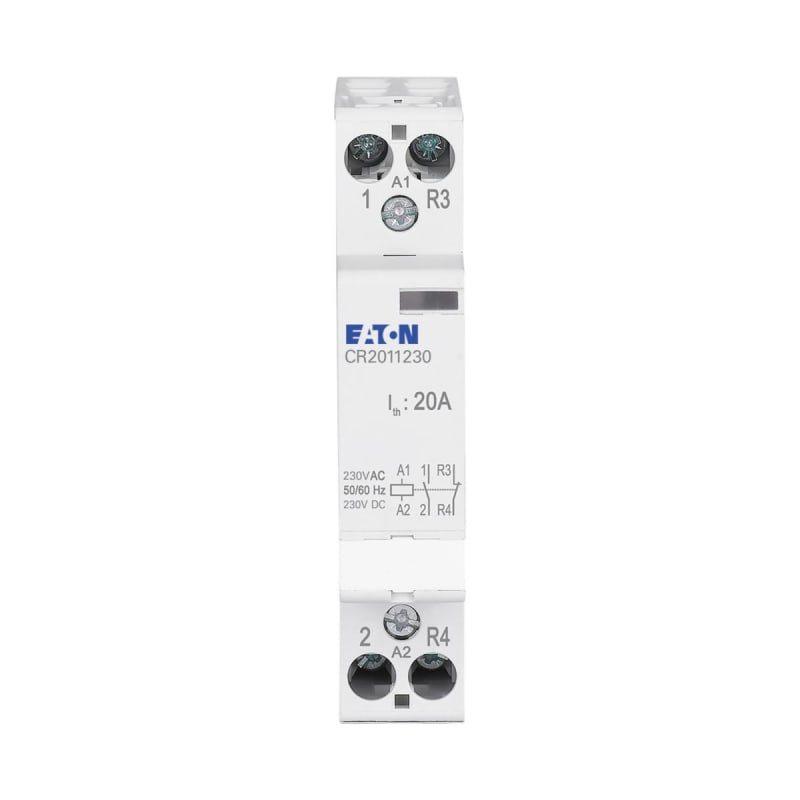

Installation Relay 20A 230V AC/DC 1NO+1NC
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Installation Relay 20A 230V AC/DC 1NO+1NC (part number CR2011230) is listed under Electrical Components / Contactors. Sales unit: pcs; Eaton catalogue number: 135173; Depth: 75 mm; Height: 80 mm; Width: 18 mm; Weight: 0.136 kg.
Technical Specifications
- Manufacturer part number (MPN)
- CR2011230
- EAN / GTIN
- 4015081319848
- Sales unit
- pcs
- Eaton catalogue number
- 135173
- Depth
- 75 mm
- Height
- 80 mm
- Width
- 18 mm
- Weight
- 0.136 kg
- Compliances
- RoHS conform
- Features
- Additional equipment possible; Hum-free
- Amperage Rating
- 20 A
- Incandescent lamp load - max
- 1950 W
- Load fluorescent lamp - max
- 910 VA
- Load fluorescent lamp (duo circuit) - max
- 1160 VA
- Load fluorescent lamp (parallel compensated) - max
- 232 VA
- Rated operating voltage (Ue) - max
- 400 V
- Rated operating voltage (Ue) - min
- 400 V
- Voltage rating (excitation) - max
- 253 V
- Voltage rating (excitation) - min
- 195.5 V
- Voltage type
- AC/DC
- Built-in depth
- 60 mm
- Degree of protection
- IP20
- Number of contacts (normally closed contacts)
- 1
- Number of contacts (normally open contacts)
- 1
- Number of modular spacings
- 1
- Utility category
- 1
- Utilization category (according to EN IEC 60947-4-1)
- AC-1
- Contact configuration
- 1 NO + 1 NC
- Utilization category according to EN IEC 60947-4-1
- AC-1
- Rated operating voltage
- 400 V
- Rated operation current
- 20 A
- Rated excitation voltage
- 195.5–253 V
- Number of contacts as normally open contact
- 1
- Number of contacts as normally closed contact
- 1
- Max. incandescent lamp load
- 1950 W
- Max. load fluorescent lamp
- 910 VA
- Slider for hand switch
- No
- Width in number of modular spacings
- 1
- Additional equipment possible
- Yes
- With day/night function
- No
- Hum-free
- Yes
- Country of origin
- Slovenia
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4015081319848
- SAP 1200803092
- Code 83978378
Product Documentation
More from Eaton
Eaton
Lysindikator, RMQ (M22-LH-A)
Eaton

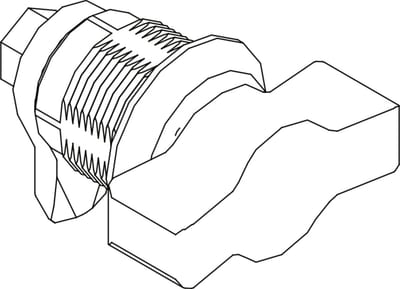

Eaton 220S5081 Lock / Closer with Finger Grip
Eaton
Eaton Overload relay, Ir= 50 - 70 A, 1 N/O, 1 N/C, for use with: DILM185A, DILM225A
Z5-70/FF225A
Eaton

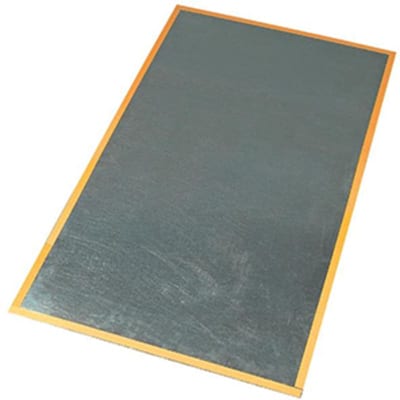

Backplate HxB=460 x 400 mm
BPZ-RP-400/4
Eaton

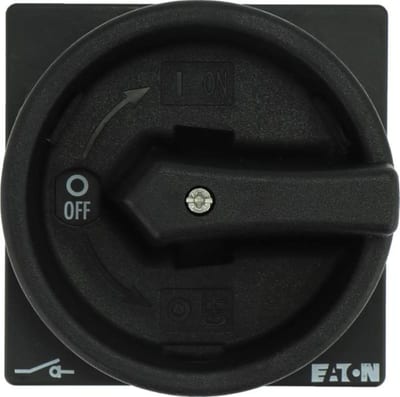

Main switch,P1-40/M4/SVB-SW
Eaton

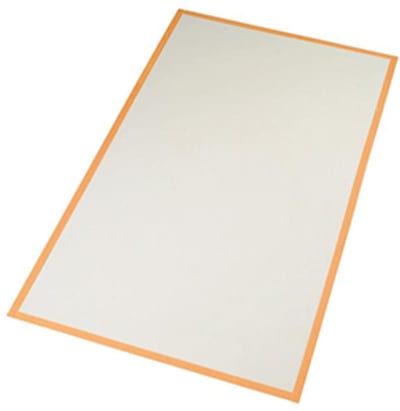

Pl. backplate HxB=460X600 mm
BPZ-RPP-600/4
Eaton
Installation Relay 20A 24V AC 1NO+1NC
CR2011024A
Eaton

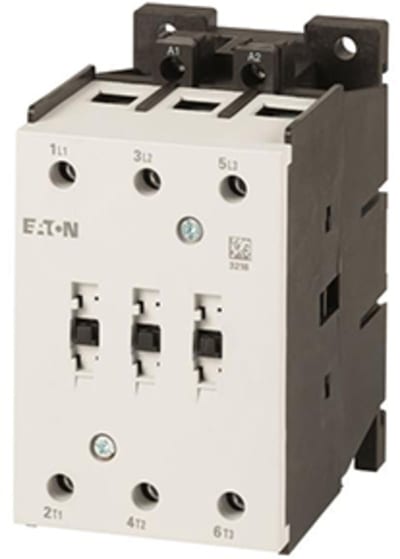

Eaton DILMT80(230V50HZ/240V60HZ) Contactor, 3-Pole, 37 kW, 230 V AC
