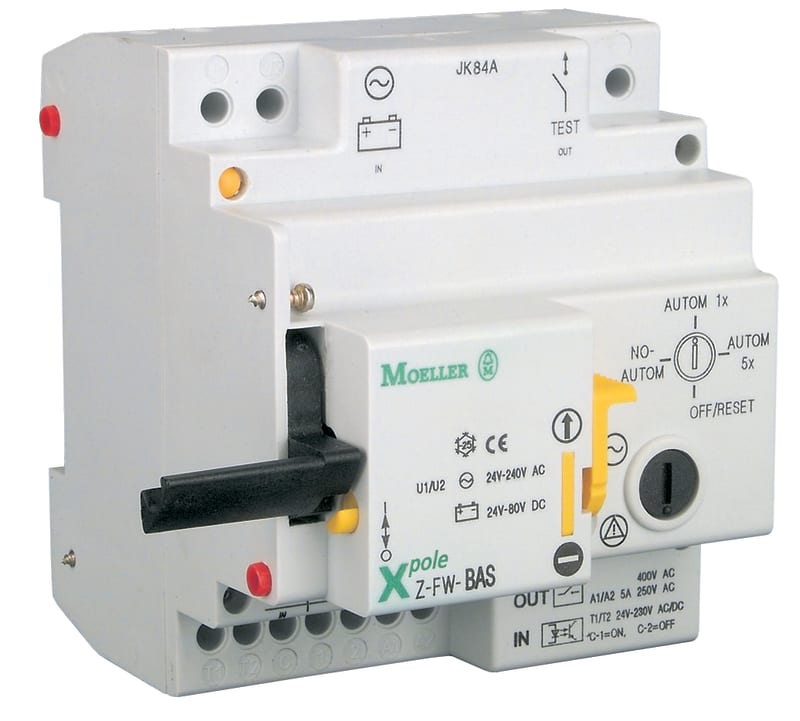

automatic Recloser (248296)

Eaton 248296 automatic recloser of residual current circuit breaker. For 2- and 4-pole.

Manufacturer part number (MPN)

248296 EAN / GTIN: 4015082482961 HS code: 8536.90 Sales unit: pcs Package quantity: 20 pcs Eaton catalogue number: 248296 Depth: 80 mm Height: 77.3 mm Width: 88.4 mm Weight: 0.298 kg Compliances: RoHS conform Used with: Restarting device; Accessory for residual current circuit breaker; Accessory; Accessory for miniature circuit breaker Accessory/spare part type: Restarting device Degree of protection: IP40 Frame: Standard front dimension: 45 mm Frequency rating: 50 Hz / 60 Hz Equipment heat dissipation, current-dependent: 0 W Mounting method: Quick attachment with 2 latch positions on top-hat rail IEC/EN 60715; For fitting on right to: CLS6, PFIM, PFHM-4p, dRCM, Z-A40, PFR, Z-MS Additional equipment required: Monitoring unit with automatic reclosing Terminal protection: Protection against electric shock to A3, ÖVE-EN 6 Terminal type: Lift terminals Ambient operating temperature - max: 40 °C Ambient operating temperature - min: -25 °C Assembly width: 4 Enclosure width: 80 mm Heat dissipation capacity: 0 W Heat dissipation per pole, current-dependent: 0 W Number of contacts (change-over contacts): 0 Number of contacts (normally closed contacts): 0 Number of contacts (normally open contacts): 0 Number of switches (fault signal): 0 Rated operational current for specified heat dissipation (In): 0 A Voltage type: AC Functions: Automatic restart; With auto test for earth leakage function; Remote drive Device fitting: Universal Type: Accessory Accessory for miniature circuit breaker Accessory for residual current circuit breaker Special features: Z-FW… (Test module (0.5 space unit) for remote testing of residual current devices) Application: Switchgear for industrial and advanced commercial applications Mounting width: 70 mm Function selector: Automatic 5 x, OFF/RESET Rated operational voltage (Ue) - max: 230 V Relay output for alarm: 5 A Static heat dissipation, non-current-dependent: 1.5 W Voltage rating at AC: 220 V AC - 240 V AC Terminal capacity (cable): 2.5 mm² (1x); 1.5 mm² (2x) Terminal capacity (solid wire): 1 mm² - 2.5 mm²; 1.5 mm² (2x)

HS Code

8536.90

• EAN 4015082482961
• SAP 1000023021
• Code 8178853
