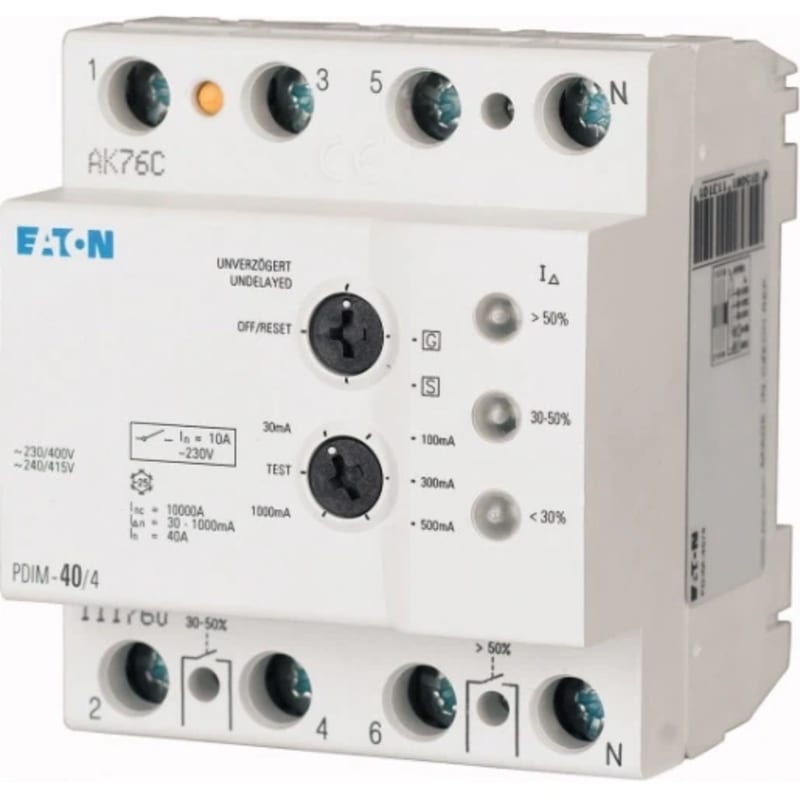

Eaton PDIM-100/4 Residual current circuit-breaker, 100A, 4p, 0mA, AC-Char.

Manufacturer part number (MPN)

PDIM-100/4

EAN / GTIN

4015081113118

HS code

8536.90

Sales unit

pcs

Package quantity

30 pcs

Eaton catalogue number

111761

Depth

76 mm

Height

80 mm

Width

70 mm

Weight

0.404 kg

Compliances

RoHS conform

Certifications

DIN/EN 62020

Used with

Leakage current monitor; PDIM

Amperage Rating

100 A

Features

Additional equipment possible; Leakage current monitor; Selective protection

Fitted with

Interlocking device

Frame

45 mm

Frequency rating

60 Hz

Pollution degree

2

Lifespan, mechanical

20000 operations

Mounting Method

Quick attachment with 2 latch positions on top-hat rail IEC/EN 60715; DIN rail

Climatic proofing

25-55 °C / 90-95% relative humidity according to IEC 60068-2

Equipment heat dissipation, current-dependent

18.8 W

Rated impulse withstand voltage (Uimp)

4 kV

Rated short-time withstand current (Icw)

10 kA

Admissible back-up fuse overload - max

63 A gG/gL

Built-in width (number of units)

70 mm (4 SU)

Busbar material thickness

0.8 mm - 2 mm

Short-circuit rating

100 A (max. admissible back-up fuse)

Terminal protection

Finger and hand touch safe, DGUV VS3, EN 50274

Terminals (top and bottom)

Twin-purpose terminals

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Built-in depth

60 mm

Connectable conductor cross section (multi-wired) - max

16 mm²

Connectable conductor cross section (multi-wired) - min

1.5 mm²

Connectable conductor cross section (solid-core) - max

35 mm²

Connectable conductor cross section (solid-core) - min

1.5 mm²

Fault current rating

1000 mA

Heat dissipation capacity

0 W

Heat dissipation per pole, current-dependent

0 W

Permitted storage and transport temperature - max

60 °C

Permitted storage and transport temperature - min

-35 °C

Degree of protection

IP20; IP20, IP40 with suitable enclosure

Number of poles

Four-pole

Leakage current type

AC

Lifespan, electrical

4000 operations

Type

Leakage current monitor PDIM

Special features

Current test marks as per inscription Maximum operating temperature is 60 °C: Starting at 40 °C, the max. permissible continuous current decreases by 1.2% for every 1 °C Switching contact (potential-free) 10 A / 240 V~

Application

Switchgear for industrial and advanced commercial applications xEffect - Switchgear for industrial and advanced commercial applications

Functions

Short-time delayed tripping; Fault current adjustable: 0.03 A/0.1 A/0.3 A/0.5 A/1 A

Sensitivity type

AC and pulsating DC current sensitive

Rated fault current - max

1 A

Rated fault current - min

0.03 A

Rated insulation voltage (Ui)

440 V

Rated operational current for specified heat dissipation (In)

100 A

Rated operational voltage (Ue) - max

415 V

Static heat dissipation, non-current-dependent

0 W

Surge current capacity

0.25 kA

Width in number of modular spacings

4

Voltage rating (IEC/EN 60947-2)

230/400 V, 50/60 Hz 240/415 V, 50/60 Hz

Voltage type

AC

Terminal capacity (solid wire)

1.5 mm² - 35 mm²

Tripping time

Non-delayed, adjustable; Selective switch off, adjustable; 40 ms delayed, selective (type S); 10 ms delayed (Type G); Short time-delayed, adjustable

Terminal capacity (control cable)

0.25 mm² - 1.5 mm² at switching contacts

Rated short-circuit strength

10 kA

Response behavior (adjustable)

Undelayed

Response behavior of contacts

1: 30 - 50 % Iδn; 2: > 50 % IΔn

Terminal capacity (stranded cable)

16 mm² (2x)

RAL-number

7035

Color

Gray
