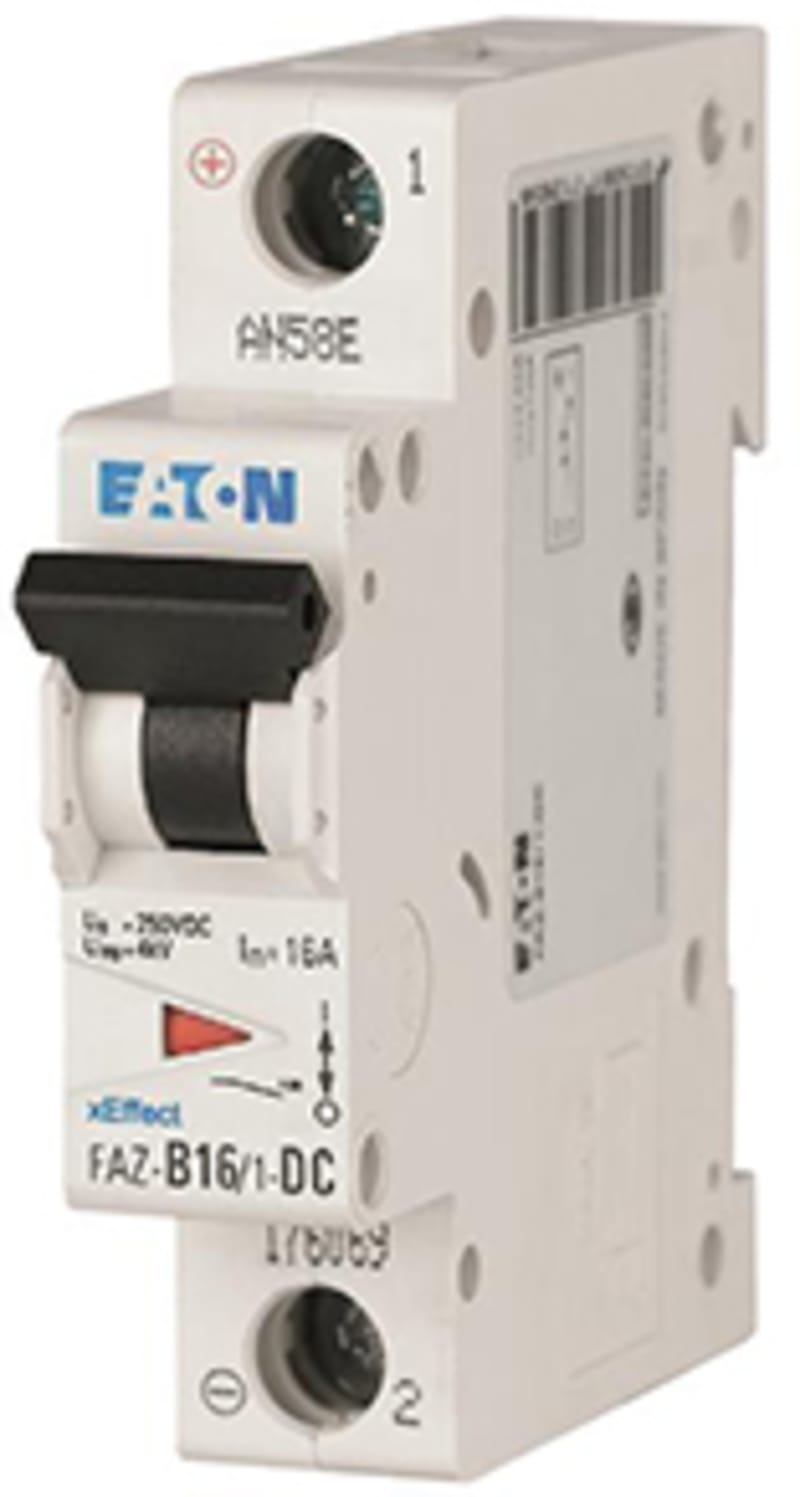

MCB FAZ-B16/1-DC

Eaton MCB FAZ-B16/1-DC is listed under Electrical Components / Miniature Circuit Breakers. Sales unit: pcs; Package quantity: 12 pcs; Eaton catalogue number: 176069; Depth: 80 mm; Height: 75.5 mm; Width: 17.7 mm.

Manufacturer part number (MPN)

FAZ-B16/1-DC

EAN / GTIN

4015081712656

Sales unit

pcs

Package quantity

12 pcs

Eaton catalogue number

176069

Depth

80 mm

Height

75.5 mm

Width

17.7 mm

Weight

0.11 kg

Compliances

RoHS conform

Certifications

EN45545-2; IEC 61373

Current limiting class

3

Features

Additional equipment possible

Special features

Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity

Used with

Miniature circuit breaker; FAZ-DC

Amperage Rating

16 A

Application

Switchgear for DC applications

Number of poles

Single-pole

Number of poles (protected)

1

Number of poles (total)

1

Release characteristic

B

Tripping characteristic

B

Type

FAZ-DC Miniature circuit breaker

Ambient operating temperature - max

75 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

2.2 W

Rated operational current for specified heat dissipation (In)

16 A

Overvoltage category

III

Pollution degree

2

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

440 V

Rated operational voltage (Ue) - max

250 V

Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 230 V

10 kA

Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 400 V

10 kA

Rated switching capacity (IEC/EN 60947-2)

10 kA

Voltage type

DC

Built-in depth

70.5 mm

Connectable conductor cross section (multi-wired) - max

25 mm²

Connectable conductor cross section (multi-wired) - min

1 mm²

Connectable conductor cross section (solid-core) - max

25 mm²

Connectable conductor cross section (solid-core) - min

1 mm²

Degree of protection

IP20

Width in number of modular spacings

1

Power loss

2.1 W

Number of protected poles

1

Rated current

16 A

Rated voltage

250 V

Rated insulation voltage Ui

440 V

Rated impulse withstand voltage Uimp

4 kV

Frequency

50–60 Hz

Concurrently switching neutral conductor

No

Additional equipment possible

Yes

Ambient temperature during operating

-25–75 °C

Connectable conductor cross section multi-wired

1–25 mm²

Connectable conductor cross section solid-core

1–25 mm²

Explosion-proof

No

Flush-mounted installation

No

Country of origin

Romania

HS Code

8536.30
