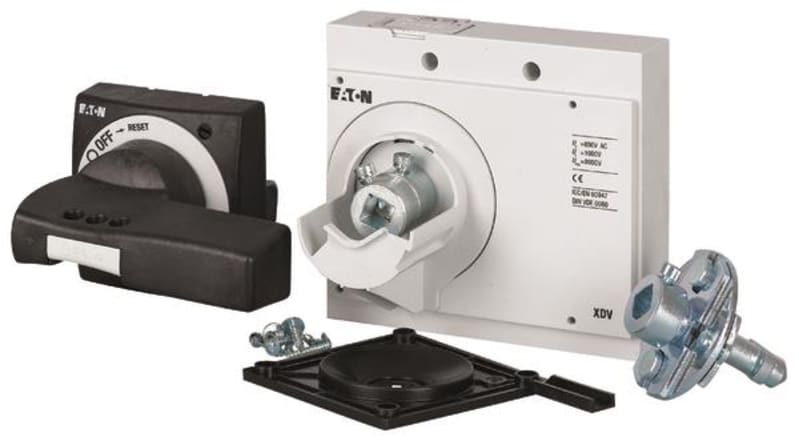

Eaton NZM3-XTVDV

Eaton NZM3-XTVDV is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 260176; Depth: 75 mm; Height: 190 mm; Width: 90 mm; Weight: 1.446 kg.

Manufacturer part number (MPN)

NZM3-XTVDV

EAN / GTIN

4015082601768

Sales unit

pcs

Eaton catalogue number

260176

Depth

75 mm

Height

190 mm

Width

90 mm

Weight

1.446 kg

Compliances

UL/CSA; IEC; RoHS conform

Certifications

IEC60947; UL listed; CSA certified; CSA (File No. 22086); UL (Category Control Number DIHS); CSA (Class No. 1437-01); UL489; UL (File No. E140305); CE marking; CSA-C22.2 No. 5-09

Features

Standard: black / gray; Lockable

Fitted with

Padlock

Frame

NZM3

Special features

Door coupling rotary handle for operating the switch through a closed control panel door External warning plate/designation label can be clipped on. Complete including rotary drive and coupling parts Extension shaft additionally required.

Suitable for

Switch disconnector; Power circuit breaker

Type

Door coupling rotary handle

Used with

NZM3(-4), PN3(-4), N(S)3(-4)

Color

Black

Cover/door type

Door interlock can be modified such that it can be defeated from the outside using a screwdriver; Door interlock can be modified in the unlocked ON position; Door can be opened in OFF; Door interlock not defeated in the locked OFF and ON positions

Degree of protection / NEMA enclosure type

IP66; 4X. 12

Lock number

Double lockable

Locking facility

Modifiable on handle in I position as well; With door interlock; Lockable on the handle on the switch using up to 3 padlocks

Colour

Black

Lockable

Yes

Padlock locking

Yes

Suitable for emergency stop

No

With extension shaft

No

With restart blockage

No

Suitable for power circuit breaker

Yes

Suitable for switch disconnector

Yes

Degree of protection (NEMA)

4X, 12

With key lock

No

Country of origin

Germany

HS Code

8538.90

• EAN 4015082601768
• SAP 1000289120
• Code 895911
