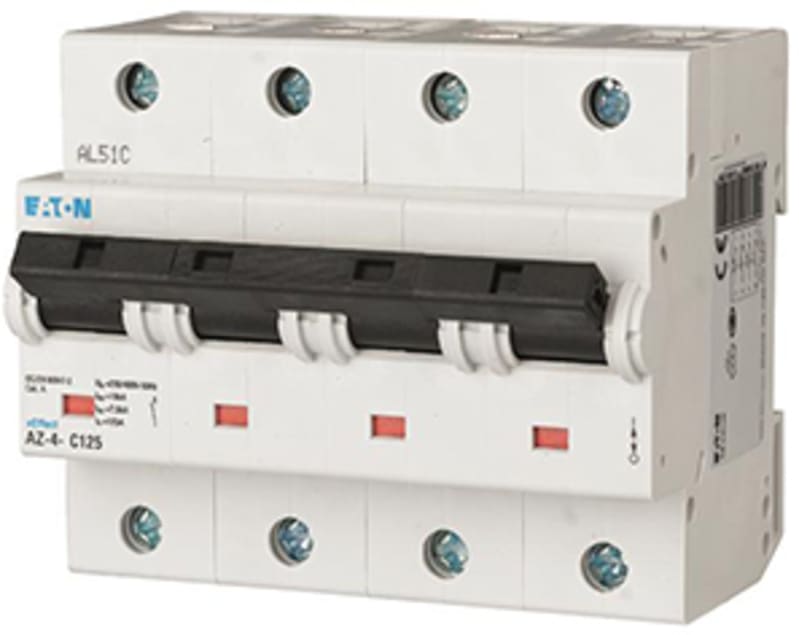

Unit breaker 1P 25A D
Part numberAZ-D25EAN / GTIN4015081709465HS code8536.90
Electrical Components
Miniature Circuit Breakers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton AZ-D25 High quality modular circuit breaker up to 125A in characteristic B,C,D and OV.
Technical Specifications
- Manufacturer part number (MPN)
- AZ-D25
- EAN / GTIN
- 4015081709465
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Eaton catalogue number
- 174490
- Depth
- 75 mm
- Height
- 90 mm
- Width
- 27 mm
- Weight
- 0.225 kg
- Compliances
- RoHS conform
- Certifications
- EN45545-2; IEC 61373
- Current limiting class
- 3
- Features
- Additional equipment possible
- Special features
- Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
- Used with
- Miniature circuit breaker; AZ
- Amperage Rating
- 25 A
- Application
- Switchgear for industrial and advanced commercial applications xEffect - Switchgear for industrial and advanced commercial applications
- Number of poles
- Single-pole
- Number of poles (protected)
- 1
- Number of poles (total)
- 1
- Release characteristic
- D
- Tripping characteristic
- D
- Type
- AZ Miniature circuit breaker
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -25 °C
- Equipment heat dissipation, current-dependent
- 2.8 W
- Heat dissipation capacity
- 0 W
- Heat dissipation per pole, current-dependent
- 2.8 W
- Rated operational current for specified heat dissipation (In)
- 25 A
- Static heat dissipation, non-current-dependent
- 0 W
- Frequency rating - max
- 60 Hz
- Frequency rating - min
- 50 Hz
- Overvoltage category
- III
- Pollution degree
- 2
- Rated impulse withstand voltage (Uimp)
- 4 kV
- Rated insulation voltage (Ui)
- 440 V
- Rated operational voltage (Ue) - max
- 230 V
- Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 230 V
- 25 kA
- Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 400 V
- 25 kA
- Rated switching capacity (IEC/EN 60947-2)
- 25 kA
- Voltage type
- AC
- Built-in depth
- 75 mm
- Connectable conductor cross section (multi-wired) - max
- 50 mm²
- Connectable conductor cross section (multi-wired) - min
- 2.5 mm²
- Connectable conductor cross section (solid-core) - max
- 50 mm²
- Connectable conductor cross section (solid-core) - min
- 2.5 mm²
- Degree of protection
- IP20
- Width in number of modular spacings
- 1.5
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081709465
- SAP 1200668166
- Code 83107709
Product Documentation
