EVG-3P+3N/12MODULE (121091)
Pricing
Request a quote
We reply within 24 hours
Product Description

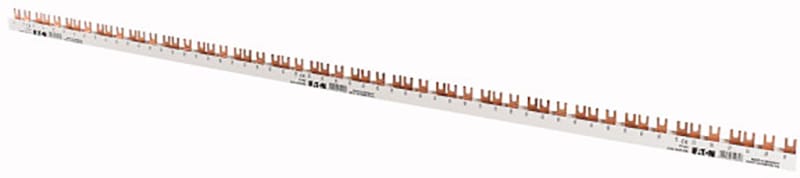

Eaton 121091 EVG-3P+3N/12MODULE Busbar l1--N-L2-N-L3-N.
Technical Specifications
- Manufacturer part number (MPN)
- 121091
- EAN / GTIN
- 4015081189212
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Eaton catalogue number
- 121091
- Depth
- 211 mm
- Height
- 28 mm
- Width
- 12 mm
- Weight
- 0.087 kg
- Compliances
- RoHS conform
- Features
- Insulated
- Electric connection type
- Fork
- Rated surge voltage
- 4 KV
- Rated uninterrupted current (Iu)
- 63 A
- Suitable for number of devices
- 0
- Number of poles
- Four-pole
- Color
- Other
- Cross section
- 10 mm²
- Number of modular spacings
- 12
- Number of phases
- 4
- Rated operational voltage (Ue) - max
- 415 V
- Rated conditional short-circuit current (Iq)
- 25 kA
- Suitable for
- Devices with N-busbar
- Insulated
- Yes
- Rated permanent current Iu
- 63 A
- Length
- 211 mm
- Conditioned rated short-circuit current Iq
- 25 kA
- Width in number of modular spacings
- 12
- Type of electric connection
- Fork
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- Yes
- Max. rated operation voltage Ue
- 415 V
- Can be cut to size
- No
- Country of origin
- India
Standards & Compliance
- HS Code
- 8536.10
Cross References
- EAN 4015081189212
- SAP 1200054185
- Code 81892797
