OVERVOLTAGE PROTECTION, complete, 4P 280VAC 4X20KA
Pricing
Request a quote
We reply within 24 hours
Product Description

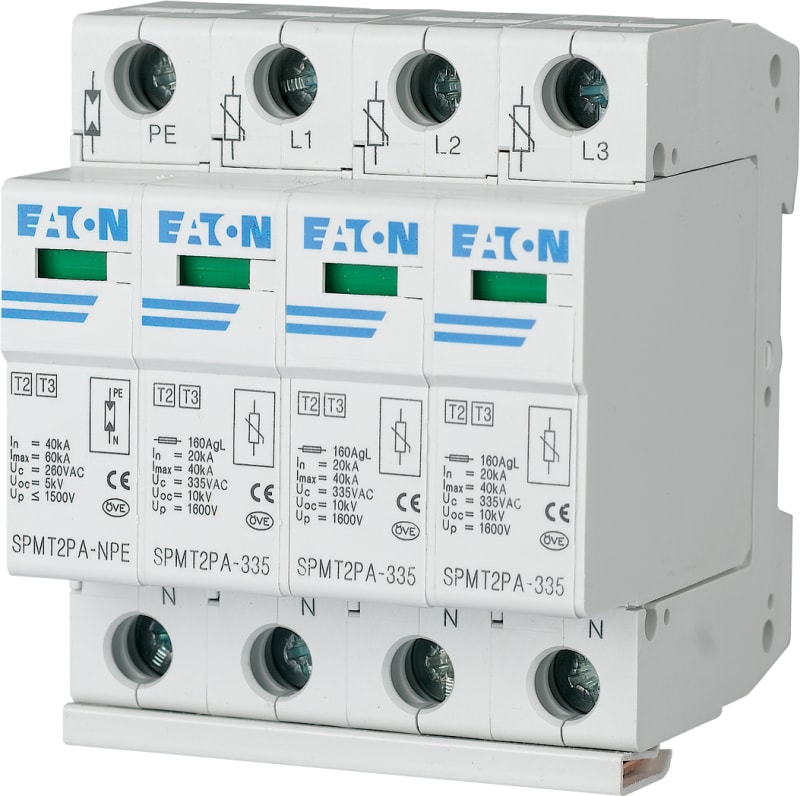

Eaton 167596 Surge protection device, 4-pole, plug-in, complete TN/TT.
Technical Specifications
- Manufacturer part number (MPN)
- 167596
- EAN / GTIN
- 4015081640874
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Eaton catalogue number
- 167596
- Depth
- 85 mm
- Height
- 67 mm
- Width
- 70 mm
- Weight
- 0.413 kg
- Compliances
- RoHS conform
- Certifications
- CE
- Features
- Category type 2
- System configuration type
- TN-S; Other; TN; TN-C-S
- Application
- Open areas Residential buildings Utility buildings
- Type
- Surge arrester
- Continuous voltage at AC - max
- 280 V
- Discharge surge current (8/20) - max
- 40 kA
- Nominal discharge surge current (8/20)
- 20 kA
- Nominal voltage at AC
- 280 V
- Signalling at the device
- Optic
- Voltage protection level
- 1.4 KV
- Conductor cross section (flexible, fine-strand) - max
- 35 mm²
- Conductor cross section (flexible, fine-strand) - min
- 35 mm²
- Conductor cross section (solid, solid-strand) - max
- 25 mm²
- Conductor cross section (solid, solid-strand) - min
- 25 mm²
- Degree of protection
- IP20
- Frame
- 4 modular spacing
- Mounting method
- DIN rail (top hat rail) 35 mm
- Number of conductors without earthing
- 4
- Number of poles
- 4P
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- Yes
- System configuration TN-C
- No
- System configuration TT
- No
- System configuration other
- Yes
- Number of conductors (without earthing)
- 4
- Max. discharge surge current (8/20)
- 40 kA
- Short-circuit-proof
- No
- Nominal voltage AC
- 280 V
- Max. continuous voltage AC
- 280 V
- Max. overcurrent protection device, series connection (fuse)
- 125 A
- Integrated short-circuit protection
- No
- Integrated backup fuse
- No
- Leakage-current free
- No
- Construction size
- 4 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 25 mm²
- With remote signalling contact
- No
- Category type 2
- Yes
- Country of origin
- Romania
