Eaton

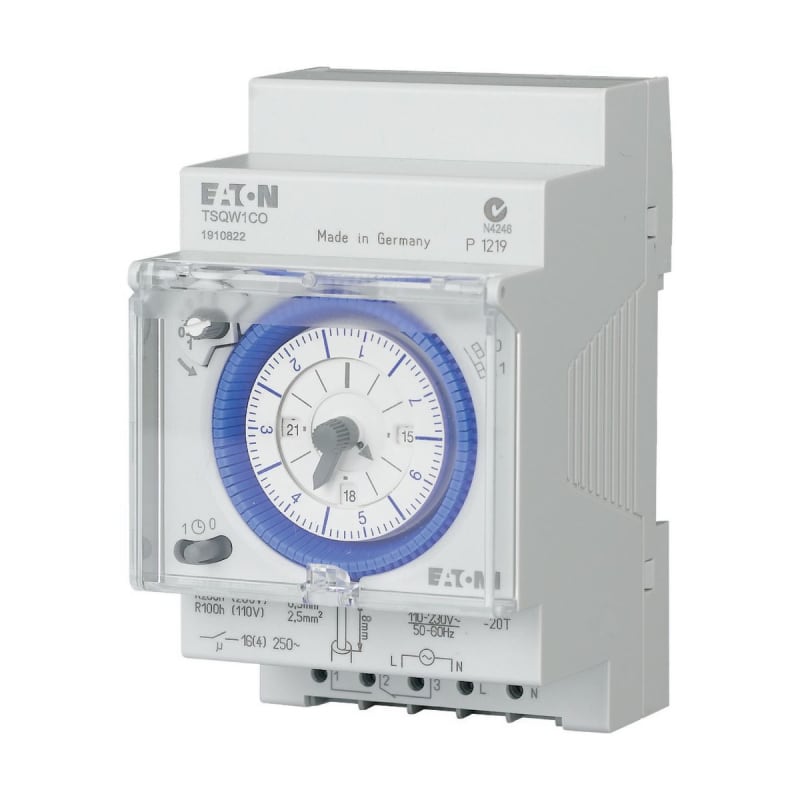

Quartz ukesur 1 channel
Part numberTSQW1COEAN / GTIN4015081638901HS code8536.90
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton TSQW1CO Series connection time switch 7 days, series connection time switch, autonomy, 3 TLE.
Technical Specifications
- Manufacturer part number (MPN)
- TSQW1CO
- EAN / GTIN
- 4015081638901
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 167392
- Depth
- 65.6 mm
- Height
- 90 mm
- Width
- 54 mm
- Weight
- 0.121 kg
- Compliances
- RoHS conform
- Mounting method
- DIN rail
- Equipment heat dissipation, current-dependent
- 0 W
- Number of channels
- 1
- Accuracy per day
- 1 s
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -20 °C
- Autonomy in hours
- 200 hour
- Autonomy in years
- 0 year
- Frequency supply voltage - max
- 60 Hz
- Frequency supply voltage - min
- 45 Hz
- Heat dissipation capacity
- 0 W
- Heat dissipation per pole, current-dependent
- 0 W
- Nominal switching current at 250 V AC
- 16 A
- Contact type
- Change-over contact
- Degree of protection
- IP20
- Functions
- Quartz controlled; Manual operation; Potential free switch contact; Weekly program; Switching preselection
- Voltage type
- AC
- Shortest switching time at channel 1
- 120 min
- Shortest switching time at channel 2
- 0 min
- Program shift divide 1
- 120 min
- Rated operational current for specified heat dissipation (In)
- 0 A
- Switching power LED - max
- 600 W
- Static heat dissipation, non-current-dependent
- 0.5 W
- Supply voltage - max
- 230 V
- Supply voltage - min
- 110 V
- Width in number of modular spacings
- 3
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081638901
- SAP 1200237635
- Code 82210745
Product Documentation
Document preview: Quartz ukesur 1 channel (TSQW1CO) — Specification Data Sheet (OEM)
