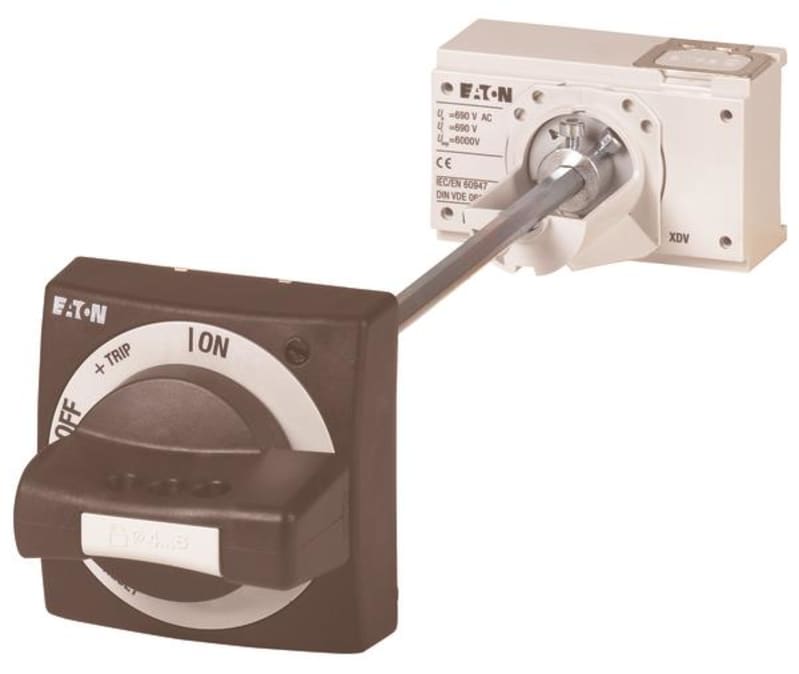

Eaton NZM2-XHB
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton NZM2-XHB is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 266627; Depth: 190 mm; Height: 110 mm; Width: 110 mm; Weight: 0.906 kg.
Technical Specifications
- Manufacturer part number (MPN)
- NZM2-XHB
- EAN / GTIN
- 4015082666279
- Sales unit
- pcs
- Eaton catalogue number
- 266627
- Depth
- 190 mm
- Height
- 110 mm
- Width
- 110 mm
- Weight
- 0.906 kg
- Compliances
- UL/CSA; IEC; RoHS conform
- Certifications
- UL (Category Control Number DIHS); CSA-C22.2 No. 5-09; UL489; CE marking; UL listed; CSA (File No. 22086); CSA (Class No. 1437-01); UL (File No. E140305); CSA certified; IEC60947
- Features
- With black door coupling rotary handle; Lockable
- Fitted with
- NZM...-XV4 extension shaft; Door coupling rotary handle with rotary drive; Black and yellow lightning symbol; Extension shaft; External warning plate/marking plate in German/English; Padlock
- Frame
- NZM2
- Special features
- External warning plate/designation label can be clipped on. For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger. Kit for use as a main switch
- Suitable for
- Switch disconnector; Power circuit breaker
- Type
- Main switch assembly kit
- Used with
- NZM2(-4); PN2(-4); N(S)2(-4)
- Color
- Black
- Degree of protection / NEMA enclosure type
- IP66; 4X. 12
- Locking facility
- Lockable on the 0 position on the handle using up to 3 padlocks; With door interlock; Can also be modified in I position
- Colour
- Black
- Lockable
- Yes
- Padlock locking
- Yes
- Suitable for emergency stop
- No
- With extension shaft
- Yes
- With restart blockage
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- Yes
- Degree of protection (NEMA)
- 4X, 12
- With key lock
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082666279
- SAP 1000289371
- Code 81159377
