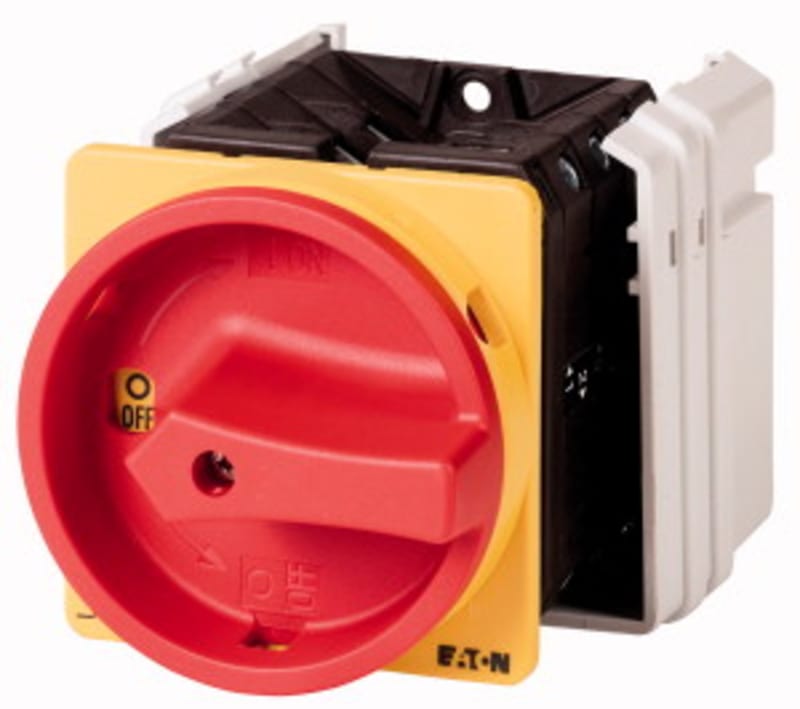

Safety Switch (T5-3-8342/EA/SVB)

Eaton Safety Switch (T5-3-8342/EA/SVB) is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Eaton catalogue number: 096383; Depth: 156 mm; Height: 88 mm; Width: 88 mm; Weight: 0.74 kg.

Manufacturer part number (MPN)

T5-3-8342/EA/SVB

EAN / GTIN

4015080963837

Sales unit

pcs

Eaton catalogue number

096383

Depth

156 mm

Height

88 mm

Width

88 mm

Weight

0.74 kg

Certifications

IEC/EN 60947-3; IEC/EN 60947; VDE 0660; IEC/EN 60204

Catalog Notes

Rated Short-time Withstand Current (Icw) for a time of 1 second

Actuator color

Red

Actuator type

Door coupling rotary drive

Ambient operating temperature - max

50 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Control circuit reliability

1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Heat dissipation per pole, current-dependent Pvid

7.5 W

Rated operational current for specified heat dissipation (In)

100 A

Rated breaking capacity at 220/230 V (cos phi to IEC 60947-3)

760 A

Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)

740 A

Rated breaking capacity at 500 V (cos phi to IEC 60947-3)

590 A

Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3)

420 A

Rated operational current (Ie) at AC-21, 440 V

100 A

Rated operational current (Ie) at AC-23A, 230 V

100 A

Rated operational current (Ie) at AC-23A, 400 V, 415 V

100 A

Rated operational current (Ie) at AC-23A, 500 V

55 A

Rated operational current (Ie) at AC-23A, 690 V

32 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

71 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

55 A

Rated operational current (Ie) at AC-3, 500 V

44 A

Rated operational current (Ie) at AC-3, 660 V, 690 V

17 A

Rated operational current (Ie) star-delta at AC-3, 220/230 V

100 A

Rated operational current (Ie) star-delta at AC-3, 380/400 V

95.3 A

Rated operational current (Ie) star-delta at AC-3, 500 V

76.2 A

Rated operational current (Ie) star-delta at AC-3, 690 V

29.4 A

Rated operational power at AC-23A, 220/230 V, 50 Hz

30 kW

Rated operational power at AC-23A, 400 V, 50 Hz

55 kW

Rated operational power at AC-23A, 500 V, 50 Hz

37 kW

Rated operational power at AC-23A, 690 V, 50 Hz

30 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

30 kW

Rated operational power at AC-3, 415 V, 50 Hz

30 kW

Rated operational power at AC-3, 500 V, 50 Hz

30 kW

Rated operational power at AC-3, 690 V, 50 Hz

15 kW

Rated operational power star-delta at 220/230 V, 50 Hz

30 kW

Rated operational power star-delta at 380/400 V, 50 Hz

45 kW

Rated operational power star-delta at 500 V, 50 Hz

45 kW

Rated operational power star-delta at 690 V, 50 Hz

22 kW

Rated operational voltage (Ue) at AC - max

690 V

Rated uninterrupted current (Iu)

100 A

Uninterrupted current

Rated uninterrupted current Iu is specified for max. cross-section.

Features

Version as emergency stop installation; Version as main switch; Version as maintenance-/service switch

Fitted with

Red rotary handle and yellow locking ring

Functions

Emergency switching off function; Interlockable

Locking facility

Lockable in the 0 (Off) position

Number of poles

6

Degree of protection

NEMA 12

Degree of protection (front side)

IP65

Lifespan, mechanical

500,000 Operations

Mounting method

Flush mounting

Mounting position

As required

Number of contact units

3

Operating frequency

1200 Operations/h

Overvoltage category

III

Pollution degree

3

Product Category

Main switch

Rated impulse withstand voltage (Uimp)

6000 V AC

Safe isolation

440 V AC, Between the contacts, According to EN 61140

Safety parameter (EN ISO 13849-1)

B10d values as per EN ISO 13849-1, table C.1

Shock resistance

15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms

Suitable for

Front mounting center

Switching angle

90 °

Rated conditional short-circuit current (Iq)

2 kA

Rated short-time withstand current (Icw)

1.7 kA; 1,7 kA, Contacts, 1 second

Short-circuit protection rating

100 A gG/gL, Fuse, Contacts

Load rating

1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor); 2 x Iₑ (with intermittent operation class 12, 25 % duty factor); 1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor)

Rated making capacity up to 690 V (cos phi to IEC/EN 60947-3)

950 A

Switching capacity (main contacts, general use)

63 A, Rated uninterrupted current max. (UL/CSA)

Voltage per contact pair in series

60 V

Screw size

M6, Terminal screw

Terminal capacity

1 x (2.5 - 35) mm², solid or stranded; 1 x (1 - 25) mm², flexible with ferrules to DIN 46228; 2 x (1.5 - 10) mm², flexible with ferrule to DIN 46228; 2 x (2.5 - 16) mm², solid or stranded

Tightening torque

35.4 lb-in, Screw terminals; 4 Nm, Screw terminals

Country of origin

United Kingdom

HS Code

8536.50
